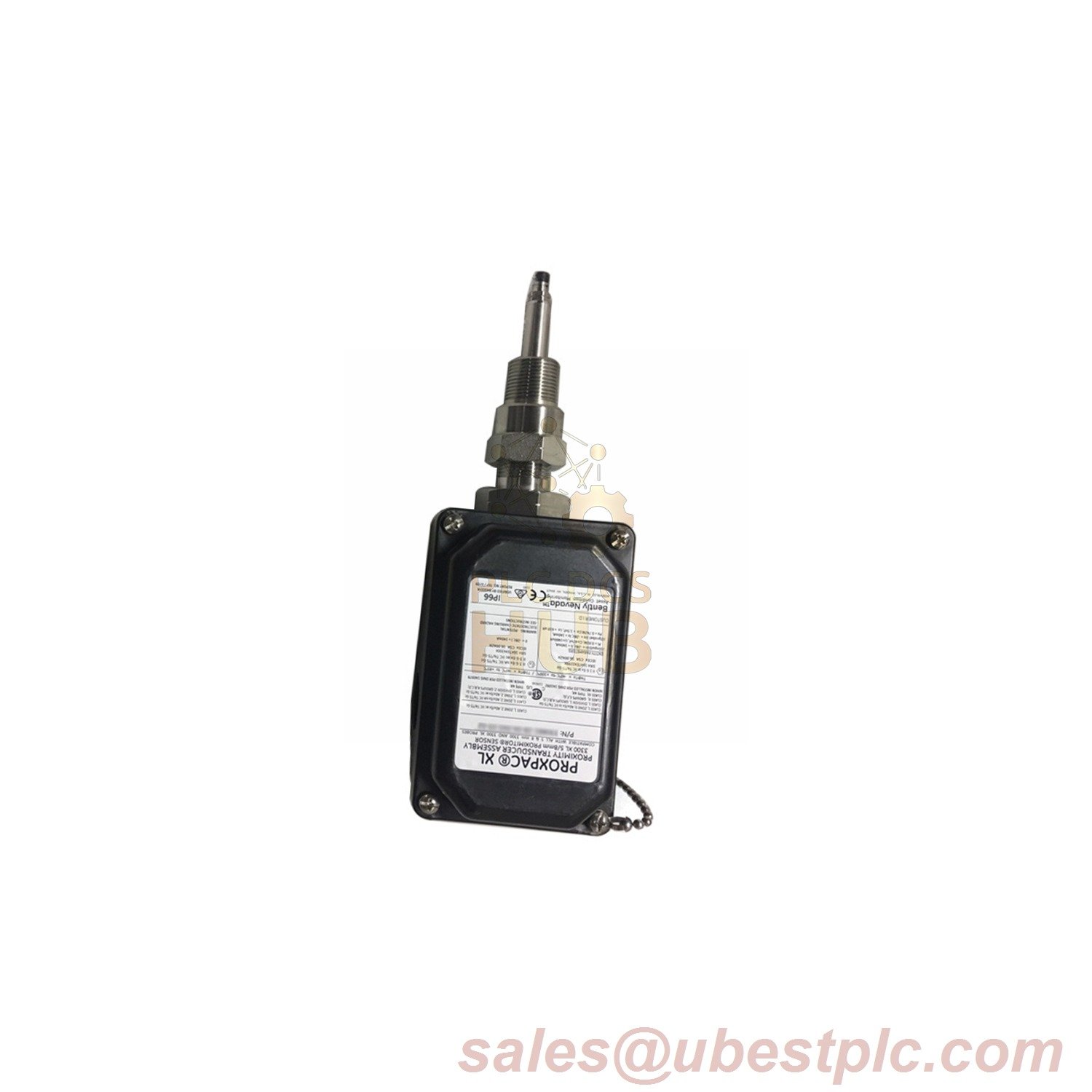

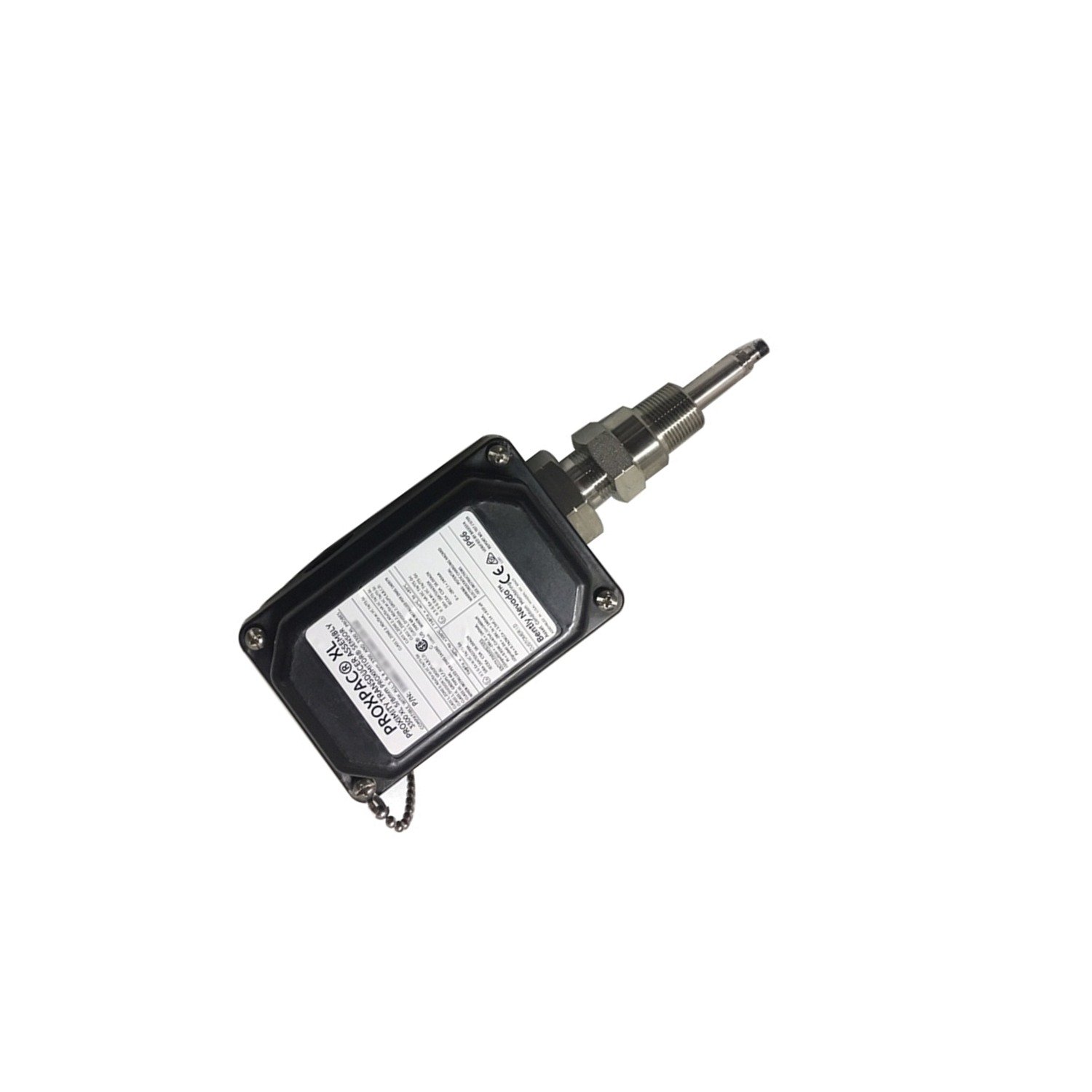

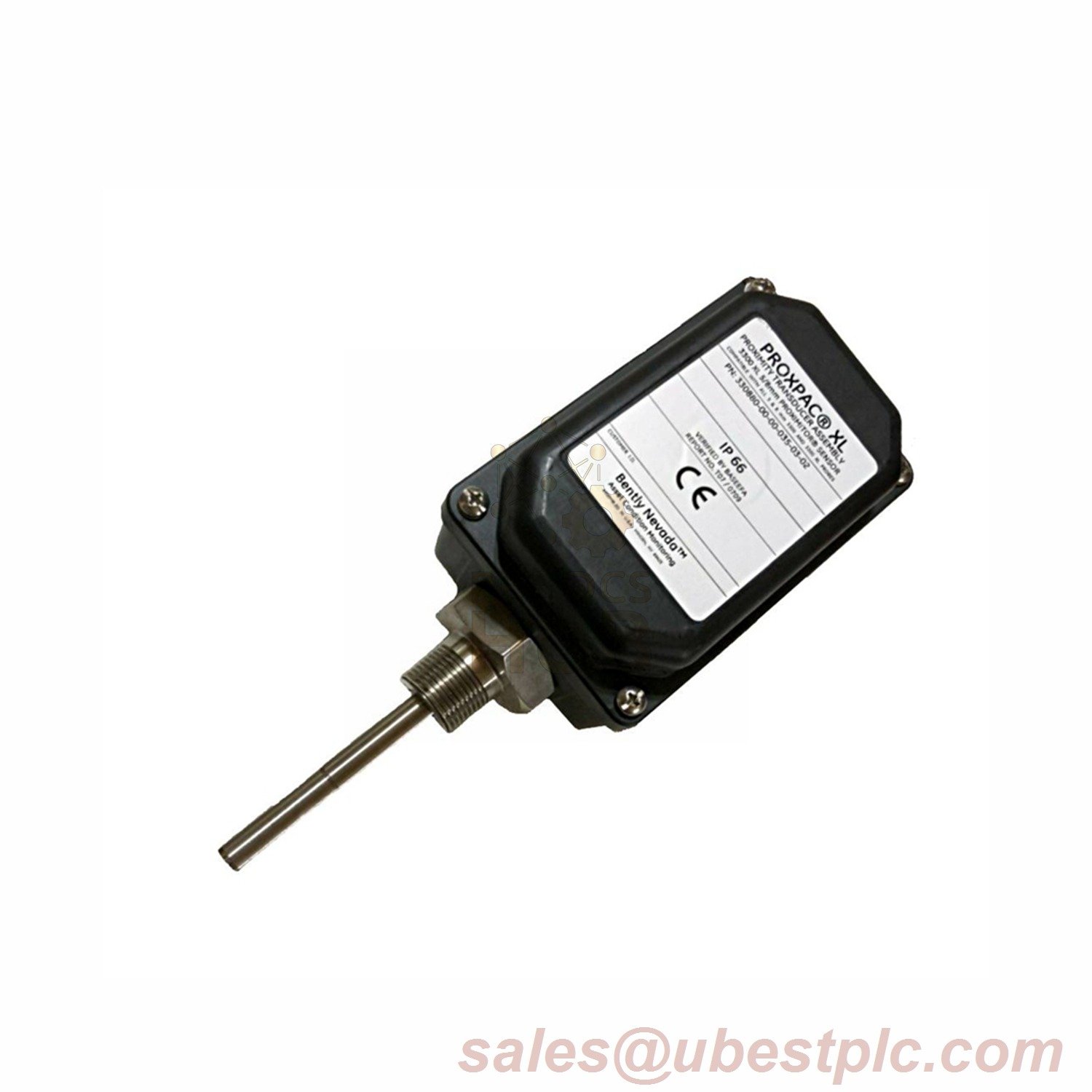

The 330881-28-05-090-00-02 combines a 50 mm standoff adapter with 90 mm probe penetration, optimized for mid-range industrial monitoring. Featuring IP66/BASEEFA certification and 3/4-14 NPT mounting, this transducer operates in -51°C to +177°C extremes. Includes no conduit fittings, ideal for custom installations. Made in USA, COO available.
- Minimalist Design: No pre-installed fittings (00 suffix) for flexible integration.
- Deep Penetration: 90 mm probe reach for thick-walled machinery.
- Material Durability: UV-resistant PPS housing + 304 stainless steel sleeve.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330881-28-05-090-00-02 |
| Suffix Codes | 28: 8 mm multi-certified probe 05: 50 mm standoff adapter 090: 90 mm penetration 00: No fittings 02: 3/4-14 NPT thread |
| Thermal Stability | -34°C to +177°C pressure seal limit |
| Cable Specs | 1m FEP triaxial, 75Ω impedance |
| Impact Resistance | 4 J @ -39°C, 7 J @ ambient |
