Description

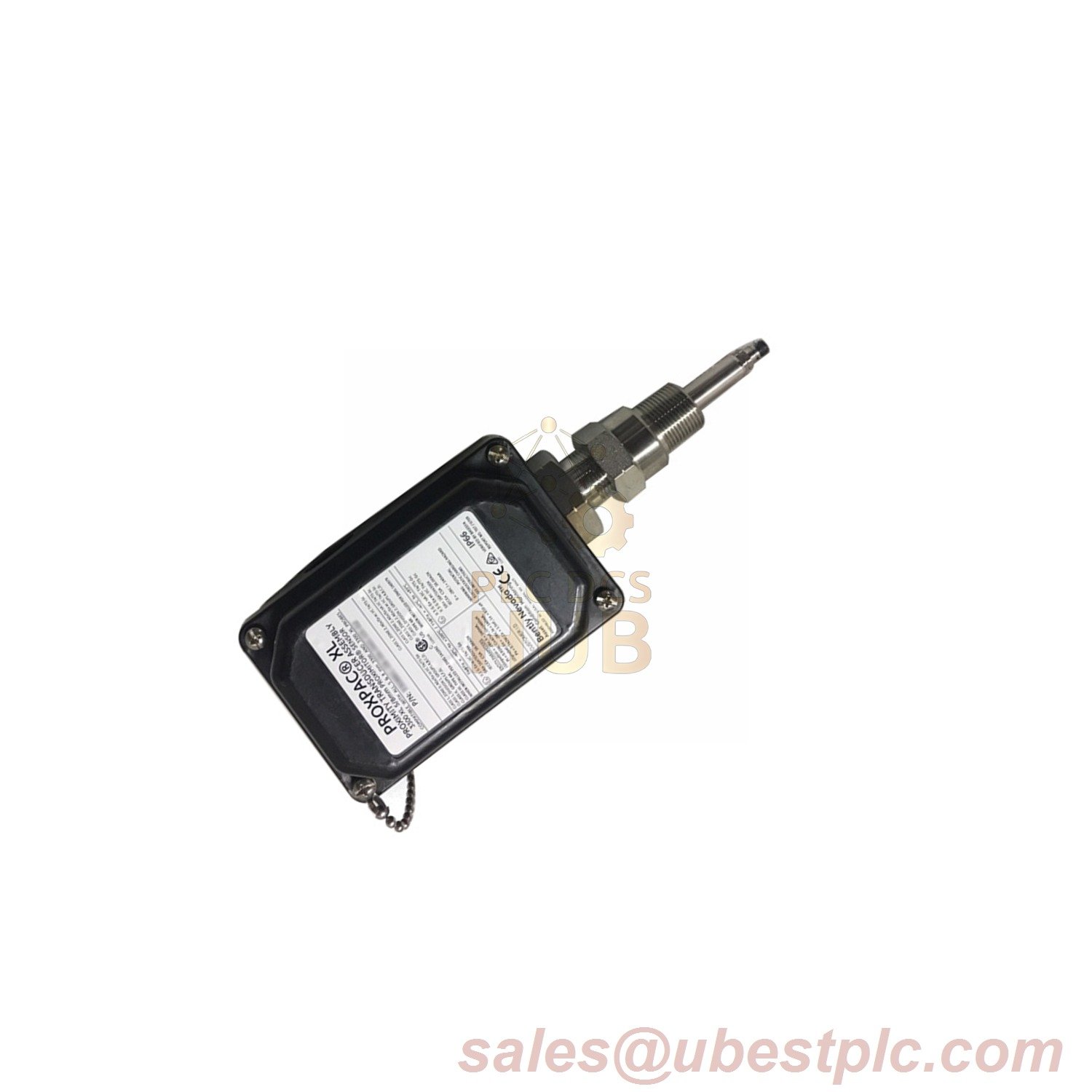

Bently Nevada PROXPAC XL Proximity Transducer
Designed for high-stability industrial applications, the Bently Nevada 330881-28-06-105-00-02 combines a 105mm penetration probe with 60mm standoff adapter for precise alignment. Featuring IP66-rated housing, UV-resistant PPS construction, and CSA-certified impact resistance, this transducer ensures reliable performance in extreme temperatures (-51°C to +177°C) and high-vibration environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330881-28-06-105-00-02 (Suffix: 28=8mm Probe, 06=60mm Adapter, 105=105mm Penetration, 00=No Fittings) |
| Electrical Insulation | 75Ω Triaxial FEP Cable with Gold ClickLoc® |
| Mechanical Integrity | 912 N (205 lbf) Axial Load Capacity |
| Environmental Sealing | Neoprene O-Ring + Conductive PPS Housing |
| Compliance | BASEEFA T07/0709, CSA 7J Impact Tested |
| Target Requirements | Ø15.2mm Flat Surface / Ø50.8mm Shaft |
Key Advantages
- Vibration-damping silicone isolation for signal accuracy
- 3/4-14 NPT mounting with dual stainless steel plugs
- ±5% incremental scale factor across 0°C to +45°C
- Ultra-wide frequency response (0–10 kHz ±3 dB)
