Description

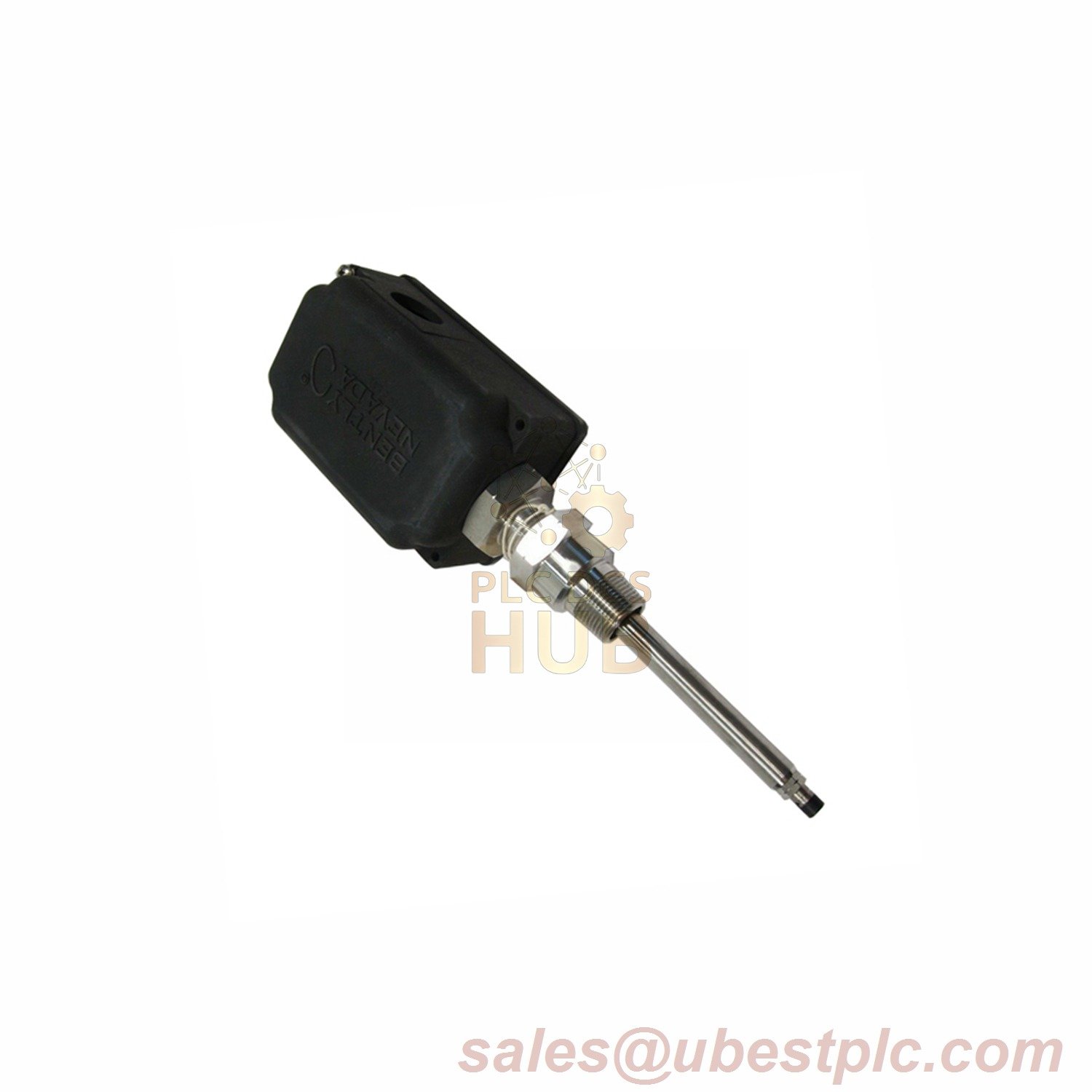

Bently Nevada PROXPAC XL Proximity Transducer
Designed for high-precision industrial monitoring, the Bently Nevada 330881-28-06-145-00-02 PROXPAC XL combines IP66-rated durability with multi-certified 8 mm proximity sensing. Featuring a 145mm penetration probe, 3/4-14 NPT mounting, and ultra-wide temperature tolerance, this transducer ensures reliable performance in harsh environments. Includes BASEEFA-certified impact resistance and IEC-compliant humidity stability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330881-28-06-145-00-02 (Suffix: 28=8mm Probe, 06=60mm Adapter, 145=145mm Penetration, 02=3/4-14 NPT) |
| Housing Rating | IP66 (BASEEFA T07/0709) |
| Probe Material | AISI 304 Stainless Steel / PPS Tip |
| Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Torque Settings | Retaining Nut: 29.5 N·m / Sleeve Locknut: 39.3 N·m |
| Frequency Response | 0–10 kHz (±3 dB) |
| Impact Resistance | 7 Joules (BASEEFA/CSA Certified) |
Key Features
- Triaxial FEP-insulated cable with ClickLoc® connector
- 330 N (75 lbf) tensile strength at probe-cable junction
- UV-resistant PPS housing with conductive fiber reinforcement
- Meets IEC 68-2-3 humidity standards (<3% ASF drift)
Contact: For certification or customization, email sales@ubestplc.com.
