Description
Description

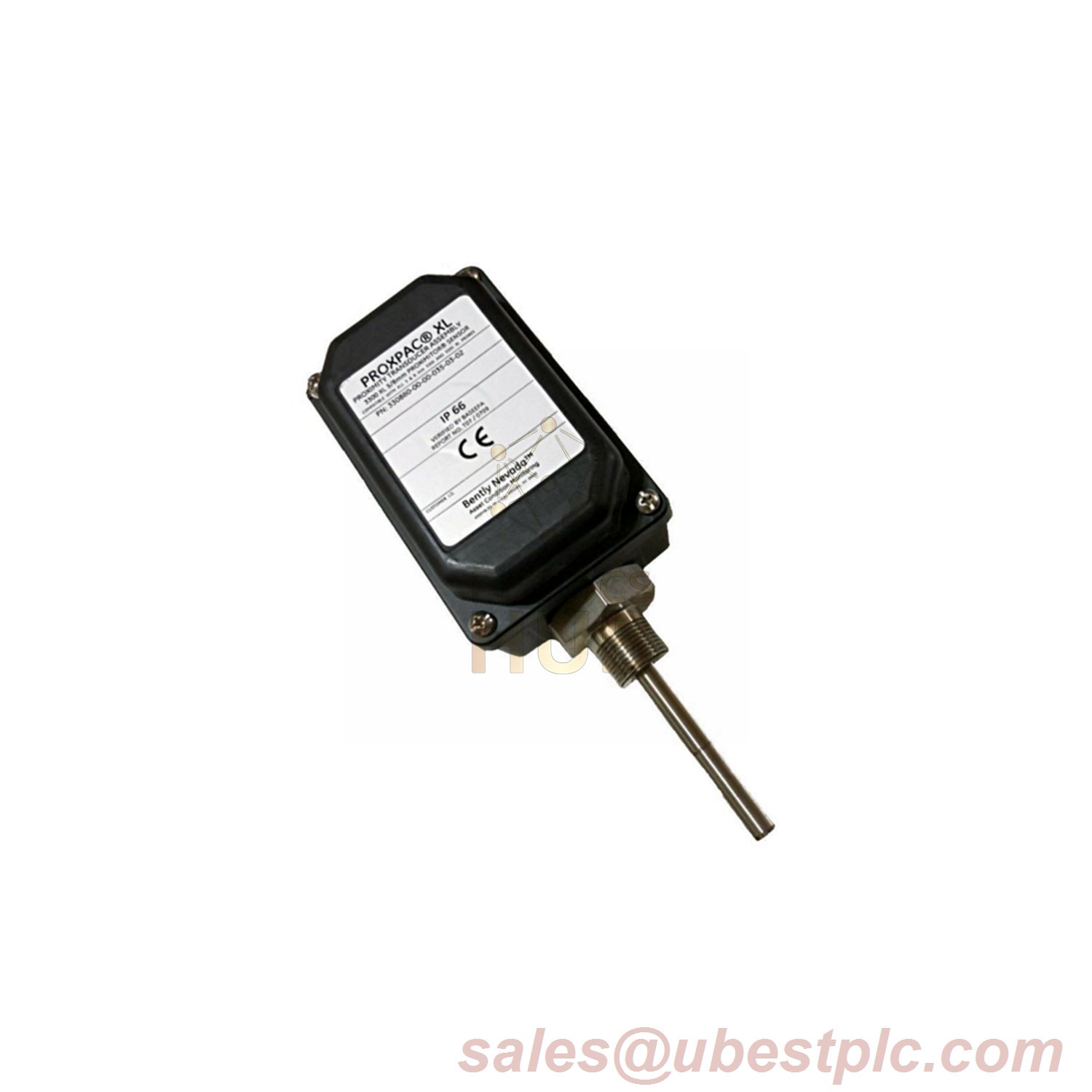

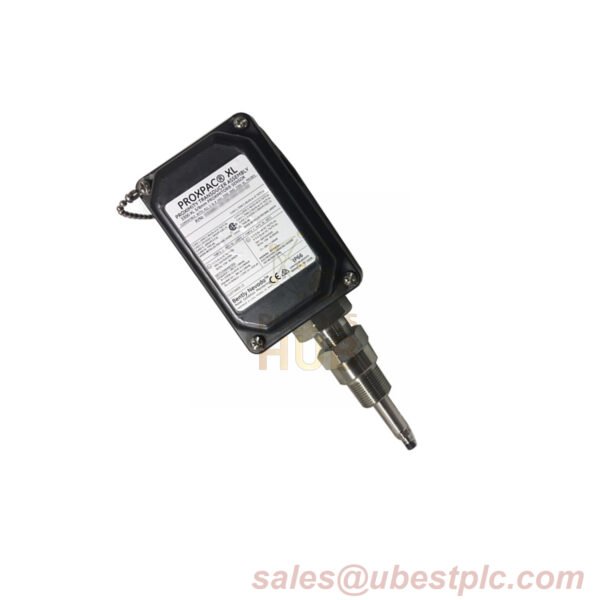

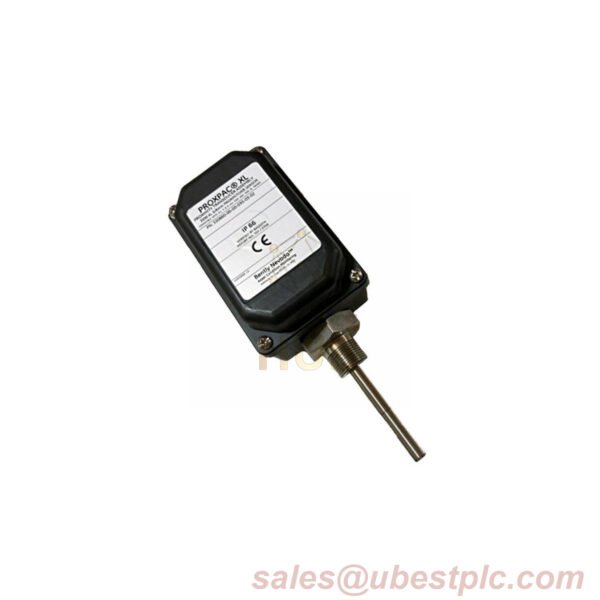

The Bently Nevada 330881-28-10-087-03-02 PROXPAC XL Proximity Transducer is a high-precision industrial sensor manufactured in the U.S.A. Equipped with a 3300 XL 8 mm probe featuring multiple hazardous area approvals, this unit includes a 100 mm standoff adapter and 87 mm (3.43 in) penetration depth. Built with UV-resistant PPS housing and AISI 304 stainless steel components, it meets IP66 and BASEEFA certifications. COO available upon request.
Technical Data
- Manufacturer: Bently Nevada
- Model: 330881-28-10-087-03-02
- Suffix Configuration:
- A (Probe): 28 – 3300 XL 8 mm (multiple approvals)
- B (Standoff): 10 – 100 mm (3.94 in)
- C (Penetration): 087 – 87 mm (3.43 in)
- D (Fittings): 03 – One M20 fitting + two plugs
- E (Mounting): 02 – 3/4-14 NPT threads
- Weight: 1.44 kg (3.2 lb)
- Key Materials:
- Housing: Glass-reinforced PPS with conductive fibers
- Probe Tip: Polyphenylene Sulfide (PPS)
- Sleeve: AISI 304 stainless steel
- Electrical Performance:
- Voltage Range: -17.5 Vdc to -26 Vdc
- Linear Output: 7.87 V/mm ±5%
- Frequency Response: 0-10 kHz (±3 dB)
- Environmental Ratings:
- Operating Temp: -51°C to +177°C (-60°F to +350°F)
- Impact Resistance: 7 Joules (9.5 ft·lb) at ambient
