330903-00-03-05-01-00 Bently Nevada 3300 NSv Proximity Probe

Description

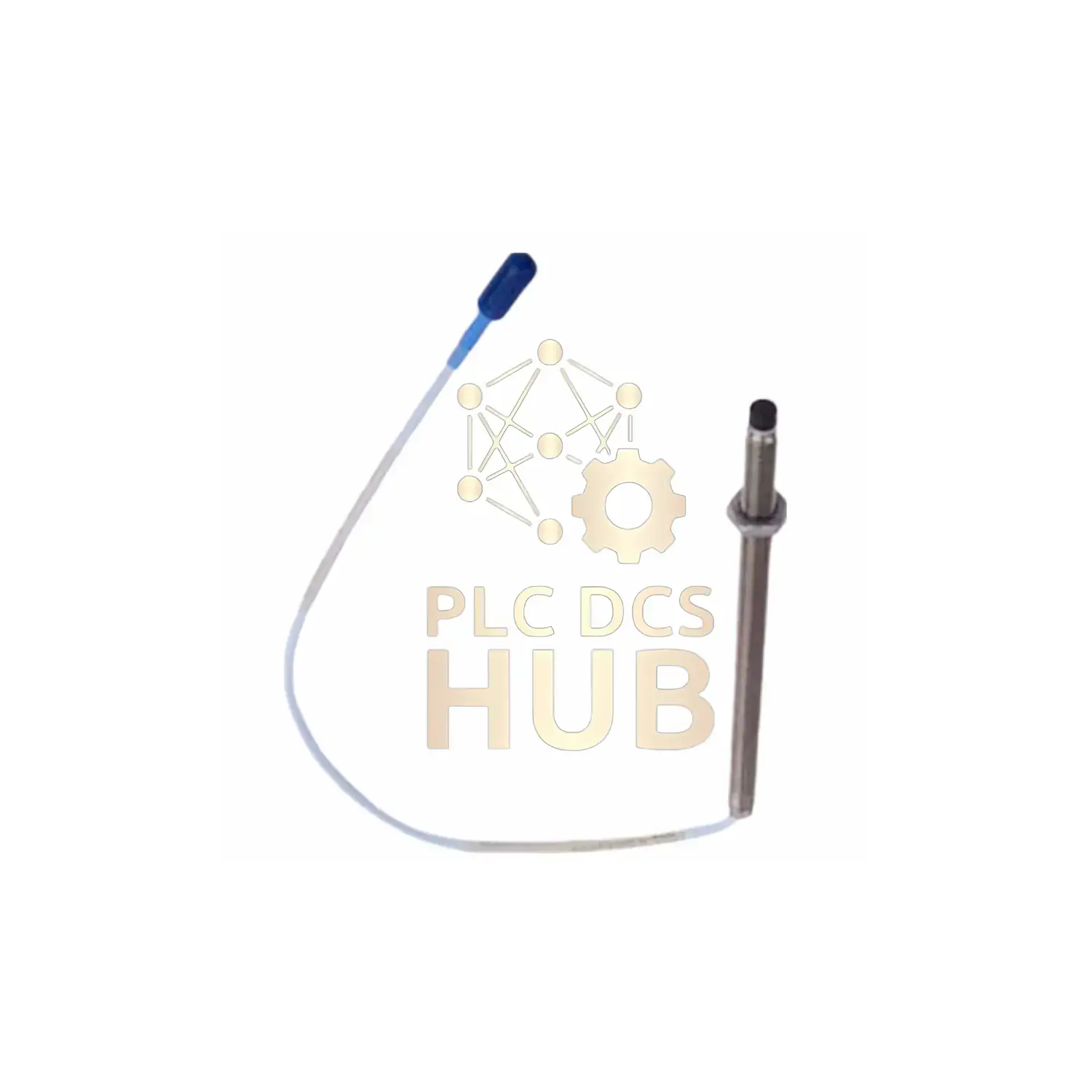

Bently Nevada 330903-00-03-05-01-00: Ultra-Compact Vibration Probe

30mm case proximity sensor for space-critical installations. New original unit with chemical-resistant PPS tip and full factory warranty.

PRODUCT CONFIGURATION

• Model Core : 330903 (NSv Probe, M8X1 thread)
• Unthreaded Length : -00- (00 mm)
• Case Length : -03- (30 mm ultra-compact)
• Cable Length : -05- (0.5 meter/20 in)
• Connection : -01- (ClickLoc coaxial)
• Certification : -00- (Standard industrial)

ADVANCED SPECIFICATIONS

• Mechanical Design
  • Case Length: 30mm (shortest available)
  • Thread Engagement: Max 12mm for M8X1
  • Weight: 42g (lightest in series)
  • Bend Radius: 25.4mm rigid design
• Electrical Performance
  • Probe Resistance: 4.0Ω ±0.5Ω @0.5m
  • Shield Resistance: 0.066 Ω/m
  • Capacitance Stability: ±2% over temperature
  • Noise Immunity: >60dB @1kHz
• Environmental Ratings
  • Thermal Cycling: 500+ cycles (-52°C to +177°C)
  • Vibration Resistance: 20g @ 2kHz
  • Chemical Resistance: IP67 equivalent when sealed

INSTALLATION GUIDE

• Mounting Clearance: Requires only 30mm axial space
• Torque Sequence:
  1. Hand-tighten until seated
  2. Final torque: 5.1 N•m (45 in•lb)
• Gap Calibration: 1.0mm optimal (use factory shim kit)
• Sealing Note: Viton O-ring requires clean mating surface

PACKAGE CONTENTS

• 330903-00-03-05-01-00 probe assembly
• ClickLoc connector protector cap
• Installation torque guide

SUPPORT & DELIVERY

• Warranty: 12-month coverage against defects
• Shipping: FedEx/UPS/DHL (1-3 business days)
• Certifications: RoHS compliant

ENGINEERING FAQ

Q: What clearance is needed behind mounting point?
A: Minimum 35mm for connector clearance.

Q: Can I use this in high-vibration areas?
A: Yes, rated for 20g vibration at 2kHz.

Q: Is calibration different for short-case probes?
A: Same calibration procedure as standard length probes.

Q: What’s the minimum shaft diameter?
A: 8.9mm absolute minimum, 13mm recommended.

Q: Can I retrofit this in old 3300 RAM systems?
A: Yes, direct electrical and mechanical replacement.
