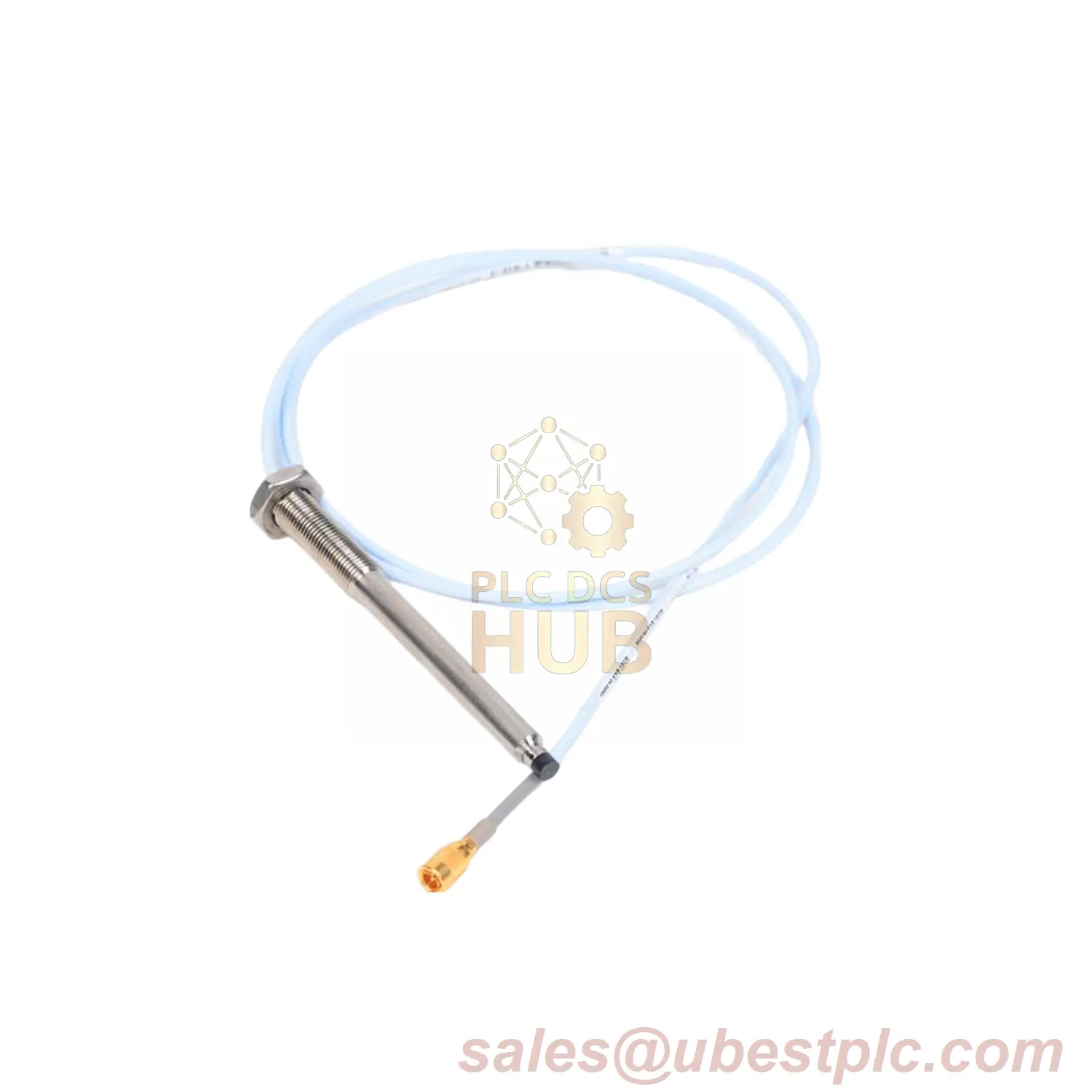

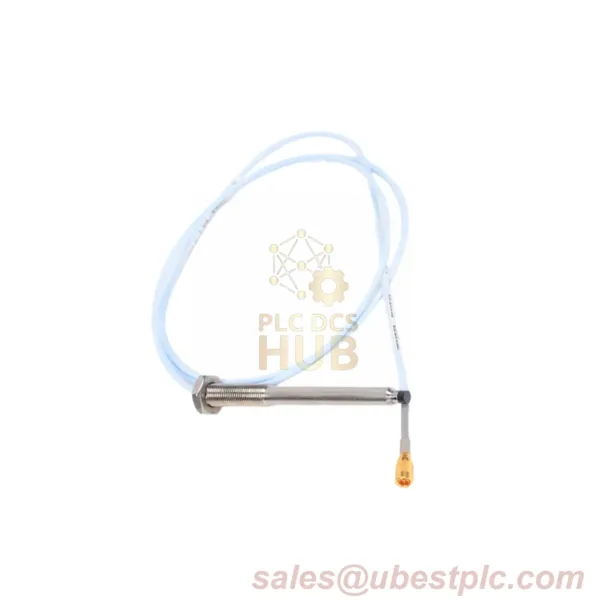

330903-00-05-10-11-05 Bently Nevada 3300 NSv Proximity Probes

Description

Bently Nevada 3300 NSv Proximity Probe – Advanced Sensing Solution

Essential Details

New factory-sealed 330903-00-05-10-11-05 probe with 12-month warranty. Features M8X1 thread, connector protector, and 1.0m FluidLoc cable. Ships worldwide via FedEx, UPS, DHL.

Core Specifications

• Brand: Bently Nevada
• Full Model: 330903-00-05-10-11-05
• Range: 1.5mm (60 mils)
• Accuracy: ±0.06mm (±2.3 mils)
• Output: -1V to -13V DC
• Temp Range: -52°C to +177°C
• Cable: 75Ω coaxial FEP

Key Upgrades

• Connector protector for extra safety
• 30% better chemical resistance than RAM probes
• Improved side-view performance
• Faster response time: 0-10 kHz

Installation Guide

• Gap setting: 1.0mm (40 mils)
• Torque: Finger tight (max 5 in•lb)
• Bend radius: >25.4mm (1 inch)
• Thread depth: ≤12mm

Compatibility Info

Works with all 3300 RAM systems. Fits 3300 XL NSv Proximitors. Uses standard 3-conductor shielded cables.

Package Includes

• Probe with 1.0m cable
• Miniature coaxial ClickLoc connector
• Connector protector
• Installation guide
• 12-month warranty card

FAQ

Q: Cable length options?
A: 0.5m, 1m, 5m, 7m available

Q: Minimum target size?
A: 8.9mm (0.35″) absolute minimum

Q: Pressure rating?
A: Viton O-ring seal (contact for testing)

Q: Shipping time?
A: 2-3 days via FedEx/UPS/DHL
