Description

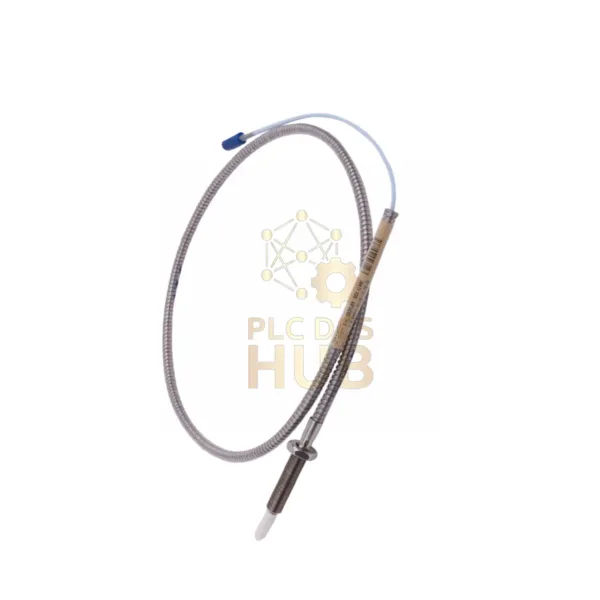

Bently Nevada 3300 NSv Armored Probe with FluidLoc Protection
Brand-new 330904-00-10-05-12-05 armored probe with FluidLoc cable technology. Features 100mm case length and multiple safety certifications. Ships via FedEx/UPS/DHL with 12-month warranty.
Technical Specifications
| Brand | Bently Nevada |
| Full Model | 330904-00-10-05-12-05 |
| Scale Factor | 200 mV/mil ±12.5%/-20% |
| Linearity | ±2.3 mils DSL |
| Response Time | <1 ms |
| Shock Resistance | 100g peak (11ms duration) |
| Cable Type | FEP-insulated FluidLoc |
| Vibration Limit | 20g (10-2000 Hz) |
Part Number Structure
- Base Model
- 330904: Armored probe
- Configuration Options
- -00-: 0mm unthreaded section
- -10-: 100mm case length
- -05-: 0.5m cable
- -12-: ClickLoc + FluidLoc
- -05: Multiple approvals
Model Comparison
| Feature | This Model | 330904-02-20-05-01-00 | 330904-05-14-05-02-05 |
|---|---|---|---|
| Case Length | 100mm | 200mm | 140mm |
| Cable Type | FluidLoc | Standard | Standard |
| Unthreaded Length | 0mm | 20mm | 50mm |
| Connector | ClickLoc | Microdot | ClickLoc |
Installation Notes
- Optimal sensing distance: 1.0mm (0.04 in)
- Max cable bend: 25.4mm radius
- Mounting torque: 5.1 N•m (45 in-lb)
- Min. target size: Ø13mm
Package & Support
- Factory-sealed with original packaging
- 12-month manufacturer warranty
- Global shipping options available
Frequently Asked Questions
Q: What makes FluidLoc cable special?
A: Resists fluids and chemicals better than standard cables
Q: Can this monitor high-speed equipment?
A: Yes, handles up to 10kHz vibration frequencies
Q: Is calibration required?
A: Factory-calibrated with ±0.5Ω resistance tolerance
Q: Suitable for outdoor use?
A: Yes, operates from -52°C to +177°C
