Description

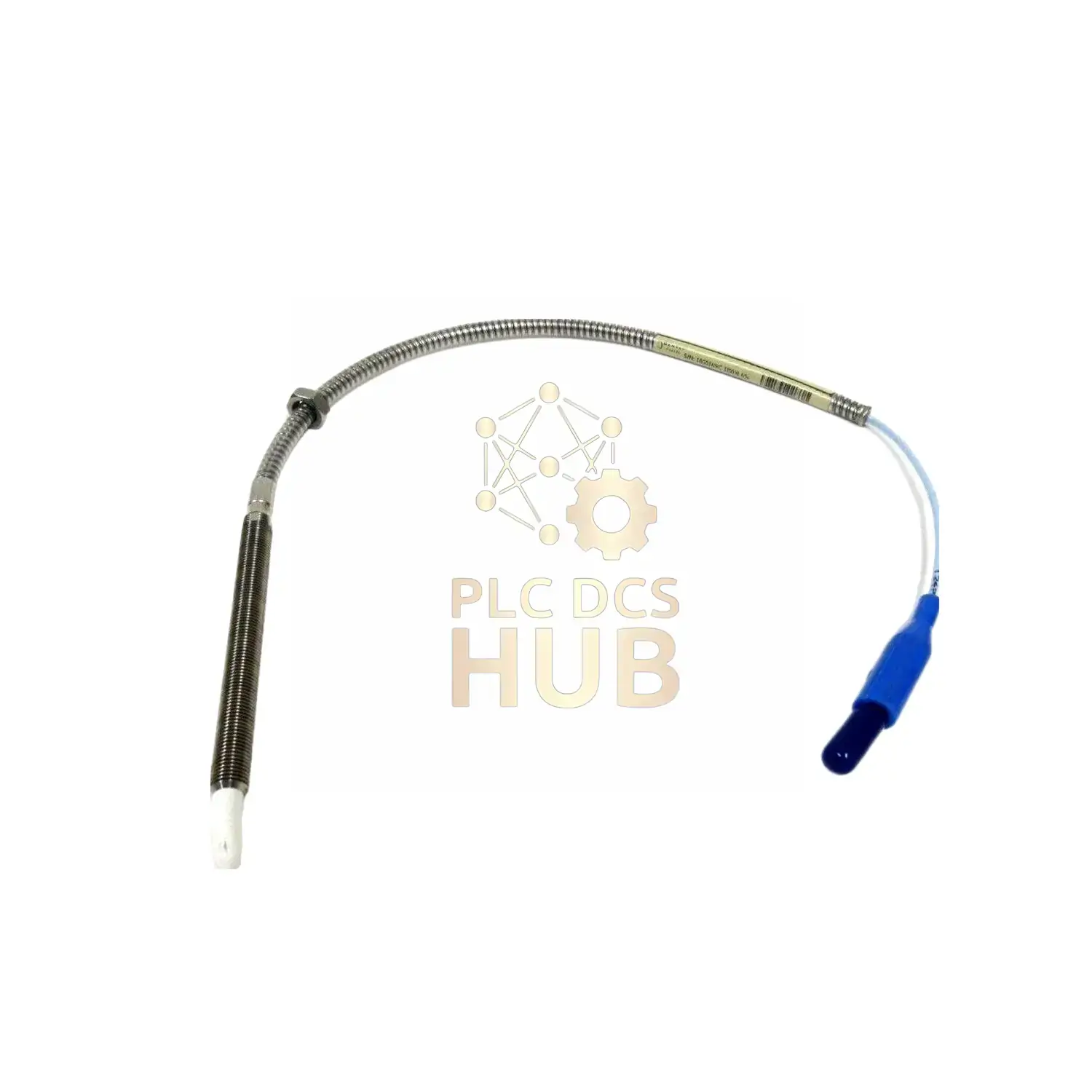

Bently Nevada 3300 NSv Compact Proximity Probe
Core Features
New 330904-00-15-05-01-00 with 0.5m cable. M8X1 threaded probe for tight spaces. Factory sealed with 12-month warranty.
Technical Specifications
- Manufacturer: Bently Nevada
- Resistance: 4.0 Ω ±0.5 Ω
- Frequency Response: 0-10 kHz (±3dB)
- Cable Type: Standard FEP coaxial
- Min Target Size: 8.9 mm diameter
- Scale Factor: 7.87 V/mm ±20%
Model Suffix Explained
- 330904 – Base probe model
- 00 – Unthreaded length: 00 mm
- 15 – Case length: 150 mm
- 05 – Cable length: 0.5 meter
- 01 – ClickLoc connector
- 00 – No agency approvals needed
Key Performance Metrics
- Linear Range: 1.5 mm (60 mils)
- Accuracy: ±0.06 mm (±2.3 mils)
- Bend Radius: 25.4 mm (1.0 in)
- Temp Range: -52°C to +177°C
- Seal Material: Viton O-ring
Installation Tips
- Optimal gap: 1.0 mm (40 mils)
- Mounting torque: 5.1 N•m max
- Thread engagement: 12 mm minimum
- Cable protection needed in harsh areas
Compatibility
Fits all 3300 XL NSv systems. Works with legacy 3300 RAM monitors.
Package Contents
- Factory-sealed probe
- Connector protector
- 12-month warranty
Shipping Options
Global delivery via FedEx, UPS, DHL. Tracking included.
Professional FAQs
- Q: Why choose 0.5m cable length?
A: Ideal for compact installations with short sensor runs. - Q: Can I use extension cables?
A: Yes – supports up to 305m with shielded triad cable. - Q: Is this probe waterproof?
A: Features Viton seal but not pressure-rated for immersion. - Q: How often should probes be replaced?
A: Typically 3-5 years in normal operating conditions. - Q: What maintenance is required?
A: Annual inspection of cable and connector integrity.
