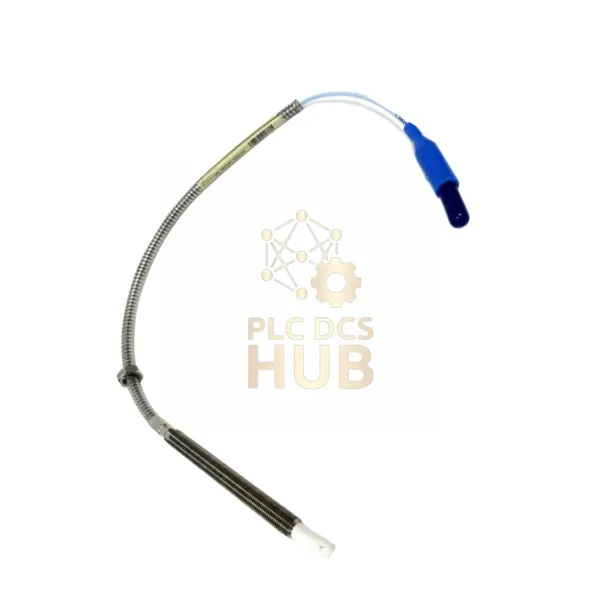

Bently Nevada 3300 NSv Proximity Probe with Multiple Certifications
New factory-sealed industrial sensor with international approvals. Features 1-meter armored cable and superior chemical resistance.
Part Number Configuration
- 330904: Base probe model
- 00: 0mm unthreaded length
- 15: 150mm case length
- 10: 1.0m cable length
- 01: ClickLoc connector
- 05: Multiple agency approvals
Critical Specifications
- Probe resistance: 4.2 Ω ±0.5 Ω
- Linear detection range: 0.25-1.75mm
- Frequency capability: 10 kHz
- Temperature tolerance: -52°C to +177°C
- Cable capacitance: 69.9 pF/m
- Scale factor tolerance: +12.5%/-20%
- Thread torque limit: 5.1 N•m recommended
Mounting Instructions
- Position 1.0mm from target surface
- Apply finger-tight installation force
- Maintain 25.4mm minimum bend radius
- Use 13mm+ diameter shafts for best accuracy
Compatibility Notes
Direct replacement for older 3300 RAM probes. Works with all Bently Nevada 3300 XL NSv monitoring systems.
Global Certifications
Meets multiple international safety standards for hazardous industrial environments.
Package Details
- Factory-sealed proximity probe
- Connector protector
- Original packaging
Warranty & Delivery
12-month warranty. Ships worldwide via FedEx, UPS or DHL.
Technical FAQ
- Q: What certifications does this model include?
A: Multiple international approvals for hazardous locations - Q: Can I use this in high-pressure applications?
A: Features Viton O-ring seals; contact us for pressure testing - Q: How does cable length affect performance?
A: 1m length maintains optimal signal integrity - Q: Is calibration required after installation?
A: Stable ±0.06mm linearity requires minimal recalibration - Q: Compatible with existing connector systems?
A: Works with all ClickLoc-compatible interfaces
Documentation Request
Access installation guides and compliance certificates: Download Technical Files
