330904-00-15-10-12-05 Bently Nevada 3300 NSv Probe Buy Now

Description

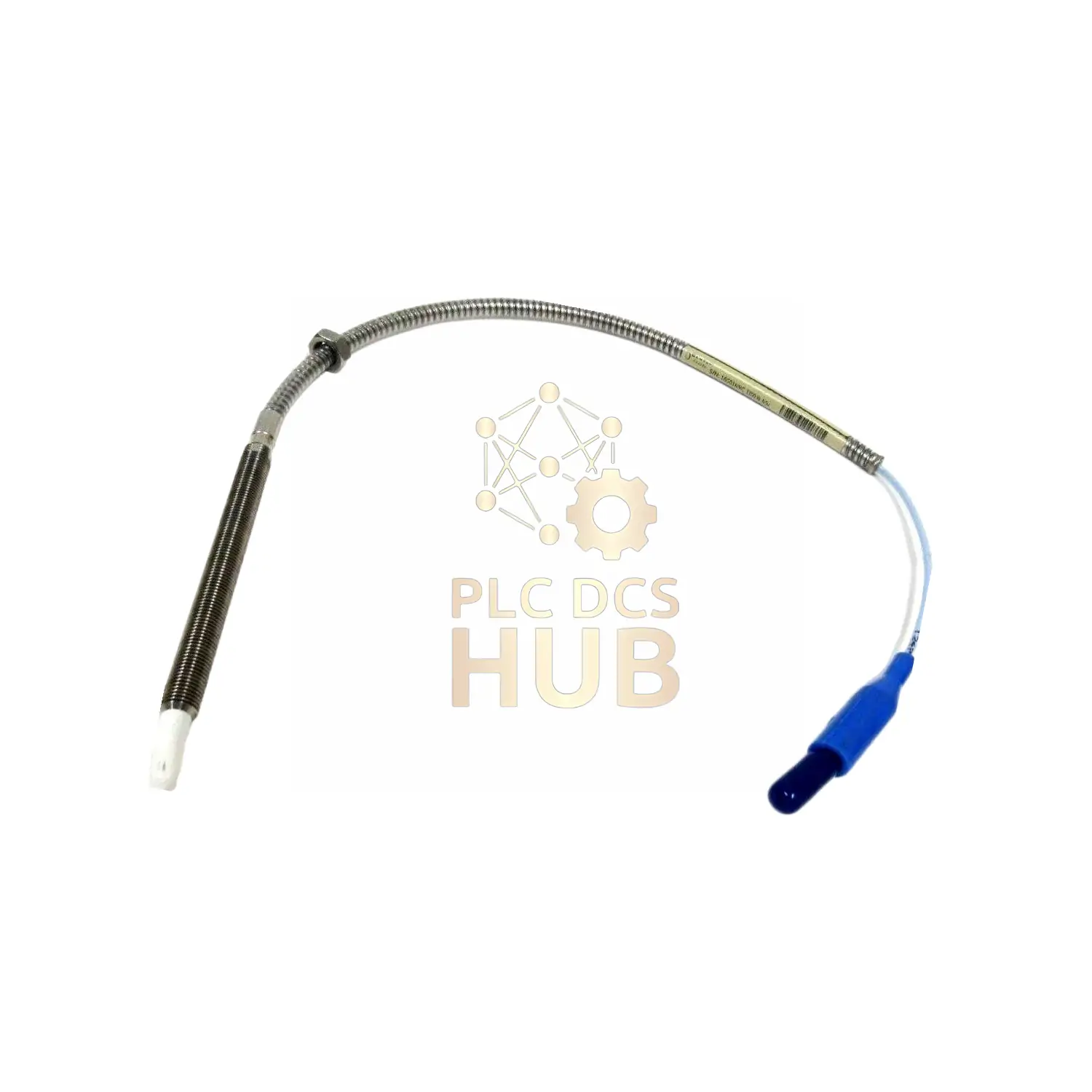

Bently Nevada 3300 NSv Probe: Waterproof Precision

New factory-sealed sensor with 1-year warranty. Ships worldwide via FedEx/UPS/DHL. FluidLoc® cable for wet environments.

Part Number Details

• Full ID: 330904-00-15-10-12-05
• Feature Guide:
  • 00: No unthreaded section
  • 15: 150mm long case
  • 10: 1.0 meter cable
  • 12: FluidLoc® waterproof
  • 05: Multiple safety approvals

Key Measurements

• Cable Type: Waterproof FluidLoc®
• Length: 1.0m (39 inches)
• Resistance: 4.2Ω ±0.5Ω
• Accuracy: ±0.06mm max error
• Response: 0-10,000 Hz range
• Temp Range: -52°C to +177°C

Installation Guide

• Set 1.0mm gap from target
• Hand tighten plus ¼ turn
• Keep bends over 25.4mm
• Seal connector in wet areas

Included Items

• Probe with 1m FluidLoc® cable
• ClickLoc connector
• Waterproof seals
• 12-month warranty

Expert Answers

• Q: What does FluidLoc® protect against?
  A: Water, oils, and chemical splashes
• Q: Approval for hazardous areas?
  A: Yes – multiple certifications (suffix -05)
• Q: Minimum shaft size?
  A: 8.9mm diameter (13mm recommended)
• Q: Cable replacement possible?
  A: No – sealed unit, cutting voids warranty
• Q: Saltwater corrosion resistance?
  A: Yes – stainless steel and PPS materials

Waterproofing Guide:
Download FluidLoc® Installation Tips
