330904-00-15-70-01-05 Bently Nevada 3300 NSv Probe

Description

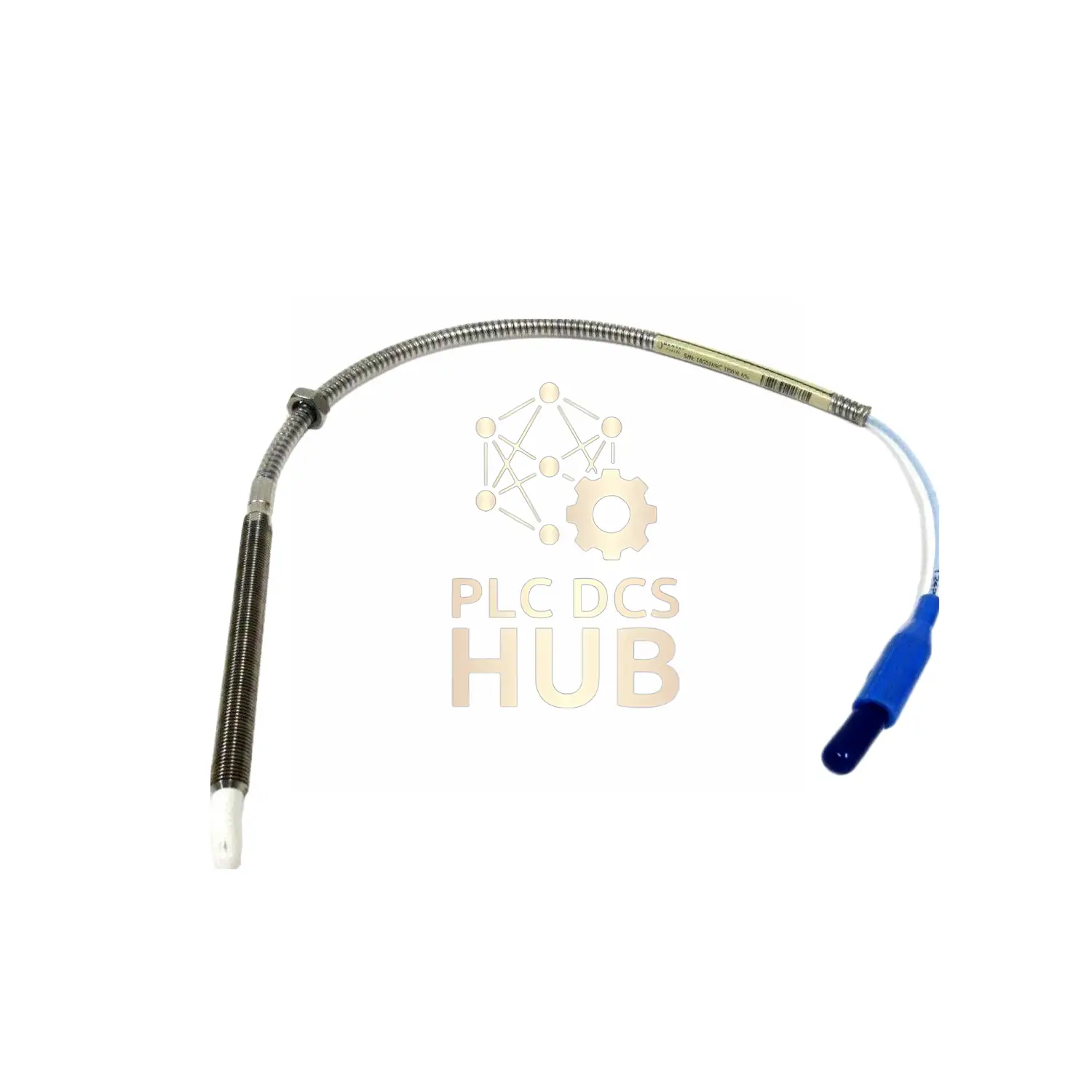

Bently Nevada 3300 NSv Proximity Probe with 7-Meter Cable

New factory-sealed industrial sensor with 12-month warranty. Features M8X1 threading and 7m armored cable for extended reach applications. Ships via FedEx, UPS or DHL.

Complete Suffix Breakdown

• 330904 – Base model
• 00 – Unthreaded length: 00 mm
• 15 – Case length: 150 mm
• 70 – Cable length: 7.0 meters
• 01 – Connector type: Miniature coaxial ClickLoc with protector
• 05 – Agency approvals: Multiple certifications

Technical Specifications

• Manufacturer: Bently Nevada
• Part Number: 330904-00-15-70-01-05
• Measurement Range: 1.5 mm (60 mils)
• Accuracy: Better than ±0.06 mm (±2.3 mils)
• Cable Resistance: 5.9Ω ±0.9Ω (7m length)
• Voltage Output: -1V to -13V DC
• Frequency Response: 0-10 kHz (±3dB)
• Operating Temperature: -52°C to +177°C
• Cable Type: 75Ω coaxial with FEP insulation
• Case Material: AISI 304 stainless steel
• Tip Material: Polyphenylene sulfide (PPS)

Installation Notes

• Optimal gap setting: 1.0 mm (40 mils)
• Maximum torque: 7.3 N•m (65 in•lb)
• Recommended torque: 5.1 N•m (45 in•lb)
• Minimum bend radius: 25.4 mm (1.0 in)
• Minimum target size: 13 mm diameter

Compatibility Information

• Direct replacement for 3300 RAM probes
• Works with all 3300 XL NSv Proximitor systems
• Compatible with extension cables up to 305 meters

Certifications

• Multiple global agency approvals (Option 05)
• Industrial-grade safety certifications

Package Contents

• One 7-meter NSv proximity probe
• Factory installation documents
• 12-month warranty certificate

Warranty & Shipping

• Full 12-month warranty
• Worldwide shipping via FedEx, UPS, DHL
• Express delivery options available

Professional FAQ

• What is the maximum wiring distance for this system?
  Total cable length can extend to 305 meters between probe and monitor.
• How does cable length affect probe resistance?
  Resistance increases with cable length: 7m probes measure 5.9Ω ±0.9Ω.
• What protection does the connector have?
  This model features a connector protector for industrial environments.
• Can this probe handle high-vibration applications?
  Yes, stainless steel armor provides vibration resistance.
