Description

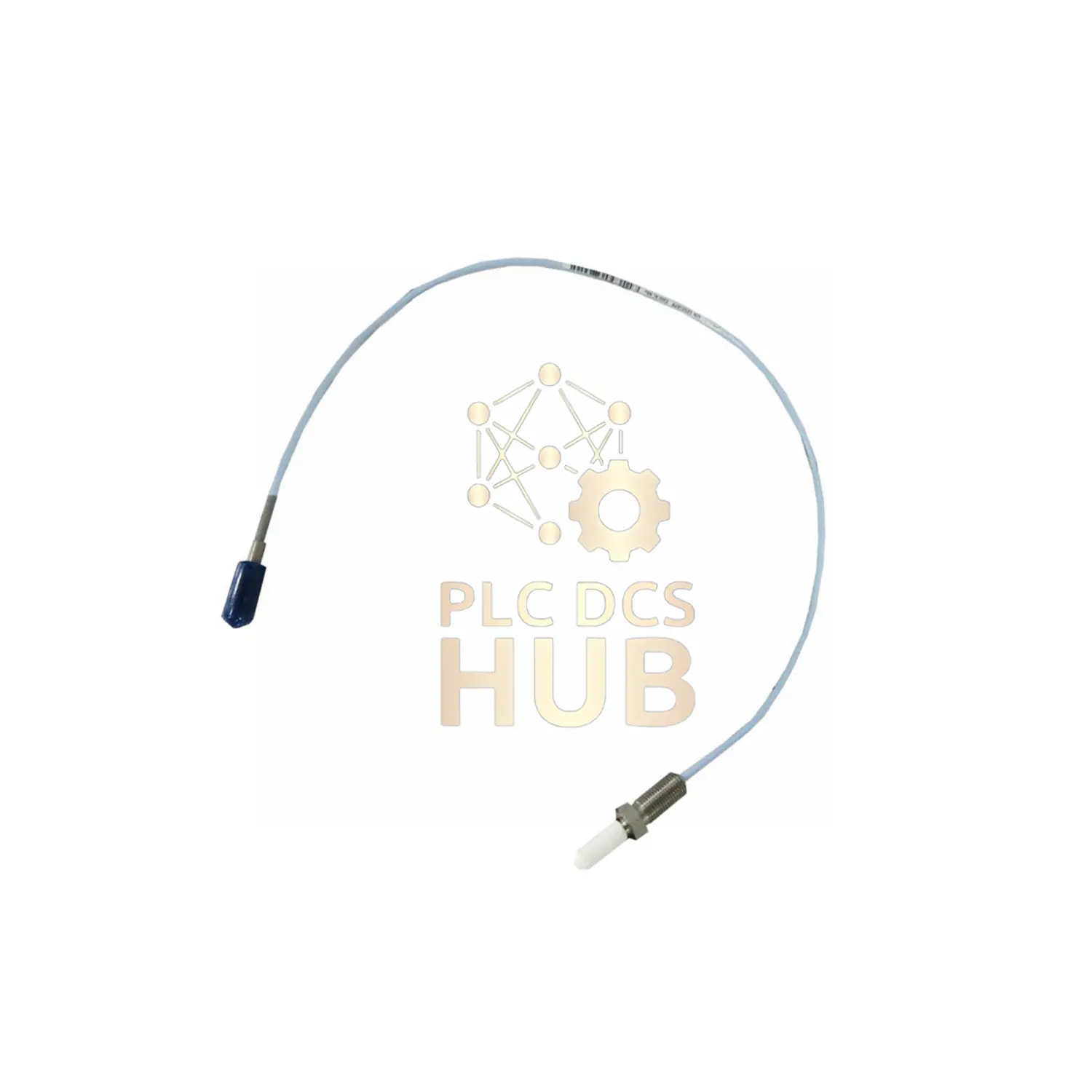

Bently Nevada 3300 NSv Probe: Short-Cable Precision
Brand new 330904-08-10-05-12-00 vibration sensor with 0.5m cable and 12-month warranty. Perfect for tight spaces in turbines and compressors.
Complete Suffix Breakdown
- 330904 – Base model (M8X1 thread with armor)
- 08 – 80mm unthreaded length
- 10 – 100mm case length
- 05 – 0.5 meter cable (20 inches)
- 12 – ClickLoc connector + FluidLoc cable
- 00 – No agency approvals required
Key Technical Specs
- Measurement Range: 1.5mm (60 mils)
- Accuracy: ±0.06mm (±2.3 mils)
- Output Signal: -1V to -13V linear DC
- Temp Range: -52°C to +177°C
- Cable Resistance: 4.0Ω ±0.5Ω
- Response Frequency: 0-10 kHz
- Min Target Size: 8.9mm diameter
- Bend Radius: 25.4mm minimum
Top Product Features
- Short 0.5m cable for confined areas
- Chemical-resistant PPS tip material
- Stainless steel armored casing
- Viton O-ring pressure sealing
- Works with existing 3300 RAM systems
Installation Guide
- Set gap to 1.0mm (40 mils)
- Hand-tighten only (max 0.56 N•m)
- Maintain >25.4mm cable bend radius
- Use shielded triad wiring (max 305m)
Certifications
No special approvals needed (suffix -00)
What’s Included
- 3300 NSv Probe (330904-08-10-05-12-00)
- Factory packaging
- 12-month warranty
Global Shipping
Fast delivery via FedEx, UPS, or DHL
Professional FAQ
- Q: Suitable for high-vibration applications?
A: Yes, designed for machinery with severe vibration - Q: Cable replacement options?
A: Extension cables available up to 305m - Q: Chemical resistance level?
A: Superior to 3300 RAM probes in harsh environments - Q: Thread engagement depth?
A: 12mm maximum for M8x1 threading - Q: Humidity limitations?
A: FluidLoc cable protects against moisture ingress
Download Resources
Get detailed technical information:
