330904-08-15-10-01-05 Bently Nevada 3300 NSv Probe Buy Now

Description

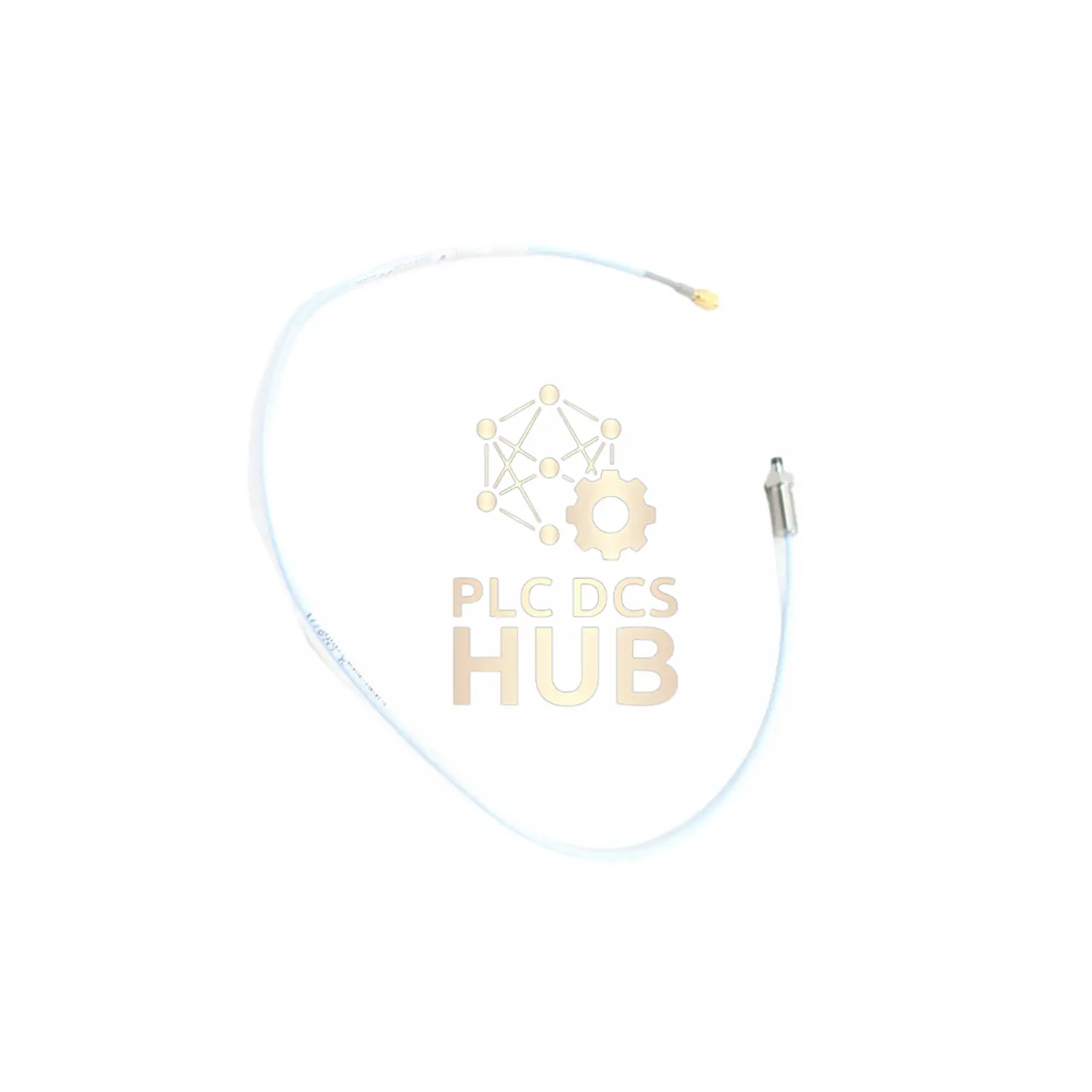

Bently Nevada 330904-08-15-10-01-05 NSv Probe – Industrial Vibration Monitoring Solution

New OEM proximity sensor with 150mm case length and connector protector. Perfect for harsh environments. Direct replacement for 3300 RAM systems with better performance. Ships globally with 12-month warranty.

Complete Model Breakdown

• 330904: Base model
• -08-: 80mm unthreaded length
• -15-: 150mm overall case
• -10-: 1.0 meter cable
• -01-: ClickLoc connector with protector
• -05-: Multiple agency approvals

Essential Technical Data

• Brand: Bently Nevada
• Range: 1.5mm (0.06in) linear measurement
• Accuracy: ±0.06mm deviation
• Temp Range: -52°C to +177°C
• Response: 0-10kHz frequency
• Cable: 75Ω coaxial with FEP insulation
• Thread: M8X1 with 12mm max engagement

Setup & Installation

• Gap: Set at 1.0mm from target surface
• Torque: 5.1 N•m (45 in•lb) maximum
• Target: Minimum 13mm diameter
• Bending: Keep >25.4mm radius
• Wiring: Use shielded triad cable

Package & Support

• New probe in factory packaging
• Calibration certificate included
• 12-month warranty
• Global shipping: FedEx, UPS, DHL options
• Tracking within 24 hours

Expert FAQs

• Q: What’s different about the -01- connector option?
  A: Includes protective cover for damage prevention
• Q: Can I use this in high-pressure applications?
  A: Viton O-ring provides sealing – contact us for pressure testing
• Q: Minimum shaft size for accurate readings?
  A: 13mm diameter recommended
• Q: Cable length options available?
  A: 0.5m, 1m, 5m, 7m versions
• Q: Chemical resistance compared to RAM probes?
  A: 3× improvement for compressor applications

Download Technical Resources

Get complete installation and specification documents:

• • NSv Probe Installation Guide (PDF)
