Description

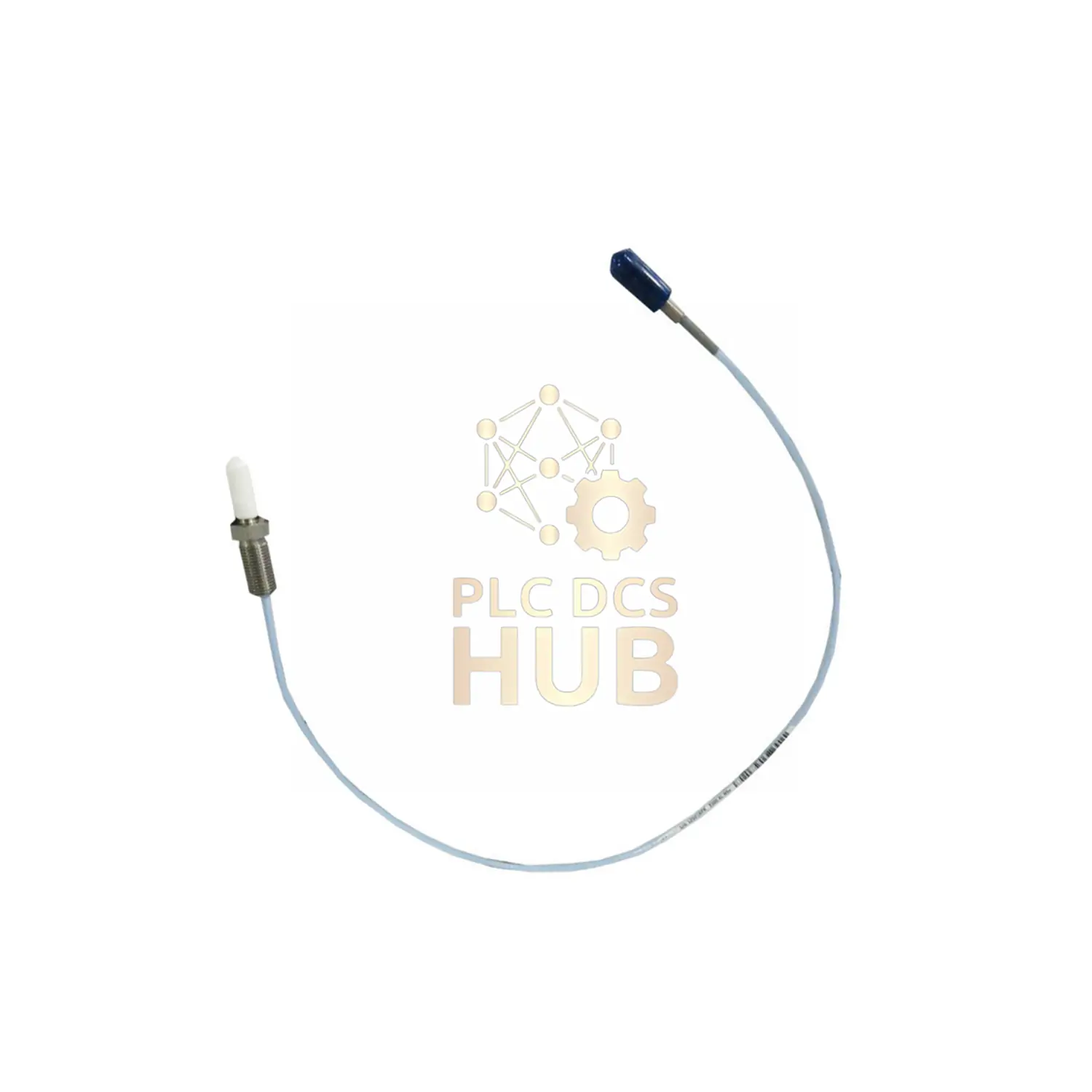

Bently Nevada 330904-08-15-70-12-00 – 3300 NSv Proximity Probe
New industrial-grade proximity sensor with enhanced chemical resistance and factory warranty. Ideal for precision machinery monitoring.
Technical Specifications
Brand: Bently Nevada
Model: 3300 NSv Proximity Probe
Full Suffix: 330904-08-15-70-12-00
Ordering Code Breakdown:
- 330904: M8X1 thread with armor
- -08: 80mm unthreaded length
- -15: 150mm case length
- -70: 7.0 meter cable
- -12: Mini ClickLoc connector + FluidLoc cable
- -00: No agency approval required
| Parameter | Value |
|---|---|
| Linear Range | 1.5 mm (0.25-1.75mm) |
| Sensitivity (ISF) | 7.87 V/mm ±20% |
| Linearity (DSL) | <±0.06mm |
| Frequency Response | 0-10 kHz (±3dB) |
| Temperature Range | -52°C to +177°C |
| Probe Resistance | 5.9Ω ±0.9Ω (7m cable) |
| Ingress Protection | Viton O-ring sealed |
Installation Guide
- Recommended gap: 1.0 mm (40 mils)
- Max torque: 0.56 N•m (5 in•lb)
- Min bend radius: 25.4 mm
- Thread engagement: 12 mm max
Package Includes
- 3300 NSv Probe unit
- 12-month warranty card
Shipping & Support
Global delivery via FedEx, UPS, DHL. 12-month warranty against defects.
FAQ
Q: Compatible with 3300 XL monitors?
A: Yes, works with all 3300-series systems
Q: Minimum target size?
A: 8.9mm diameter (13mm recommended)
Download Full Manual:
Click here for installation guide
