330904-08-15-70-12-05 3300 NSv Proximity Probes Bently Nevada

Description

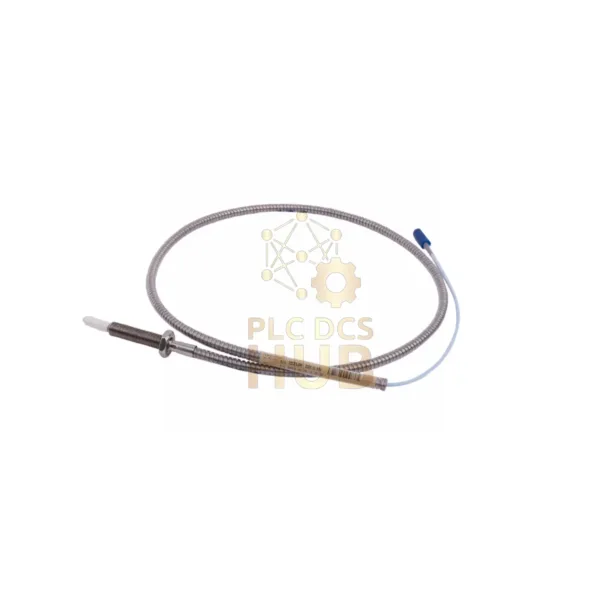

Bently Nevada 3300 NSv 7m Proximity Probe with FluidLoc Cable

New original 7-meter vibration sensor with 12-month warranty. Features extended FluidLoc cable for hard-to-reach installations. Ships globally via FedEx/UPS/DHL.

330904-08-15-70-12-05 DECODED

• 330904 → Base model
• -08- → 80mm unthreaded section
• -15- → 150mm total case length
• -70 → 7.0 meter cable
• -12 → FluidLoc cable with ClickLoc
• -05 → Multiple agency approvals

TECHNICAL SPECS

• DC Resistance: 5.9Ω ±0.9Ω
• Frequency Range: 0-10,000 Hz
• Scale Factor: 7.87 V/mm ±20%
• Accuracy: ±0.06mm max error
• Cable Type: FEP-insulated FluidLoc
• Min Target Size: 13mm diameter
• Bend Radius: 25.4mm minimum

PROBE SETUP GUIDE

• Optimal gap: 1.0mm (40 mils)
• Max install torque: 0.56 N•m
• Thread engagement: 12mm minimum
• Cable strain relief required

PROFESSIONAL FAQ

• Q: Why choose 7m cable length?
  A: For installations where sensors are far from monitoring equipment
• Q: Difference between -12 and -11 options?
  A: -12 has FluidLoc cable without connector protector
• Q: How to handle cable resistance?
  A: 5.9Ω at 7m length – factor into system calibration
• Q: Suitable for outdoor use?
  A: Yes, with IP67 equivalent protection
• Q: Replacement for 3300 RAM probes?
  A: Direct replacement with better chemical resistance

GET TECHNICAL DOCUMENTS

Download for your 3300 NSv probe:

• • 7m Probe Installation Guide
  • FluidLoc Cable Specifications

Warranty: 12-month warranty included. Ships same day with tracking.
