Description

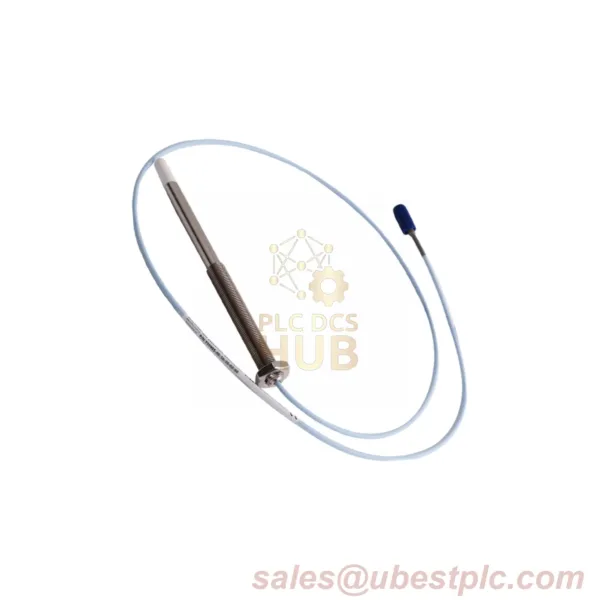

Bently Nevada 330905-00-03-10-01-05: High-Performance Proximity Probe
Key Features
Bently Nevada‘s 3300 NSv probe delivers ±0.06mm precision with multi-certification compliance. Features 1.5mm linear range and chemical-resistant design. Built for harsh environments (-52°C to +177°C).
Technical Specs
- Part No.: 330905-00-03-10-01-05
- Length: 1.0m (39″) standard cable
- Resistance: 4.2Ω ±0.5 (center to outer)
- Response: 0-10 kHz frequency range
- Accuracy: ±2.3 mils deviation
- Material: Stainless steel case + PPS tip
Why Choose This Probe?
- ✅ Seals up to 22.6 N•m pressure
- ✅ Withstands extreme temperatures
- ✅ 7.87 V/mm incremental sensitivity
- ✅ 12-month factory warranty
Installation Guide
1) Finger-tighten M10X1 threads (max 7.5 N•m)
2) Maintain 25.4mm bend radius
3) Use 13mm+ flat targets for best results
Package Includes
- 1x 3300 NSv Probe
- 1-year quality guarantee
Ideal Uses
- Chemical process compressors
- Gas turbine shaft monitoring
- Hydroelectric generator systems
FAQ
Q: Minimum target size?
A> 8.9mm diameter (13mm recommended)
Q: Cable length options?
A> Available in 0.5m, 1m, 5m, 7m
Q: Pressure testing?
A> Contact for custom pressure tests
