Description

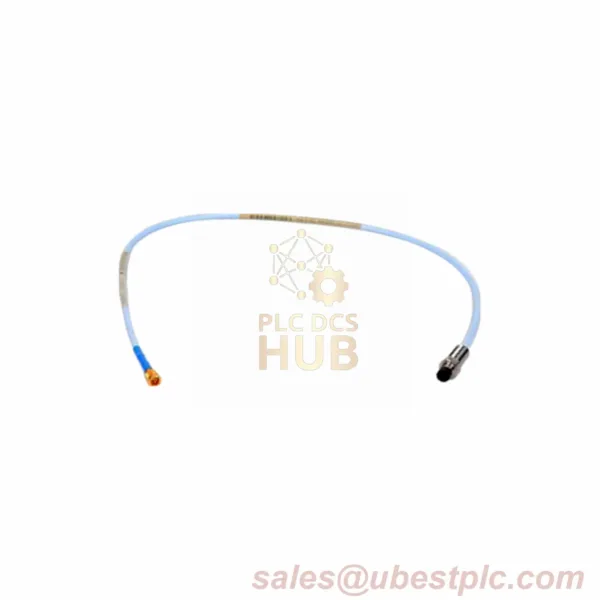

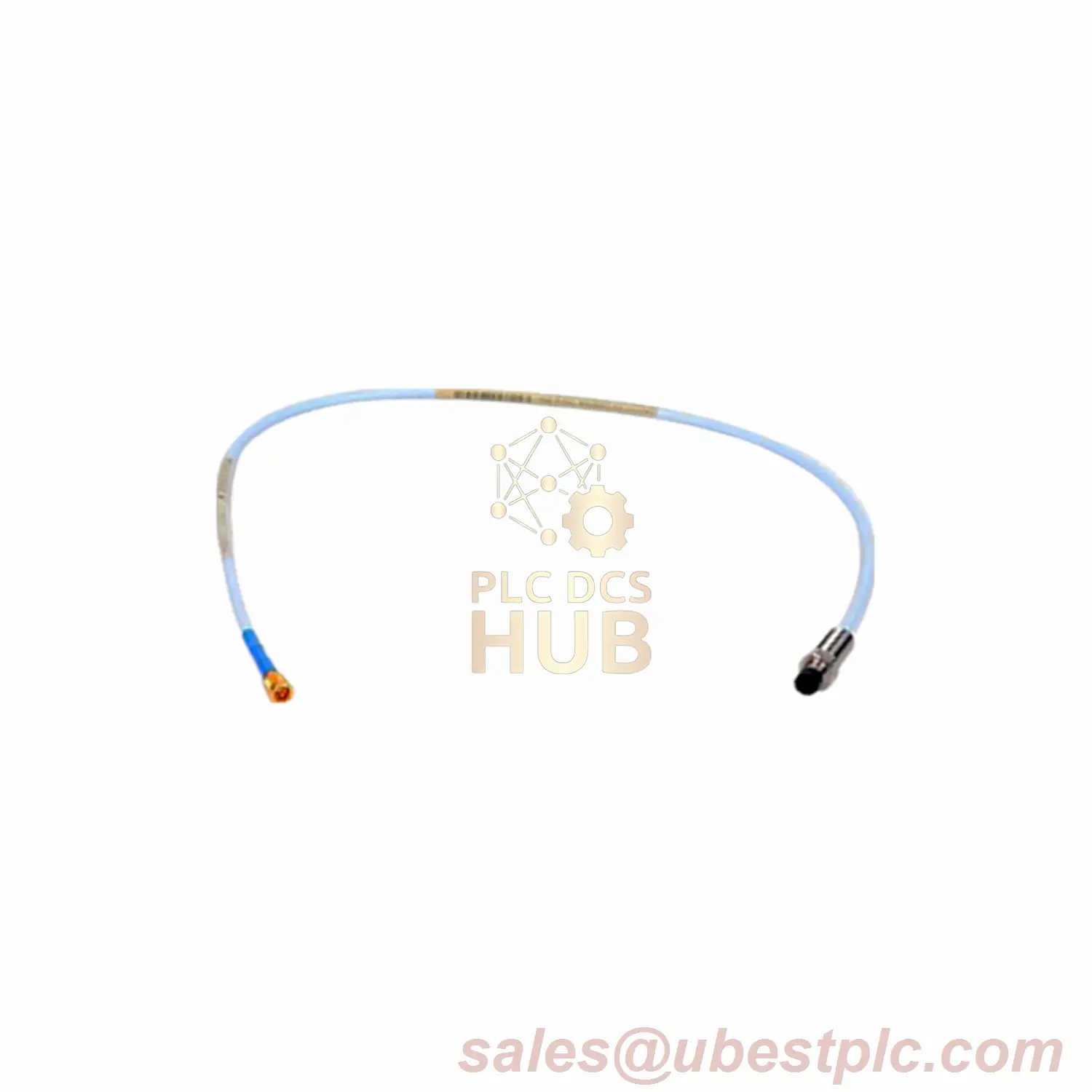

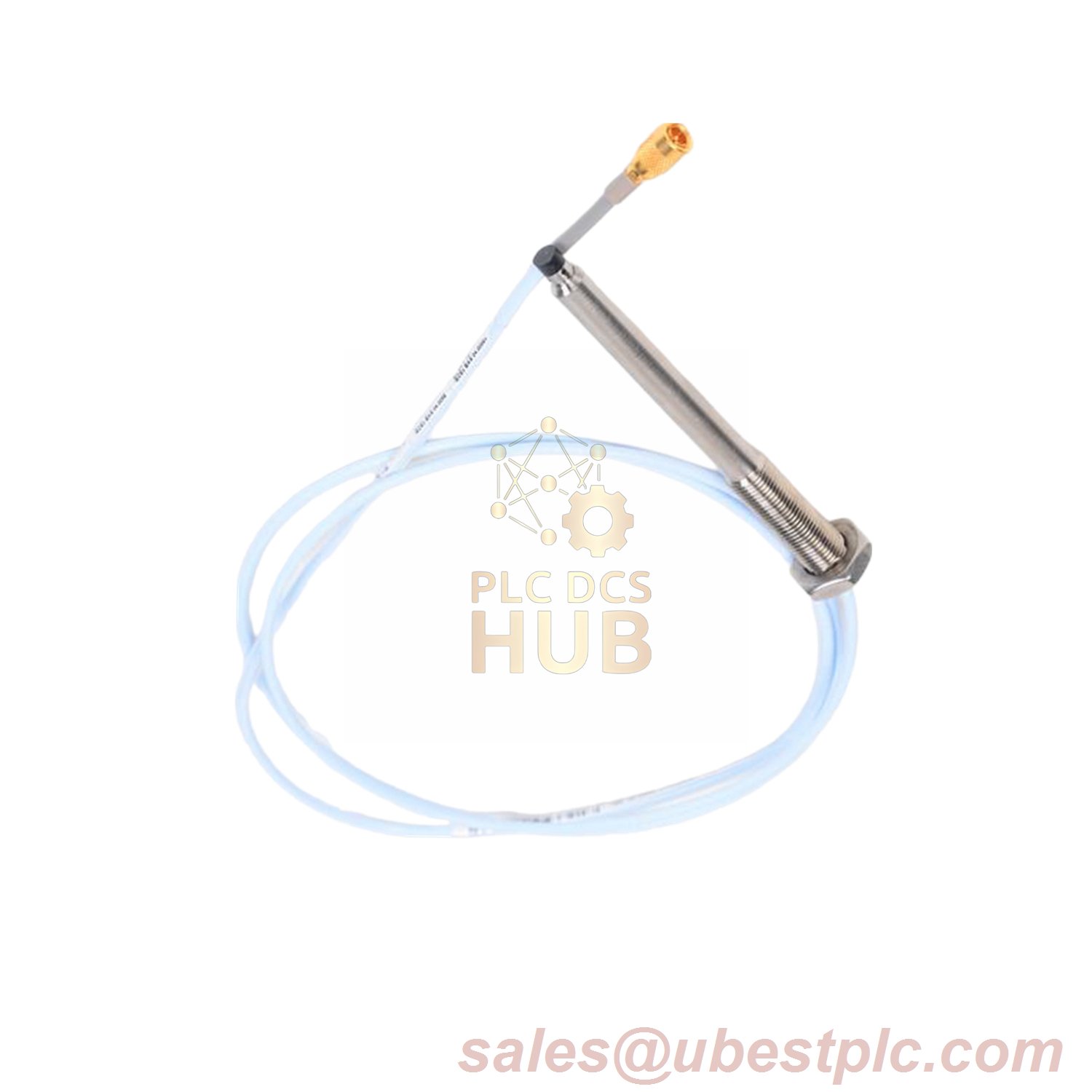

Product Identification: 330905-00-03-10-02-CN
Bently Nevada 3300 NSv Proximity Probe – New & Factory-Sealed with 12-Month Warranty. Designed for country-specific compliance (-CN suffix) while retaining superior chemical resistance and 30 mm compact case design.
Configuration Highlights
- Part Number: 330905-00-03-10-02-CN (Country-Specific Approval)
- Mechanical Profile: M10X1 Thread | 30 mm Case | 15 mm Thread Engagement
- Electrical Stability: 4.2Ω ±0.5 Probe Resistance | 0.066 Ω/m Shield Resistance
- Precision Metrics: ±0.06 mm DSL | 7.87 V/mm ISF | 1.0 mm Optimal Gap
Compliance & Durability
| Certifications: | -CN Suffix (Local Regulatory Approval) |
| Environmental: | -52°C to +177°C Operation | 25.4 mm Bend Radius |
| Sealing: | Viton O-Ring | 22.6 N•m Max Thread Torque |
Advanced Engineering
▪ Field Wiring: 305 m Max Distance | 0.2-1.5 mm² Triad Shielded
▪ Target Optimization: 13 mm Min Diameter | 8.9 mm Absolute Minimum
▪ Frequency Response: 0-10 kHz (±3 dB) | 69.9 pF/m Cable Capacitance
▪ Material: PPS Probe Tip | 304 SST Housing | FEP Insulation
