Description

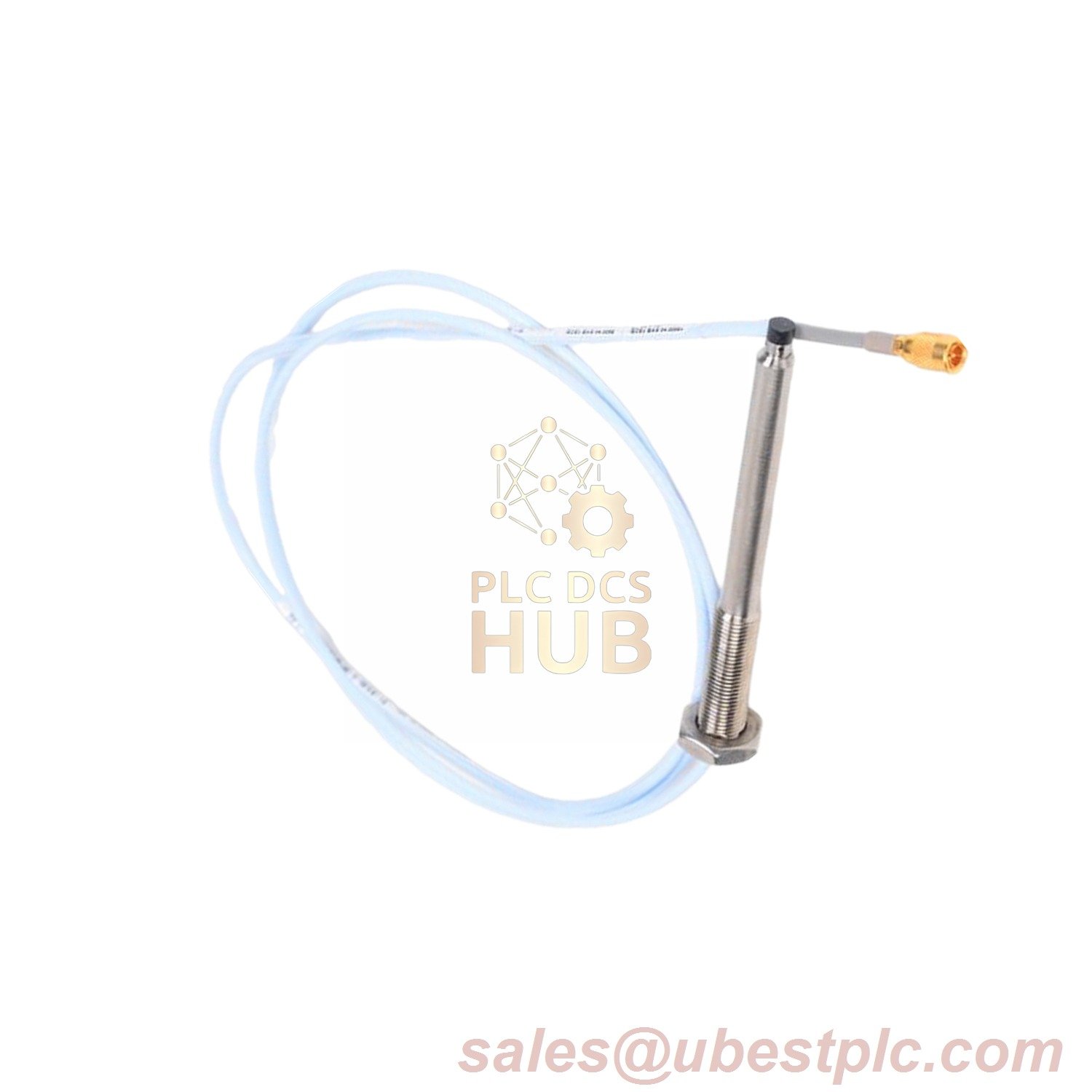

Bently Nevada 3300 NSv Proximity Probe
New & Original with 12-month factory warranty. Compact and fluid-resistant, 330905-00-05-10-11-00 features a 50mm case, 1.0m FluidLoc™ cable, and ClickLoc™ connector protector. Ideal for wet industrial environments with no certifications required.
330905-00-05-10-11-00 Suffix Code Breakdown
| Suffix | Specification |
|---|---|
| 00 | Fully threaded (0mm unthreaded) |
| 05 | 50mm case length |
| 10 | 1.0m (39″) cable length |
| 11 | ClickLoc™ with protector + FluidLoc™ cable |
| 00 | No certifications required |
Technical Specifications
| Category | Details |
|---|---|
| Electrical |
|
| Mechanical |
|
| Environmental |
|
Installation Guidelines
- Cable Length: 305m max field wiring with shielded triad cable.
- Gap Setting: 1.0mm (40 mils) from target for optimal output.
- Torque: Apply 11.3 N·m (100 in·lb) to M10x1 threads.
Contact: For COO or pressure testing, email sales@ubestplc.com.
