Product Overview & Suffix Details

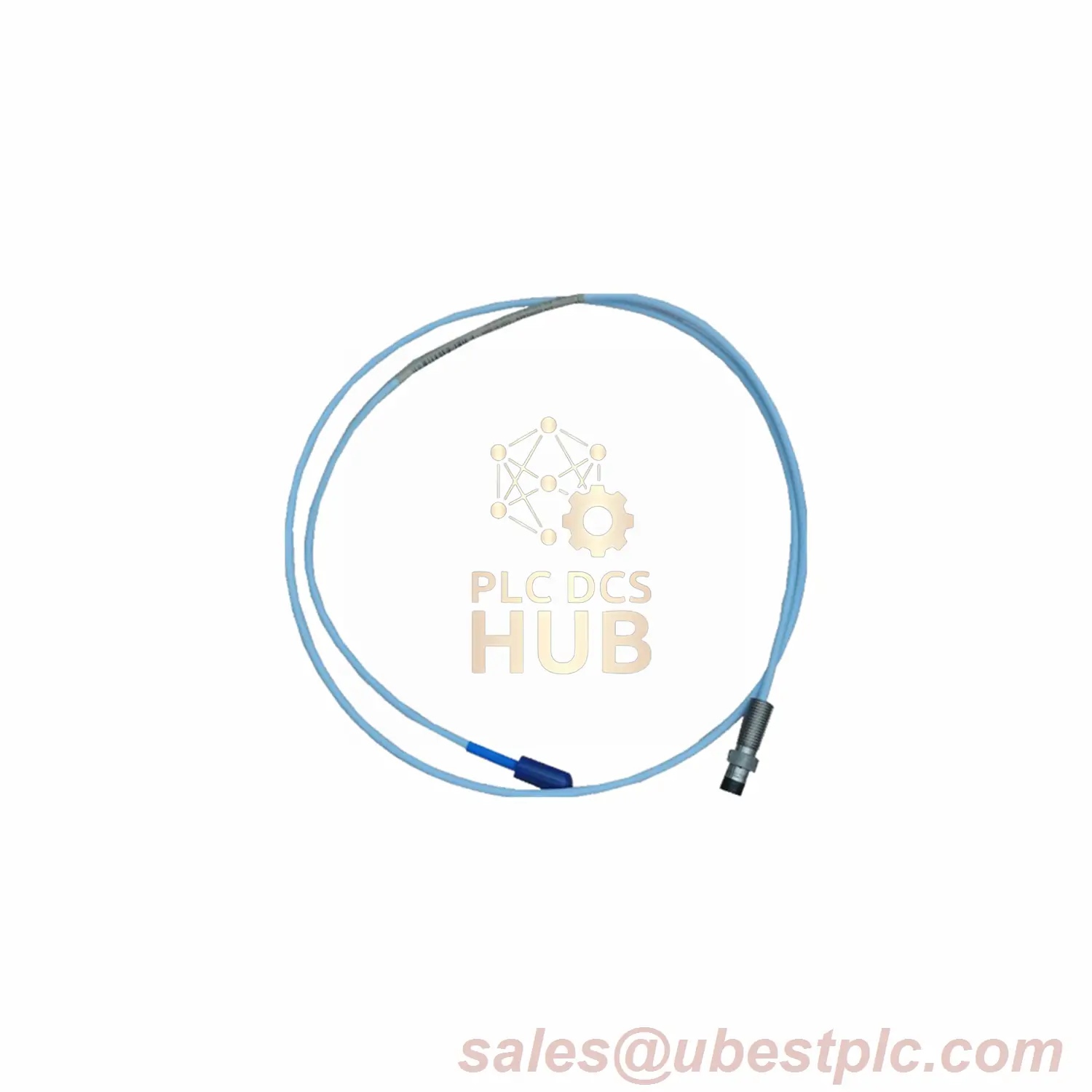

Bently Nevada 330905-00-10-05-01-00 is a new & original 3300 NSv Proximity Probe with 12-month factory warranty. Designed for industrial applications, it features M10X1 threads, 0.5m unarmored cable, and enhanced chemical resistance for process compressors. Full suffix breakdown: -00- (0mm unthreaded length), -10- (100mm case length), -05- (0.5m total length), -01- (ClickLoc connector), -00 (no agency approval).
Key Specifications & Performance for 330905-00-10-05-01-00
- Electrical: DC resistance 4.0Ω±0.5 (0.5m probe), extension cable shield resistance 0.066Ω/m.
- Mechanical: Withstands -52°C to +177°C, Viton O-ring sealing, 25.4mm bend radius.
- Installation: Max torque 0.56N·m, thread engagement 15mm, recommended gap 1.0mm (40 mils).
Advanced Features
Superior to 3000-series 190 probes with 7.87V/mm sensitivity (±12.5% tolerance) and ±0.06mm linearity deviation. Compatible with 3300 RAM systems, featuring PPS probe tip and 304 SST case. Supports 305m field wiring with 69.9pF/m capacitance.
Compliance & Compatibility
Tested for 0-10kHz frequency response (-3dB rolloff). Minimum target size 8.9mm diameter (13mm recommended). Meets IP67-equivalent sealing (untested). Thread torque range: 7.5-22.6N·m.
