Description

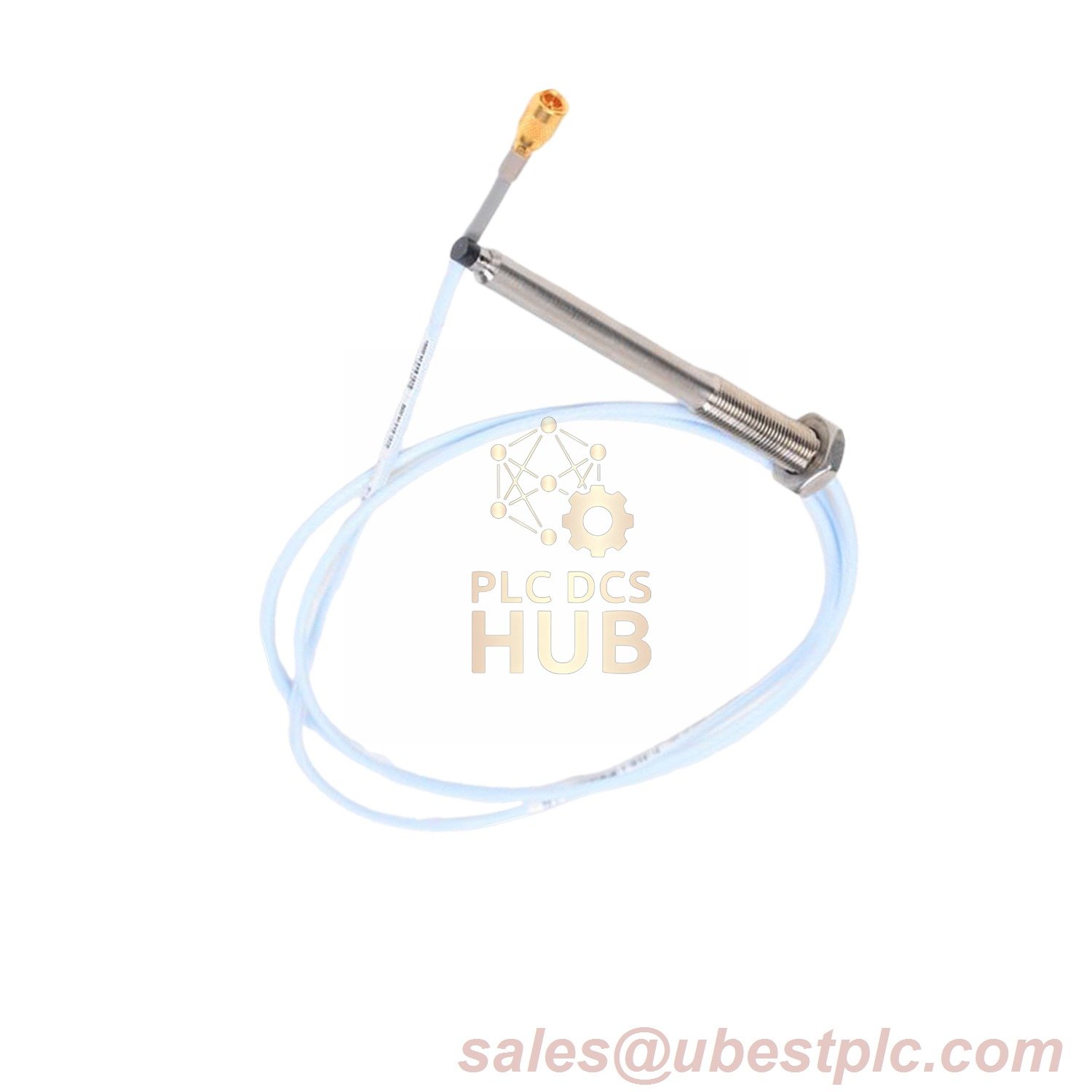

The Bently Nevada 330905-00-10-05-02-00 is a 3300 NSv Proximity Probe designed for general industrial vibration monitoring. Featuring a 100 mm (3.94″) stainless steel case and 0.5 m (20″) armored cable, this probe offers reliable performance in harsh environments. Its chemical-resistant construction and backward compatibility with 3300 RAM probes make it ideal for retrofitting legacy systems.
Technical Specifications
- Model: 330905-00-10-05-02-00
- Suffix Code Breakdown:
- -00: 0 mm unthreaded length (fully threaded)
- -10: 100 mm (3.94″) case length
- -05: 0.5 m (20″) cable length
- -02: ClickLoc™ connector + standard cable
- -00: No certifications required
- Electrical:
- DC Resistance: 4.0 Ω ±0.5
- Linear Range: 1.5 mm (60 mils) | Gap: 1.0 mm (40 mils)
- Scale Factor: 7.87 V/mm (±12.5%)
- Frequency Response: 0-10 kHz (±3 dB)
- Mechanical:
- Case Material: AISI 304 SST
- Tip Material: PPS (chemical-resistant)
- Thread Torque: 33.9 N·m max / 11.3 N·m recommended
- Bend Radius: 25.4 mm (1.0″)
- Environmental:
- Operating Temp: -52°C to +177°C (-62°F to +351°F)
- Pressure Seal: Viton® O-ring (500 psi differential)
