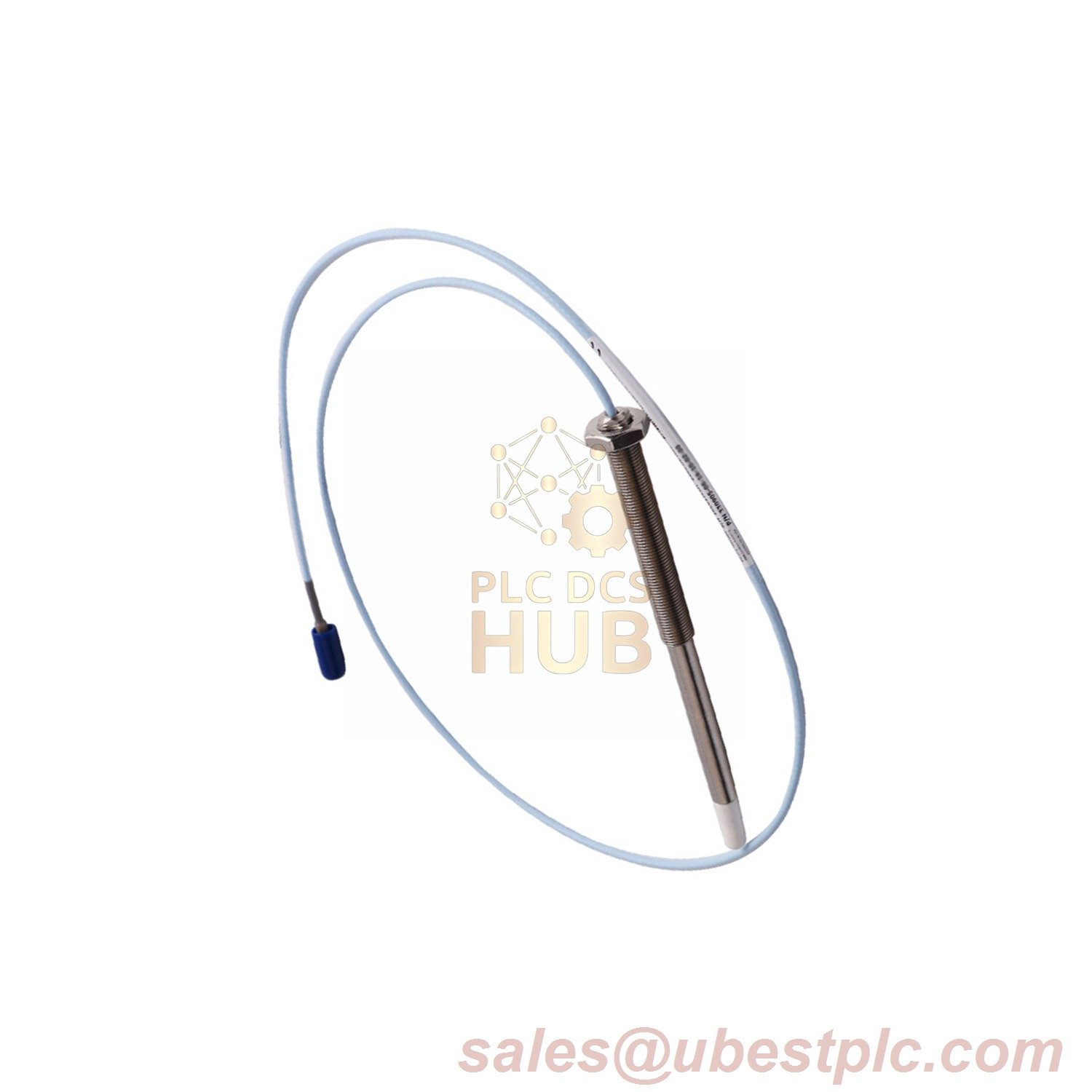

The Bently Nevada 330905-00-20-10-02-00 is a 3300 NSv Proximity Probe designed for deep-casing industrial applications. Featuring an extended 200 mm (7.87″) stainless steel case and 1.0 m (39″) armored cable, this probe provides reliable vibration monitoring in large compressors and turbines. Its chemical-resistant construction and reverse-mount design make it ideal for harsh, non-hazardous environments requiring extended reach.
Technical Specifications
- Model: 330905-00-20-10-02-00
- Suffix Code Breakdown:
- -00: 0 mm unthreaded length (fully threaded)
- -20: 200 mm (7.87″) case length
- -10: 1.0 m (39″) cable length
- -02: ClickLoc™ connector + standard cable
- -00: No agency certifications required
- Electrical:
- DC Resistance: 4.2 Ω ±0.5 (1.0m length)
- Linear Range: 1.5 mm (60 mils) | Gap: 1.0 mm (40 mils)
- Scale Factor: 7.87 V/mm (±12.5%)
- Frequency Response: 0-10 kHz (±3 dB)
- Mechanical:
- Case Material: AISI 304 SST (corrosion-resistant)
- Tip Material: Polyphenylene Sulfide (PPS)
- Thread Torque:
- Full Engagement: 33.9 N·m max / 11.3 N·m recommended
- First 3 Threads: 22.6 N·m max / 7.5 N·m recommended
- Bend Radius: 25.4 mm (1.0″)
- Environmental:
- Operating Temp: -52°C to +177°C (-62°F to +351°F)
- Pressure Seal: Viton® O-ring (500 psi differential)
Key Applications
- Large-frame gas compressors with deep casing penetrations
- Steam turbine thrust position monitoring
- Heavy-duty rotating equipment in power generation
