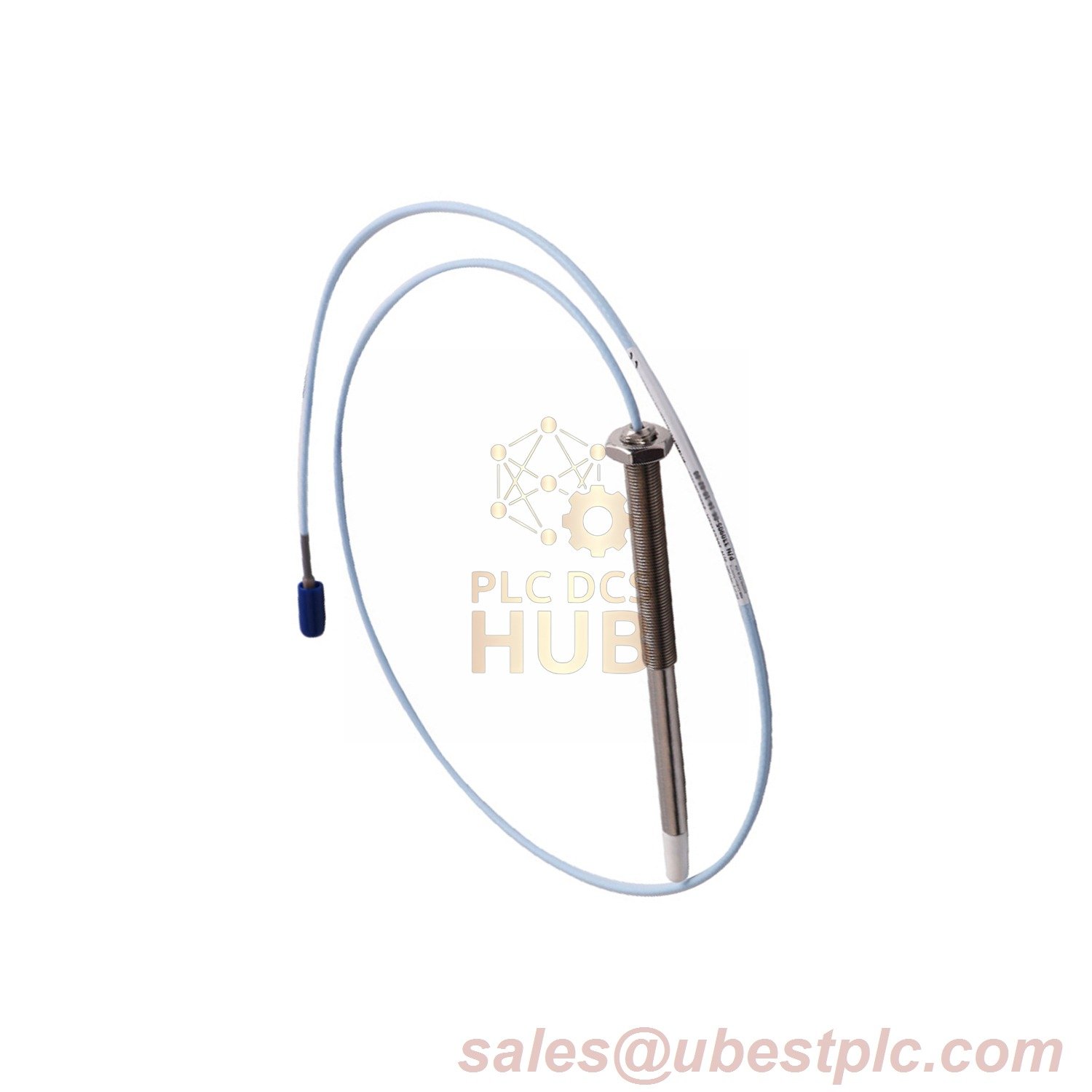

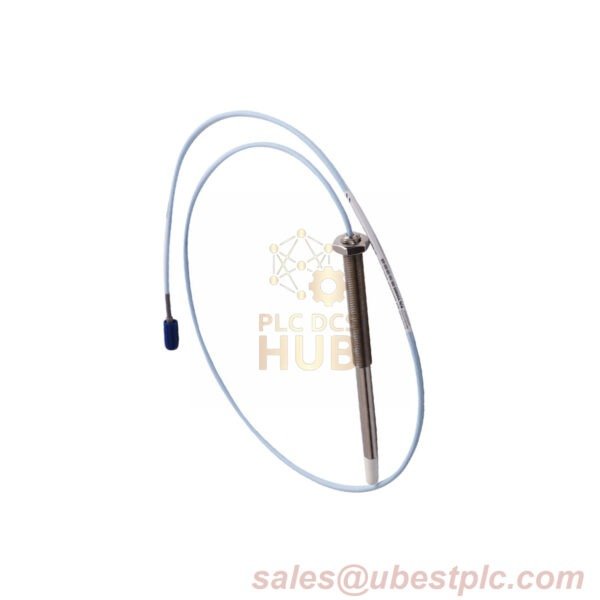

330905-00-25-05-01-CN Proximity Probe Bently Nevada

Bently Nevada-logo
Categories: , , , , SKU: 330905-00-25-05-01-CN

$142.00 $265.00

0 reviews

Reviews Summary by AI:

50 in stock

Description

Bently Nevada 3300 NSv Proximity Probe

New & Original with 12-month factory warranty. Engineered for deep industrial installations, 330905-00-25-05-01-CN combines a 250mm extended case, 0.5-meter armored cable, and Viton® O-ring sealing. Designed for process compressors requiring country-specific compliance and backward compatibility with 3300 RAM systems.

Technical Specifications

ParameterDetails
Part Number330905-00-25-05-01-CN
Suffix Code Breakdown
  • 00: 0mm unthreaded length (full M10X1 threading)
  • 25: 250mm case length
  • 05: 0.5m FEP-insulated triaxial cable
  • 01: ClickLoc™ connector with protector
  • CN: Country-specific certification
Electrical
  • DC Resistance (0.5m): 4.0Ω ±0.5
  • Scale Factor: 7.87 V/mm (+12.5%/-20%)
  • Frequency Response: 0–10 kHz (±3dB)
Mechanical
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Case Material: AISI 304 SST with M10X1 threads
  • Max Torque: 33.9 N·m (300 in·lb)
  • Bend Radius: ≥25.4mm (1.0″)
Environmental
  • Operating Temp: -52°C to +177°C (-62°F to +351°F)
  • Pressure Seal: Viton® O-ring (avoid sustained < -34°C)
  • Min Target Size: 8.9mm diameter (13mm recommended)

Contact Us: For COO, datasheets, or technical support, email sales@ubestplc.com.

Additional information

Weight0.15 kg
Dimensions300 × 330 × 60 mm
