330905-00-25-10-01-05 Bently Nevada Proximity Probe

Description

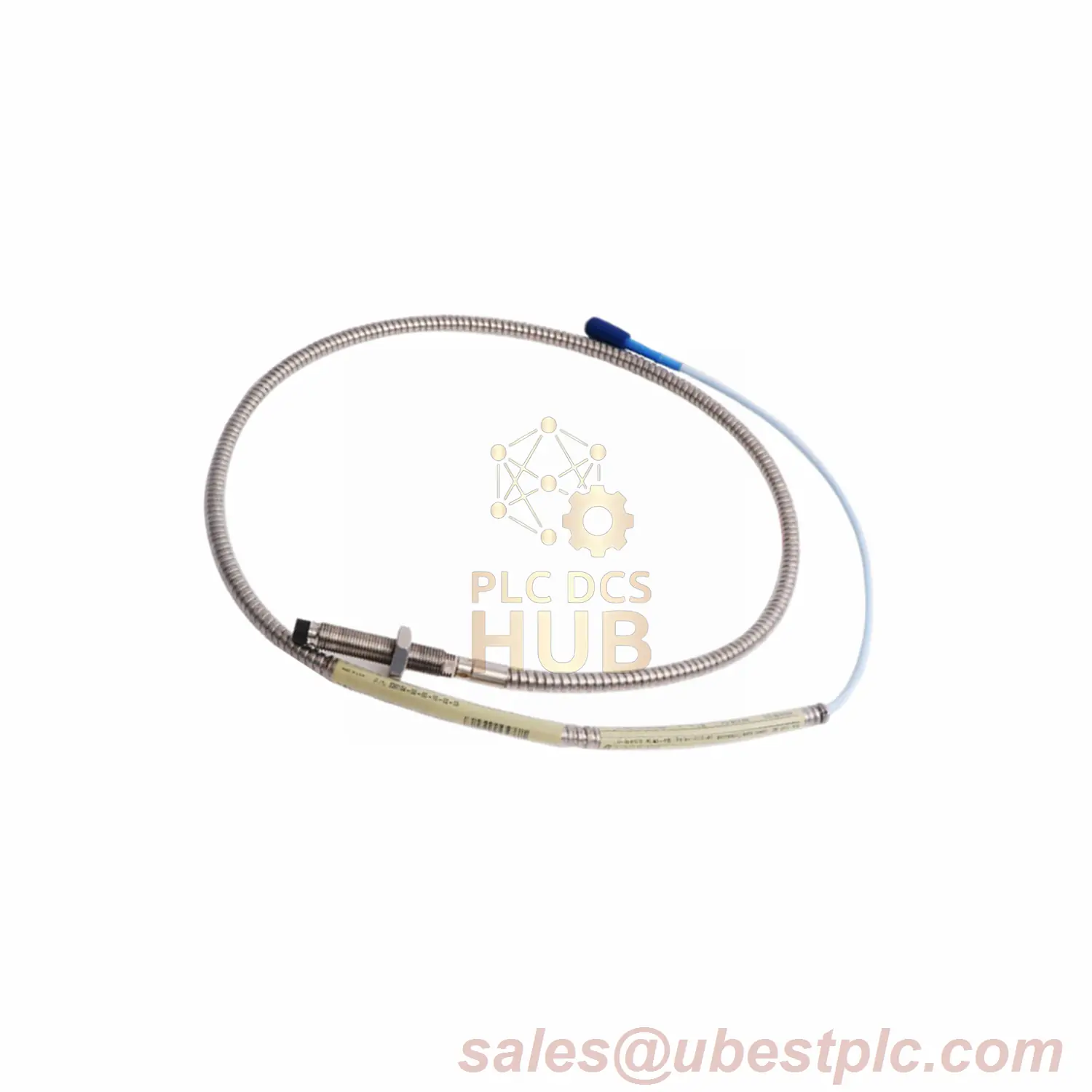

Bently Nevada 330905-00-25-10-01-05 NSv Proximity Probe

New & Original in factory packaging with 12-month warranty. Designed for industrial monitoring with enhanced chemical resistance and superior side-view characteristics.

Product Overview

Part Number Suffix Breakdown for 330905-00-25-10-01-05:

-00: 00 mm unthreaded length
-25: 250 mm overall case length
-10: 1.0 meter (39 in) total cable length
-01: Miniature coaxial ClickLoc connector with protector
-05: Multiple agency approvals (ATEX, IECEx, CSA)

Key Technical Specifications

Electrical Performance:

Probe DC Resistance: 4.2 Ω ±0.5 (1.0 m length)
Extension Cable Resistance: 0.220 Ω/m (center), 0.066 Ω/m (shield)
Frequency Response: 0–10 kHz (±3 dB) with 305 m field wiring

Mechanical Details:

Thread Specification: M10×1 (Max torque: 22.6 N·m / Recommended: 7.5 N·m)
Case Material: AISI 304 stainless steel
Tip Material: Polyphenylene sulfide (PPS)
Minimum Bend Radius: 25.4 mm (1.0 in)

Environmental & Operational Limits

– Temperature Range: -52°C to +177°C (operating & storage)

Pressure Seal: Viton® O-ring (untested pre-shipment)
Linear Range: 1.5 mm (60 mils) with 7.87 V/mm scale factor
Target Requirements: Min 8.9 mm diameter (recommended 13 mm)
