???? Precision Engineered: 330905-05-08-10-01-00

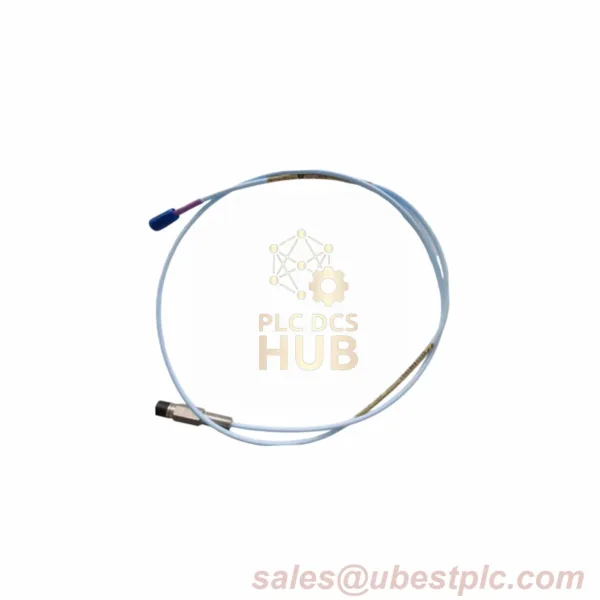

Factory-Sealed Bently Nevada 3300 NSv Probe 330905-05-08-10-01-00 with 1-Year Warranty. Compact 80mm case length and M10x1 thread design, optimized for space-constrained installations without agency certifications.
???? Suffix Configuration
- 330905: Core probe unit
- -05: 50mm unthreaded section
- -08: 80mm rugged SST housing
- -10: 1.0m FEP-insulated cable
- -01: ClickLoc connector + protector
- -00: Standard industrial use (no approvals)
⚖️ Measurement Excellence
| Probe Resistance | 4.2Ω ±0.5Ω @1m |
| Shield Resistance | 0.066Ω/m (20 AWG) |
| Response Time | <3ms @10kHz |
| Thread Depth | 15mm max engagement |
| Cable Type | 75Ω coaxial (FEP) |
????️ Installation Mastery
- Torque Limits: 7.5N·m (ideal) / 22.6N·m (absolute max)
- Wiring Setup: 3-conductor triad (24 AWG preferred)
- Bend Safety: 25.4mm radius enforced
- Gap Precision: 1.0mm ±0.1mm optimal
????️ Environmental Resilience
- Temp Range: -52°C to +177°C operational
- Seal Integrity: Viton O-ring (150°C sustained)
- Housing: 304 SST (salt-spray tested)
- Cable Jacket: FEP (acid-resistant)
???? Order Support
For volume pricing or spec sheets:
sales@ubestplc.com | +86 158 8020 0923
❗ Critical Advisory
Pressure testing excluded – consult Bently Nevada for high-pressure (>5 bar) applications. PPS probe tip withstands hydrocarbons and mild solvents.
