Description
Core Features

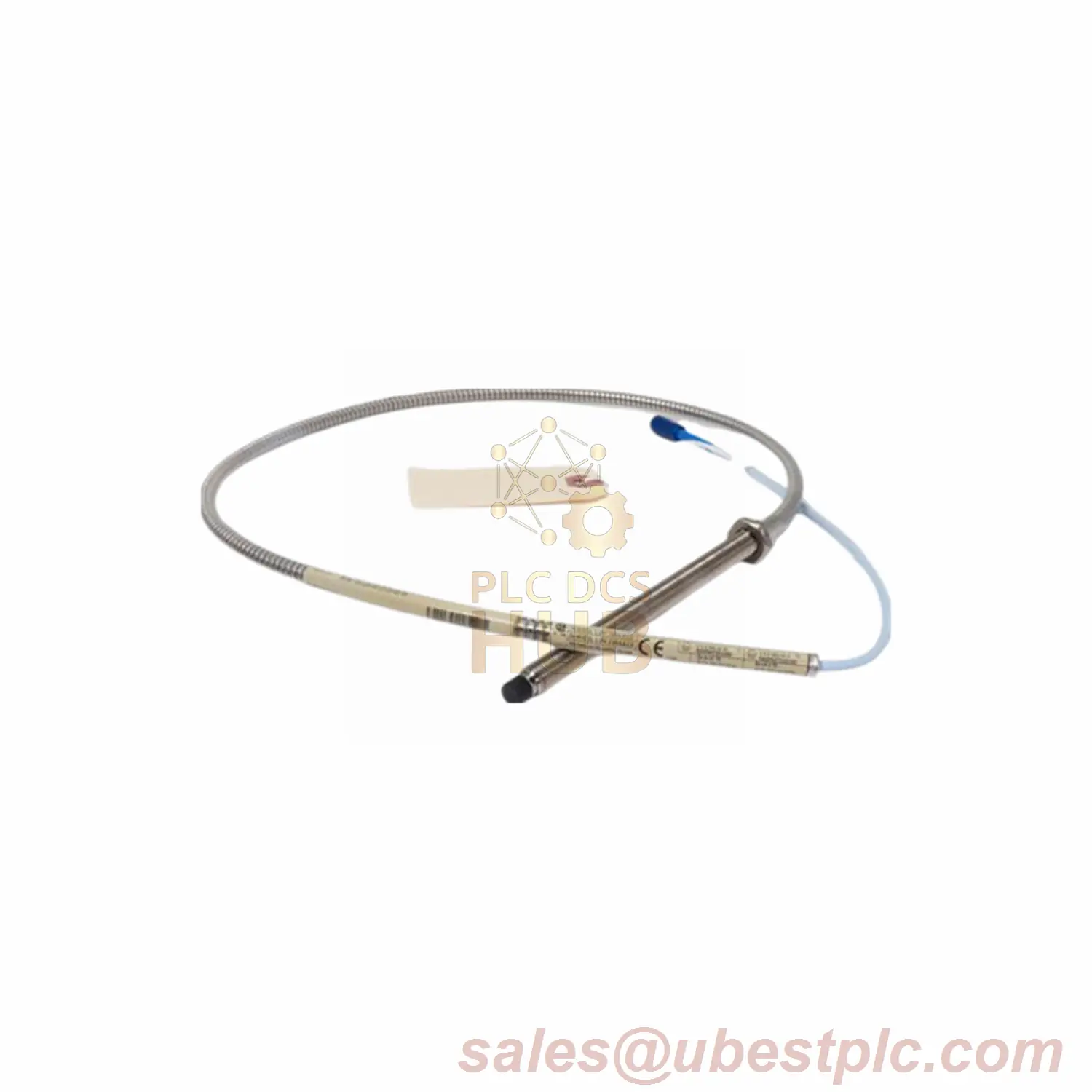

The 330905-05-08-10-02-05 is a Bently Nevada 3300 NSv Probe for industrial machinery monitoring. New & original with 12-month warranty. Includes 1.0m standard cable, M10X1 thread, and multiple agency certifications.
Key Specifications for 330905-05-08-10-02-05
- Case Length: 80mm | Resistance: 4.2Ω ±0.5
- Voltage Output: -1V to -13V | Accuracy: ±0.06mm
- Frequency Range: 0–10kHz (±3dB)
Installation Guide
- Max Torque: 7.5N·m | Thread Depth: 15mm max
- Gap Setting: 1.0mm (40 mils) | Cable Type: 75Ω FEP coaxial
- Wiring: Use 16–24 AWG shielded cable (305m max)
Durability & Compliance
- Materials: PPS sensor tip | 304 stainless steel body
- Certified: Meets multiple industrial standards (-05)
- Temperature Range: -52°C to +177°C
Support & Warranty
1-year manufacturer warranty. For pressure testing or technical help:
Email sales@ubestplc.com
