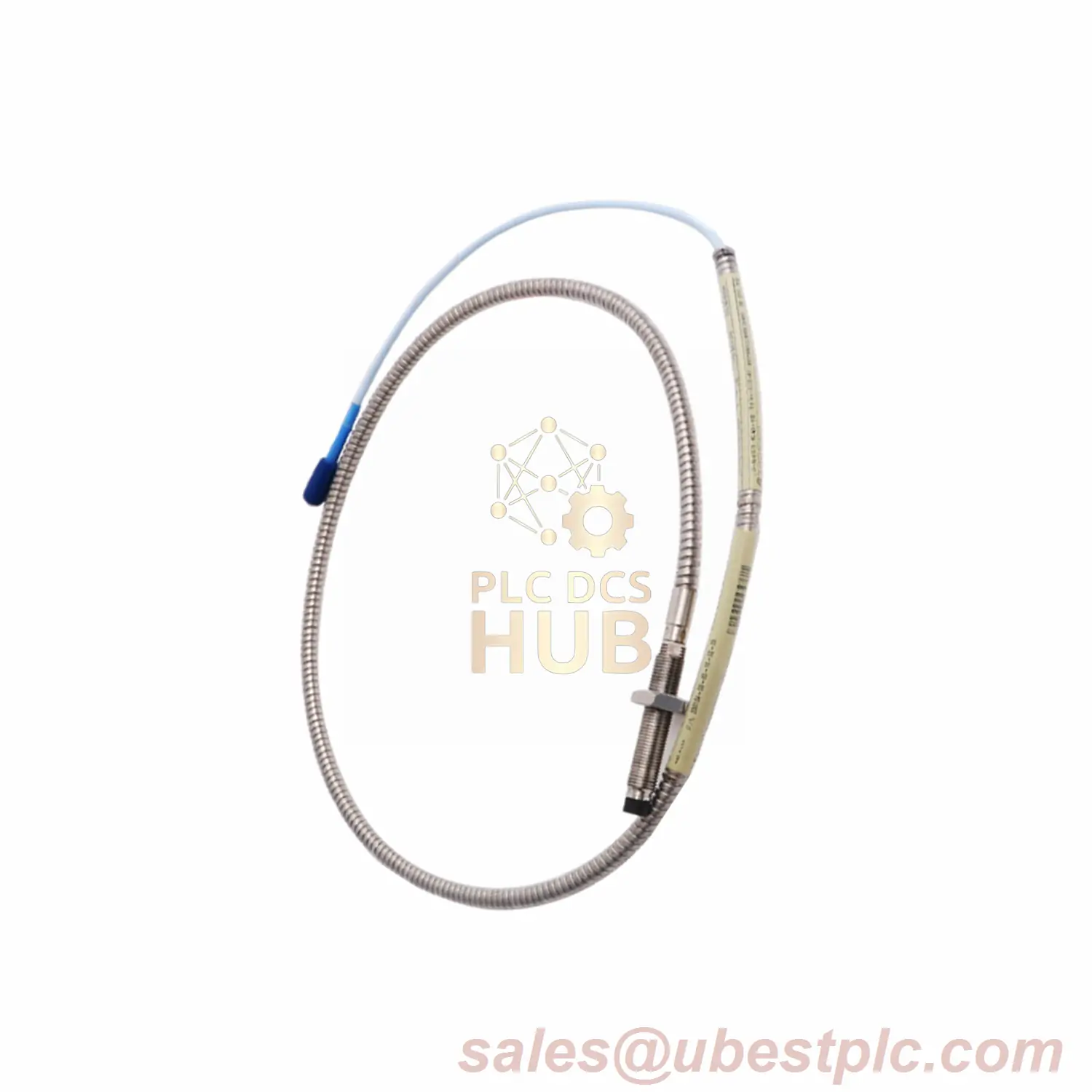

330905-05-08-10-12-00 Bently Nevada 3300 NSv Proximity Probe

Description

???? Product Highlights

Bently Nevada 330905-05-08-10-12-00 NSv Probe delivers ultra chemical resistance for harsh environments. New factory-sealed with 12-month warranty.

???? Key Specs

• Part Number: 330905-05-08-10-12-00
• Thread: M10x1 | 80mm case length
• Cable: 1.0m FluidLoc (39″) with ClickLoc connector
• Resistance: 4.2Ω ±0.5Ω (center to shield)
• Temp Range: -62°F to +351°F

⚡ Performance Boost

• Works With: All 3300 RAM systems
• Gap Setting: 1.0mm (40 mils) optimal
• Signal Accuracy: ±0.06mm deviation
• Field Wiring: Up to 1,000 ft shielded cable
• Pressure Seal: Viton O-ring (15mm thread grip)

????️ Installation Guide

• Torque: 5 in•lb max (finger tight)
• Bend Radius: 1.0″ minimum
• Target Size: Best for shafts >0.5″ diameter
• Cable Specs: 75Ω coaxial | 69.9 pF/m

???? Order Support

Email sales@ubestplc.com or call +86 158 8020 0923

✅ Suffix Details

• -05: 50mm unthreaded length
• -08: 80mm case length
• -10: 1.0m cable
• -12: ClickLoc connector
• -00: No agency approvals needed

????️ Quality Promise

• 1-year warranty
• 304 stainless steel body
• PPS tip material
• Same size as 3300 RAM probes

Document Download here: 3300 XL NSv Proximity Transducer System Datasheet
