330905-05-10-05-02-00 Bently Nevada 3300 Nsv Proximity Probe

Description

Essential Details

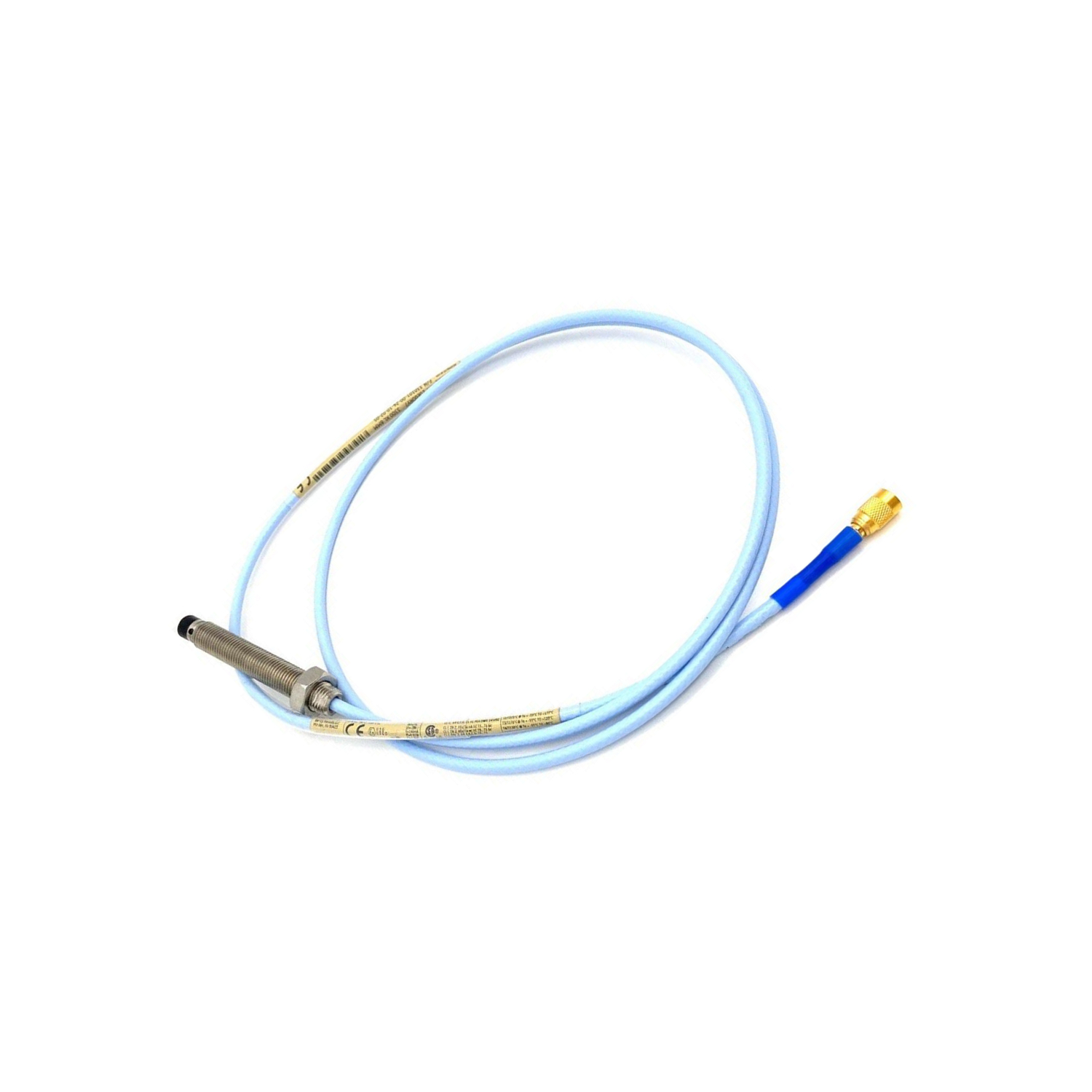

Bently Nevada 3300 NSv Probe (Part# 330905-05-10-05-02-00). New in Box with 1-Year Full Warranty. Direct upgrade for 3300 RAM systems.

Part Code Breakdown

What means:
• 330905 = Base model (M10x1 thread)
• -05 = 50mm smooth section
• -10 = 100mm case length
• -05 = 20″ cable (0.5m)
• -02 = Standard ClickLoc connector
• -00 = No special certifications

Key Upgrades

• 2X Better Chemical Protection vs older probes
• Works in -62°F to 351°F extremes
• Detects small shafts: 0.35″ minimum
• Seals pressure with Viton O-ring

Installation Made Simple

• Best gap: 40 mils (1.0mm)
• Max twist force: 5 in-lb
• Bend radius: 1.0 inch minimum
• Use 3-core shielded cables

Performance Specs

• Wire resistance: 4.0Ω ±0.5Ω
• Signal range: 60 mils (1.5mm)
• Accuracy: ±0.06mm
• Max cable: 1,000 feet

Pro Tips

• Hand-tighten only – no tools needed
• For small shafts (<0.5″), reduce gap by 25%
• Request pressure testing if required

Need Help?

Email: sales@ubestplc.com
Free setup guidance available

Document Download here: 3300 XL NSv Proximity Transducer System Datasheet
