Description
Product Overview

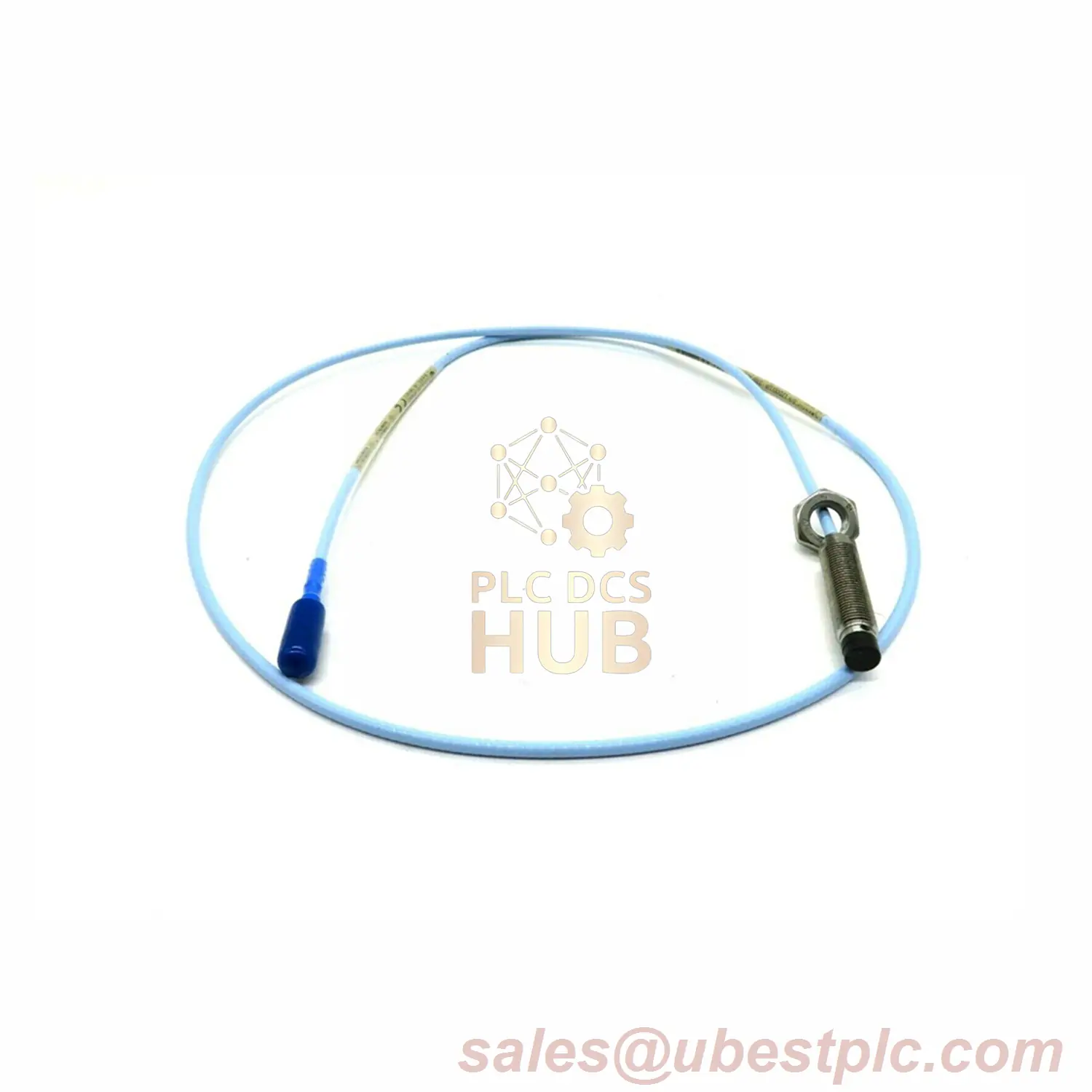

The 330905-05-13-05-01-00 is a Bently Nevada 3300 NSv Probe for machine vibration monitoring. New & original with 1-year warranty. Works in extreme temperatures (-52°C to +177°C).
Key Specs for 330905-05-13-05-01-00
- Thread type: M10X1 | Case length: 130mm
- Cable length: 0.5m (20″) | Resistance: 4.0Ω ±0.5
- Voltage range: -1V to -13V | Gap setting: 1.0mm (40 mils)
Installation Guide
- Max torque: 7.5N·m | Thread depth: 15mm max
- Bend radius: Keep >25.4mm
- Wiring: Use 16-24 AWG cables (max 305m)
Cable Details
- Connector: ClickLoc with protector
- Cable type: 75Ω FEP coaxial
- Shield resistance: 0.066Ω/m
Important Notes
- Target size: Min 8.9mm, ideal 13mm+
- Materials: PPS tip | 304 steel case
- Pressure seal: Viton O-ring (untested)
Support & Warranty
12-month warranty included. Need help?
