Product Overview

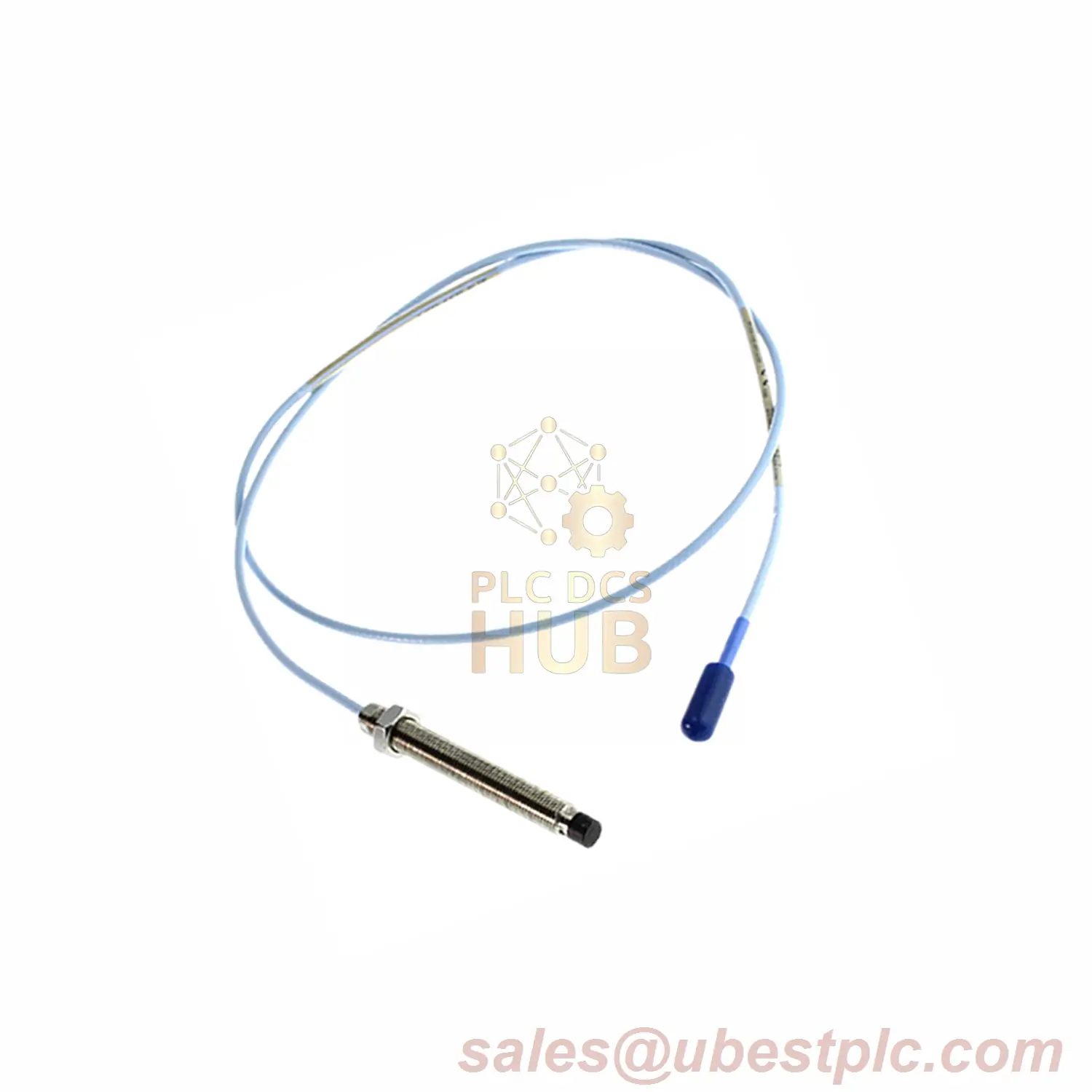

Bently Nevada 330905-05-13-10-02-00 3300 NSv Proximity Probe is a new, factory-sealed sensor for industrial machines. It has a 1-year warranty and works in extreme temperatures (-52°C to +177°C). Fits machines needing M10x1 threads and 1.0-meter cables. Works with older 3300 RAM probes.
Key Features for 330905-05-13-10-02-00
- Easy Setup: Tighten to 7.5 N•m (max 22.6 N•m).
- Accurate: Measures gaps from 0.25 mm (10 mils) to 1.75 mm (70 mils).
- Durable: Stainless steel body and chemical-resistant tip.
- Fast Response: Works up to 10,000 Hz with long cables (305 meters max).
Technical Details
- Power Use: 4.2Ω resistance (1-meter cable).
- Cable Specs: Shield resistance 0.066Ω/m, capacitance 69.9 pF/m.
- Wire Size: Use 16-24 AWG shielded cables.
- Pressure Seal: Viton O-ring (not tested by factory).
What’s Included
- Probe with ClickLoc connector.
- No agency certifications (-00 option).
- Works with cables up to 7 meters.
