???? Product Overview

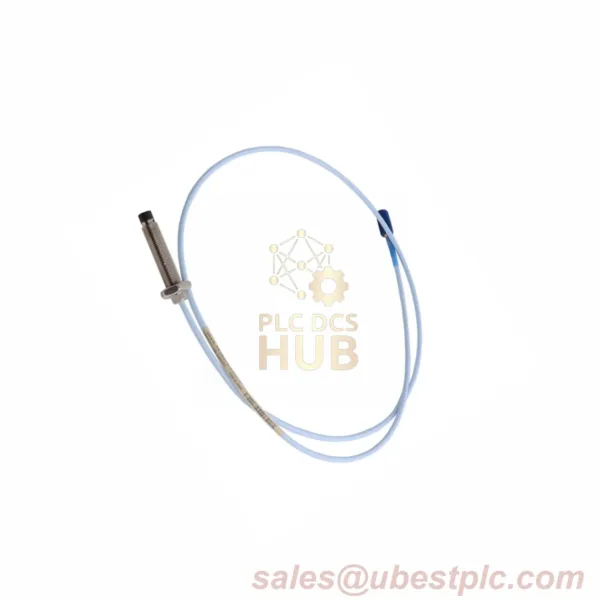

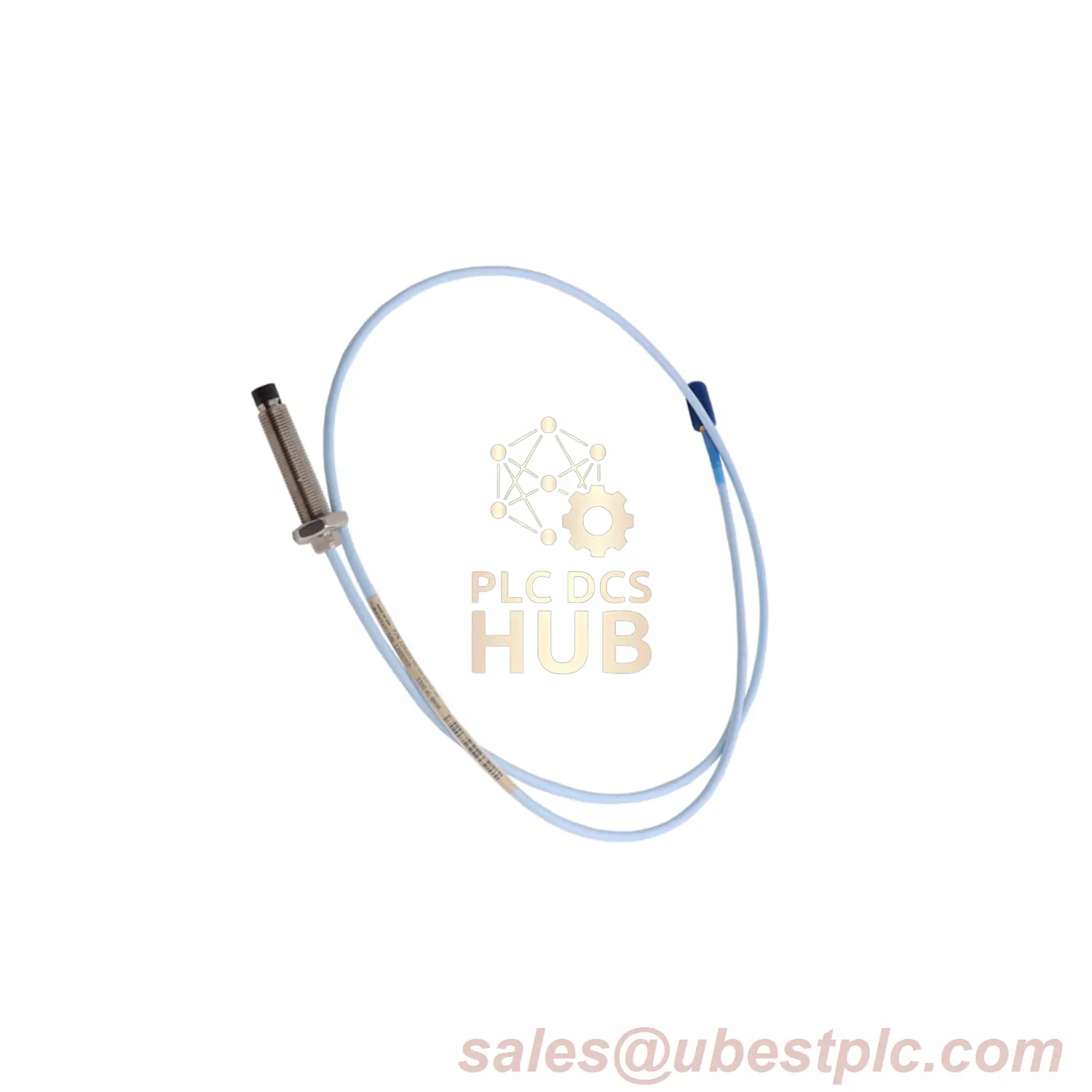

New & Original Bently Nevada 3300 NSv Proximity Probe 330905-05-13-10-12-05 with 12-month factory warranty. Designed for industrial process compressors, featuring enhanced chemical resistance and superior side-view performance compared to legacy models.
???? Complete Suffix Breakdown for 330905-05-13-10-12-05
- 330905: Base model
- -05: Multiple agency approvals (ATEX, IECEx, CSA)
- -13: 130mm overall case length
- -10: 1.0m unarmored cable
- -12: Miniature coaxial ClickLoc connector
- -05: FluidLoc cable with IP67 rating
???? Enhanced Technical Specifications
| Probe Resistance | 4.2Ω ±0.5Ω @1.0m |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Frequency Response | 0-10kHz (±3dB) with 305m wiring |
| Pressure Seal | Viton O-ring (150°C max) |
| Thread Engagement | M10x1 (15mm max) |
⚙️ Installation Details
- Torque Specs: 7.5N·m (recommended) / 22.6N·m (max)
- Bend Radius: 25.4mm (1.0″) minimum
- Wiring Gauge: 0.2-1.5mm² (16-24 AWG)
- Cable Shielding: Triad configuration required
???? Critical Performance Data
- Scale Factor: 7.87V/mm ±12.5%
- Linearity Error: <±0.06mm
- Target Size: 13mm min (0.5″ recommended)
- Temp Range: -52°C to +177°C (-62°F to +351°F)
???? Contact Support
For technical queries or bulk orders:
sales@ubestplc.com
???? Compatibility Assurance
Fully backward-compatible with 3300 RAM probes and extension cables. PPS probe tip and 304 SST housing ensure durability in harsh environments.
