Description
Product Overview

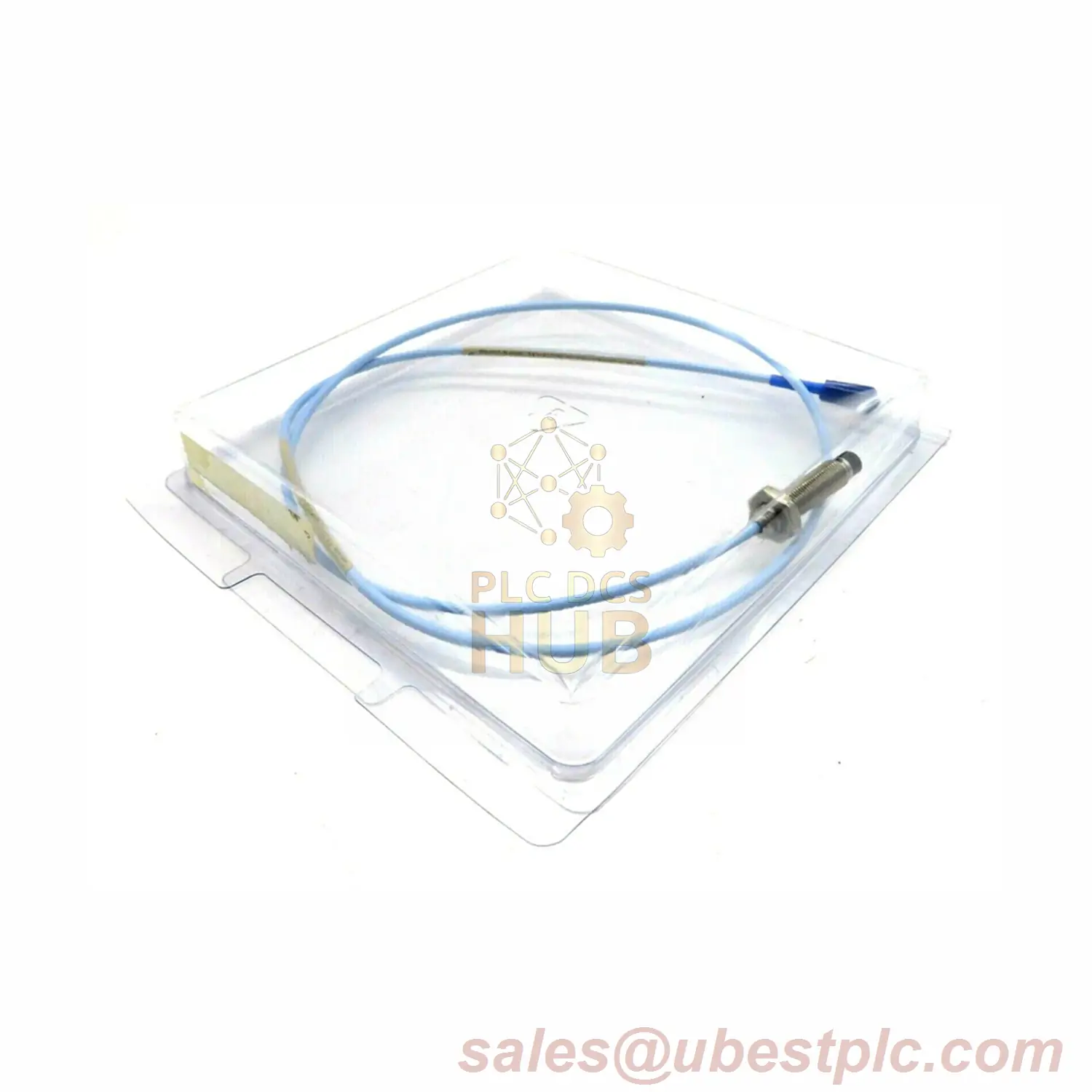

Bently Nevada 330905-05-25-05-12-05 3300 NSv Proximity Probe is new, factory-sealed with a 1-year warranty. Built for extreme conditions (-52°C to +177°C). Features M10x1 threads, 250 mm case length, and a 0.5-meter FluidLoc cable. Works with older 3300 RAM systems.
Key Features for 330905-05-25-05-12-05
- Easy Install: Tighten to 7.5 N•m (max 22.6 N•m).
- Precise: Measures gaps from 0.25 mm (10 mils) to 1.75 mm (70 mils).
- Durable: Stainless steel body + chemical-proof PPS tip.
- FluidLoc Cable: Resists oils and fluids for harsh environments.
Technical Specs
- Power Use: 4.0Ω ±0.5 (0.5m cable).
- Cable Shield: 0.066Ω/m resistance, 69.9 pF/m capacitance.
- Wiring: Use 16-24 AWG shielded cables (up to 305 meters).
- Frequency: Works at 10,000 Hz with minimal signal loss.
What’s Included
- Certifications: -05 (multiple agency approvals).
- Connector: 12-ClickLoc with FluidLoc cable.
- Pressure Seal: Viton O-ring (custom tests available).
