Description
???? Industrial-Grade Precision

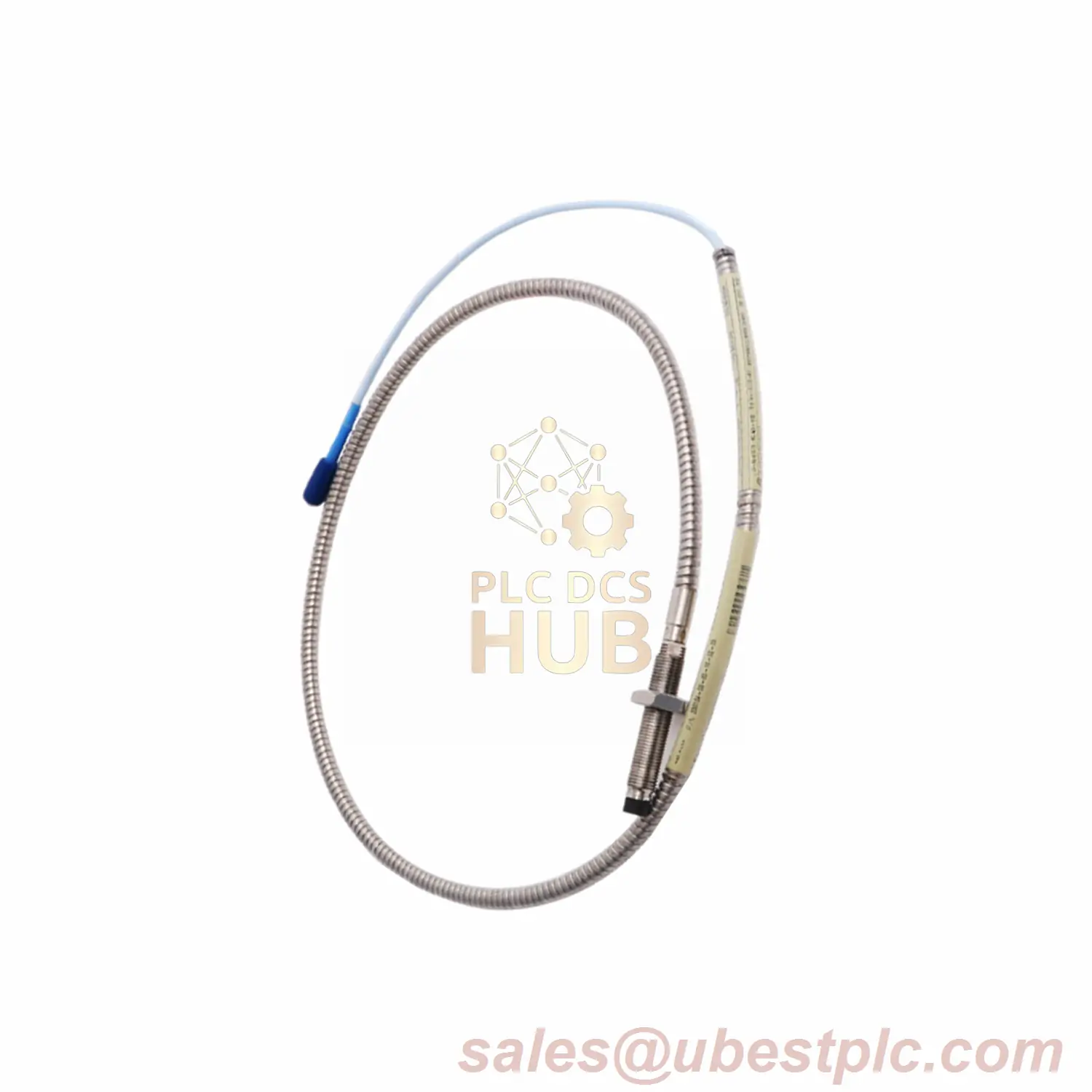

Bently Nevada 330905-05-25-10-12-05 NSv Probe features 250mm extended case for deep installations. Factory-sealed with 12-month warranty.
???? Core Specifications
- Part#: 330905-05-25-10-12-05
- Thread: M10x1 | 250mm case
- Cable: 1.0m FluidLoc (39″) with ClickLoc connector
- Certifications: Multi-agency approved
- Temp Range: -62°F to +351°F
???? Advanced Measurements
- Direct Upgrade: Replaces 3300 RAM probes
- Optimal Gap: 1.0mm (40 mils)
- Signal Error: ±0.06mm max
- Wiring: Supports 1,000 ft cables
- Seal: Viton O-ring (15mm thread depth)
⚙️ Installation Tips
- Torque: 5 in•lb max (hand-tight)
- Bending: Keep ≥1.0″ radius
- Target Size: Best for ≥0.5″ shafts
- Cable Data: 75Ω | 0.22Ω/m resistance
???? Suffix Details
- -05: 50mm unthreaded section
- -25: 250mm full case length
- -10: 1.0 meter cable
- -12: ClickLoc + FluidLoc cable
- -05: Multi-certification compliant
????️ Durability Features
- 1-year warranty
- PPS sensor tip | 304 SST body
- Handles extreme temps
- Same specs as 3300 RAM series
