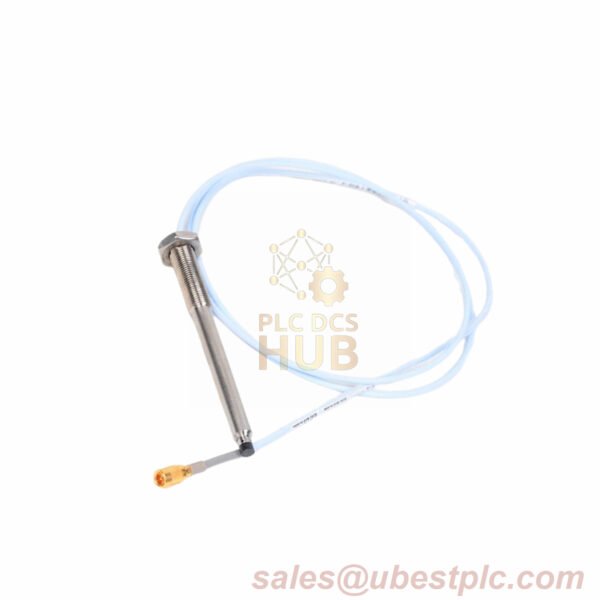

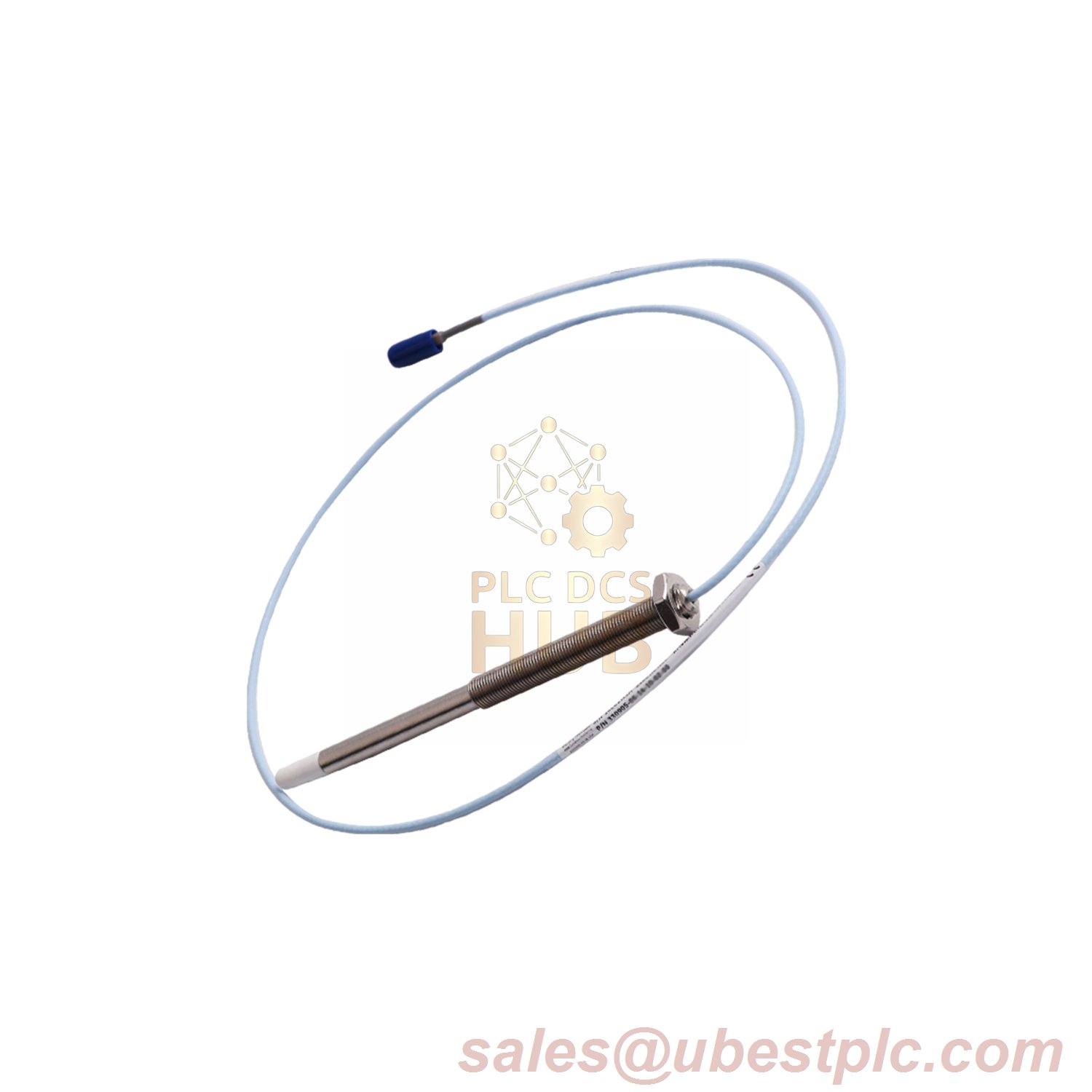

The Bently Nevada 330907-05-30-05-12-05 is a 3300 NSv Reverse Mount Probe engineered for extreme industrial environments requiring multi-agency certifications and fluid resistance. Featuring M10x1 threads, FluidLoc™ cable, and global approvals, this probe excels in chemical-laden process compressors. Its reverse-mount design and Viton® O-ring ensure reliable performance under aggressive conditions (-52°C to +177°C) while meeting international safety standards.
Technical Specifications
- Model: 330907-05-30-05-12-05
- Suffix Code Breakdown:
- 05-30: M10x1 reverse-mount threads
- 05: 0.5 m (20″) cable length
- 12: FluidLoc™ cable + ClickLoc™ connector
- 05: CSA/ATEX/IECEx multi-certified
- Electrical:
- DC Resistance: 4.0 Ω ±0.5 (0.5m length)
- Field Wiring: Shielded triad cable (0.2-1.5 mm²/16-24 AWG)
- Max Distance: 305 m (1,000 ft) to Proximitor
- Linear Range: 1.5 mm (60 mils) | Optimal Gap: 1.0 mm (40 mils)
- Mechanical:
- Tip Material: PPS (chemical-resistant)
- Case Material: AISI 304 SST (corrosion-proof)
- Torque: 7.5 N·m (66 in·lb) recommended | 22.6 N·m (200 in·lb) max
- Environmental:
- Temperature: -52°C to +177°C (-62°F to +351°F)
- Certifications: CSA, ATEX, IECEx (Zone 1/21)
- Seal: Viton® O-ring (avoid sustained < -34°C/-30°F)
Key Applications
- Offshore gas compressors with hydrocarbon exposure
- Chemical processing pumps handling corrosive fluids
- ATEX-certified rotating machinery
