330908-00-16-10-02-00 Bently Nevada Proximity Probe Without Armor

Description

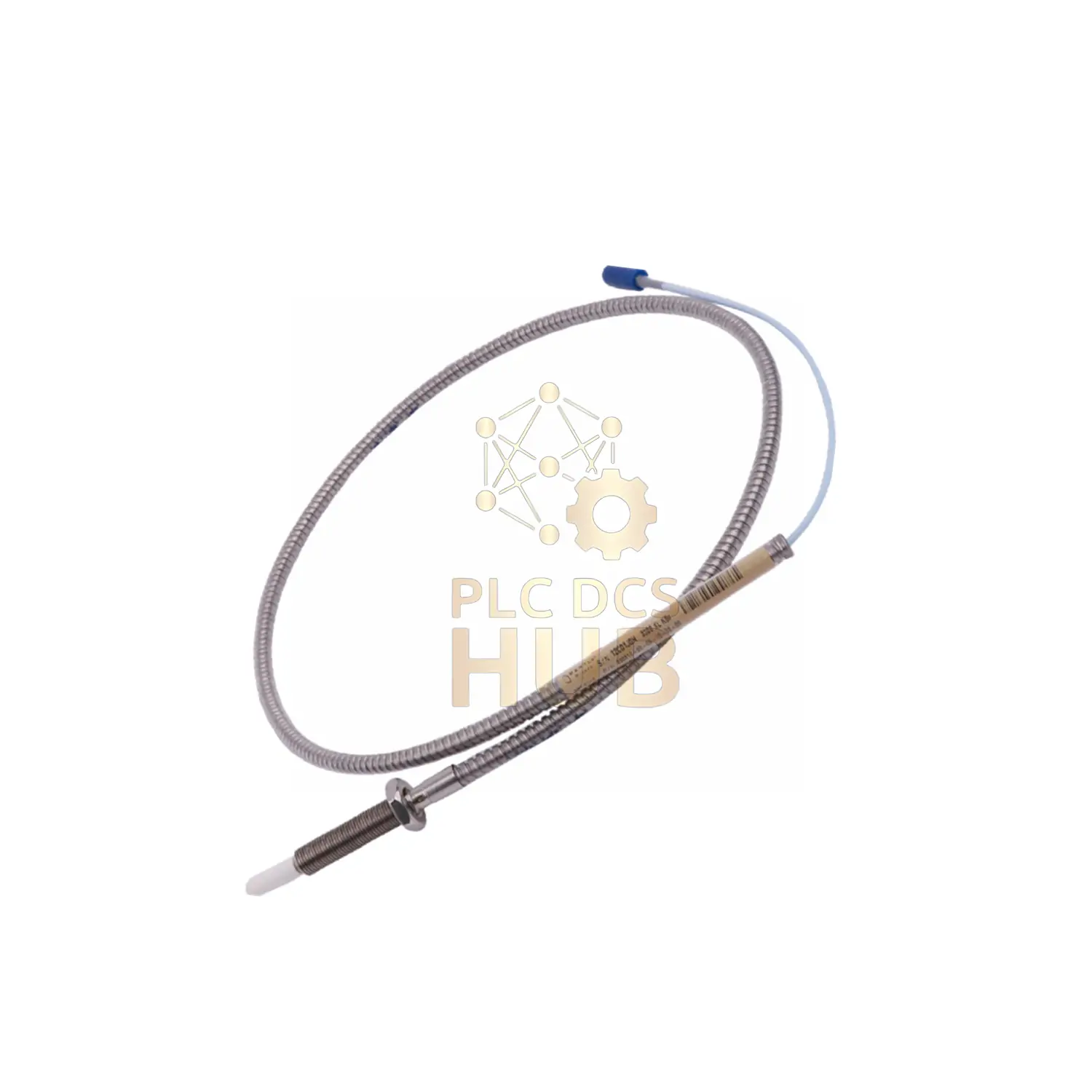

Bently Nevada 330908-00-16-10-02-00 NSv Industrial Proximity Sensor

Product Overview

Precision vibration monitoring probe for critical machinery protection. Features stainless steel construction and reliable ClickLoc connection. Made in USA.

Complete Suffix Breakdown

• Base Model: 330908 (NSv Probe, 3/8-24 UNF thread)
• -00: Unthreaded Length = 0 inch
• -16: Case Length = 1.6 inch
• -10: Cable Length = 1.0 meter
• -02: ClickLoc connector + standard cable
• -00: Agency Approvals = Not required

Technical Specifications

• Electrical Resistance: 4.2Ω ±0.5 (center to outer conductor)
• Cable Impedance: 75Ω coaxial with FEP insulation
• Temperature Resilience:
  • Operational: -52°C to +177°C
  • Storage: -52°C to +177°C
  • Seal vulnerability: Below -34°C sustained
• Mechanical Properties:
  • Thread: 3/8-24 UNF
  • Max torque: 33.9 N•m
  • Thread engagement: 0.563 inch max
• Physical Construction:
  • Case: AISI304 stainless steel
  • Tip: PPS thermoplastic
  • Seal: Viton O-ring
  • Weight range: 14-150g

Installation Guide

• Apply recommended torque of 11.3 N•m (100 in•lb)
• Do not exceed 0.563 inch thread engagement
• Ensure clean mating surfaces before installation

Package Contents

• 330908-00-16-10-02-00 probe unit
• Installation specifications sheet
• Material composition documentation

Global Shipping

Express delivery via FedEx, UPS, or DHL. Tracking provided within 24 hours.

Technical FAQ

Q: What’s the difference between -16 and -18 case length options?
A: -16 denotes 1.6 inch case length versus 1.8 inch for -18. Select based on mounting clearance.

Q: Can this probe handle high-pressure environments?
A: Designed for differential pressure sealing via Viton O-ring. Not pressure-tested before shipment.

Q: Is agency certification available for this model?
A: Suffix -00 indicates no certifications. Contact us for certified variants if required.
