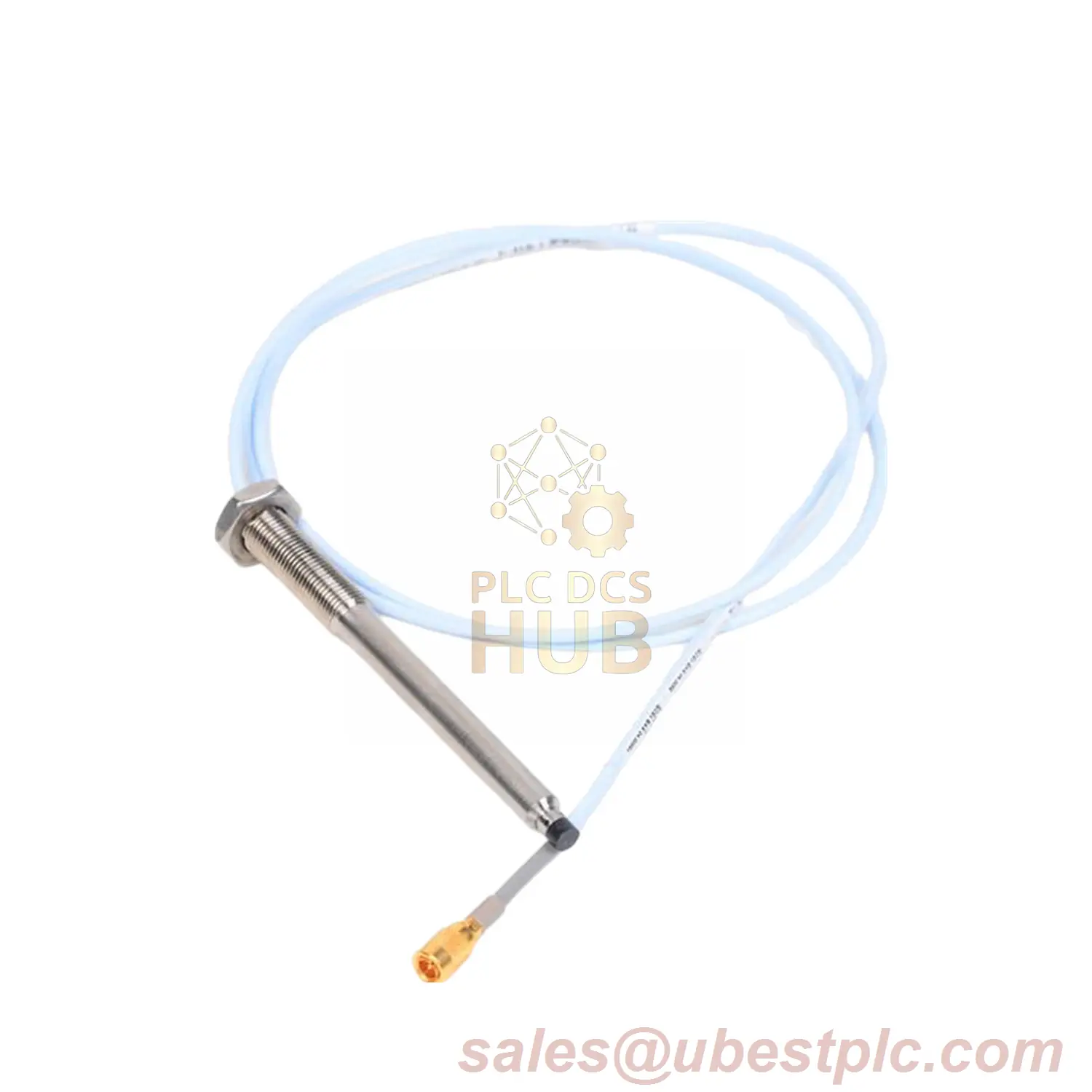

330908-12-08-05-02-05 Bently Nevada Proximity Probe Without Armor

Description

3300 NSv Proximity Probe | Ultra-Compact Industrial Sensor

Core Identification

Model: 330908-12-08-05-02-05 | Origin: U.S.A Manufactured
Thread: 3/8-24 UNF (Unarmored) | Case: AISI304 SST
Tip: PPS Polymer | Cable: 75Ω FEP Coaxial

Suffix Configuration Decoder

▪ 12: Unthreaded length 1.2″ (30.5mm)
▪ 08: Ultra-short case 0.8″ (20.3mm)
▪ 05: Total cable 0.5m/20″
▪ 02: ClickLoc connector + FEP insulation
▪ 05: Multi-agency certifications

Mechanical Specifications

✓ Torque Limits: Max 33.9N·m | Optimal 11.3N·m
✓ Thread Engagement: 0.563″ (14.3mm) maximum
✓ Seal Material: Viton® O-ring (-26°C to +205°C stability)
✓ Mass Range: 14-150g (0.5-5.3oz)

Performance Assurance

• DC Resistance: 4.0Ω±0.5Ω @0.5m length
• Thermal Range: Operates -52°C to +177°C
• Cold Warning: Avoid sustained <-34°C (-30°F)
• Warranty: 12-month defect protection

Critical Design Notes

▲ Case Profile: Shortest variant at 0.8″ (20.3mm)
▲ Cable Options: 0.5/1/5/7m FEP insulation
▲ Pressure-sealed design (non-tested pre-shipment)
