Product Overview

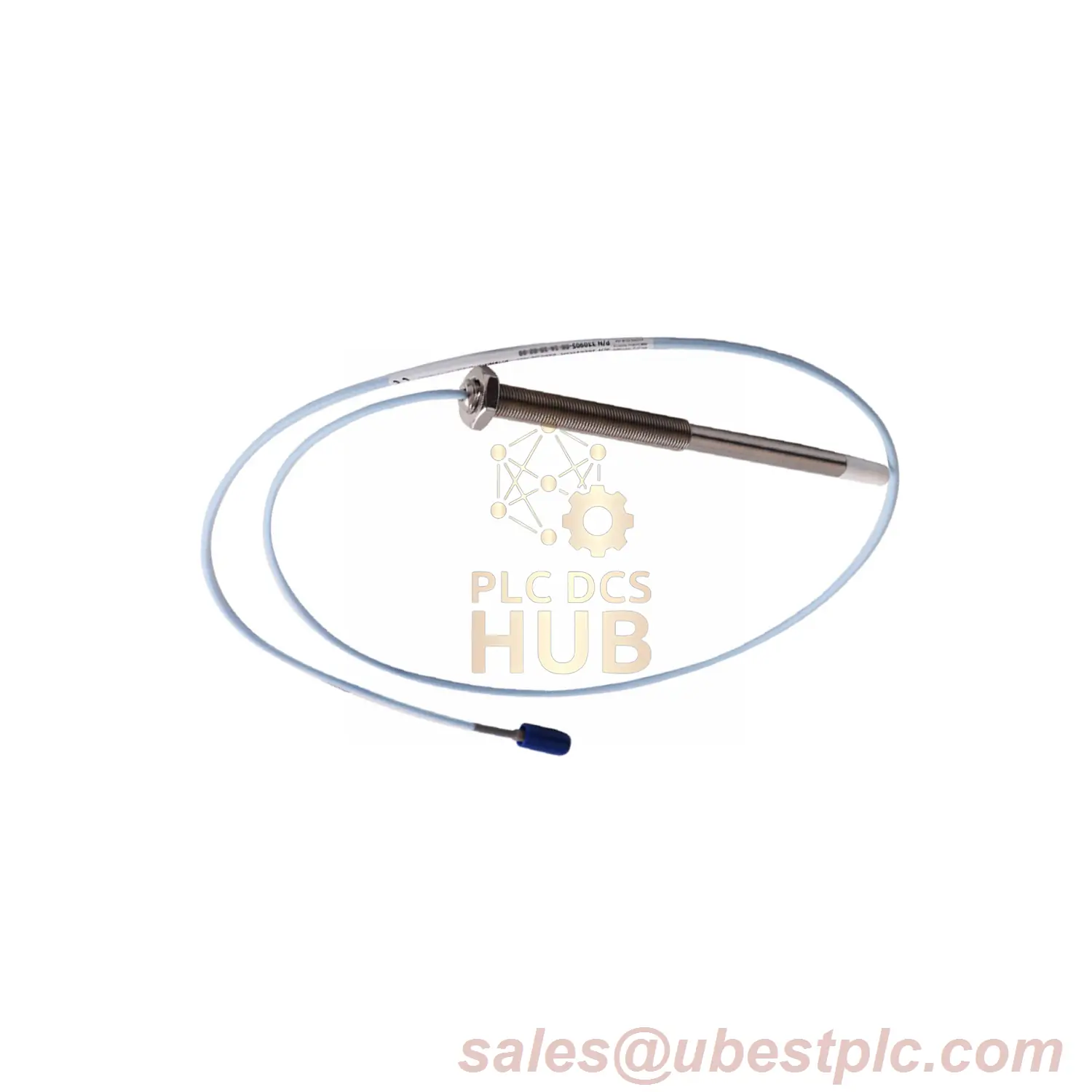

3300 NSv Proximity Probe (Model: 330908-12-16-05-02-00) – Built in the USA for reliable monitoring. Features a AISI304 stainless steel case and PPS tip for toughness.
Key Specs
- Unthreaded Length: 1.2 in
- Case Length: 1.6 in
- Cable: 0.5 m (20 in)
- Connector: Mini ClickLoc coaxial
- Approvals: None required (00)
Performance
- Resistance: 4.0 Ω ±0.5 (0.5 m cable)
- Max Torque: 33.9 N•m | Safe Torque: 11.3 N•m
- Temp Range: -52°C to +177°C (Avoid below -34°C)
- Weight: 14–150 g
Warranty & Support
Includes a 1-year warranty. Sealed with a Viton O-ring (not pressure-tested). Questions? Email sales@ubestplc.com or call +86 180 3000 5825.
More Details
Cable options: 0.5/1/5/7 m. Works with 75 Ω systems. FEP insulation resists chemicals. Note: Do not over-tighten threads (max 0.563 in).
