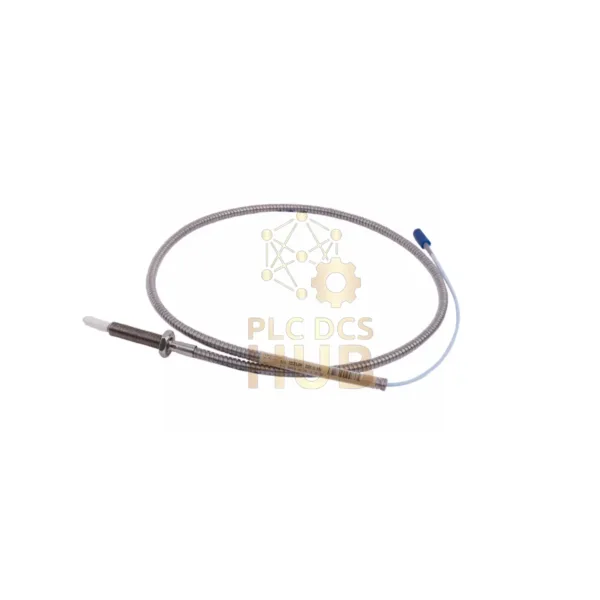

Bently Nevada 3300 NSv Proximity Probe: Industrial-Grade Vibration Sensing
Product Description
Precision vibration monitoring probe (PN: 330908-12-46-10-02-00) for machinery diagnostics. Key features:
- Extended 4.6″ stainless steel case for deep installations
- Chemical-resistant PPS tip material
- 1.0m FEP-insulated coaxial cable with ClickLoc connector
- Viton O-ring pressure seal design
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Full Suffix Breakdown:
- 330908: Base model (3/8-24 UNF)
- 12: 1.2″ unthreaded length
- 46: 4.6″ case length
- 10: 1.0m cable
- 02: ClickLoc connector
- 00: No agency approvals
- Electrical: 75Ω impedance, 4.2Ω ±0.5Ω resistance
- Temp Range: -52°C to +177°C
- Weight: 14-150g (0.5-5.3oz)
- Seal Material: Viton O-ring
Installation Notes
- Max Torque: 33.9 N•m (300 in•lb)
- Thread Engagement: Do not exceed 0.563″
- Critical: Avoid temperatures below -34°C for extended periods
Compatibility & Certifications
- Works with all 3300 NSv monitoring systems
- No agency certifications (Option 00)
- Miniature ClickLoc connector
Shipping & Support
- Includes: Probe, specification sheet
- Delivery: FedEx/UPS/DHL (1-3 business days)
- Warranty: 12-month defect coverage
Frequently Asked Questions
- Q: Why choose 4.6″ case length?
A: Allows installation in deeper mounting holes - Q: Pressure rating?
A: Seals differential pressure (not tested) - Q: Cable customization?
A: Available in 0.5m, 1m, 5m or 7m lengths - Q: Chemical resistance?
A: PPS tip resists fuels, solvents and acids
Model Comparison
| Feature | Current Model 330908-12-46-10-02-00 | Compact Model 330908-12-08-05-02-00 | Certified Model 330908-00-46-05-02-05 |
|---|---|---|---|
| Case Length | 4.6in | 0.8in | 4.6in |
| Cable Length | 1.0m | 5.0m | 5.0m |
| Approvals | None | None | Multiple |
| Threaded Section | 1.2in unthreaded | 1.2in unthreaded | Fully threaded |
