Description

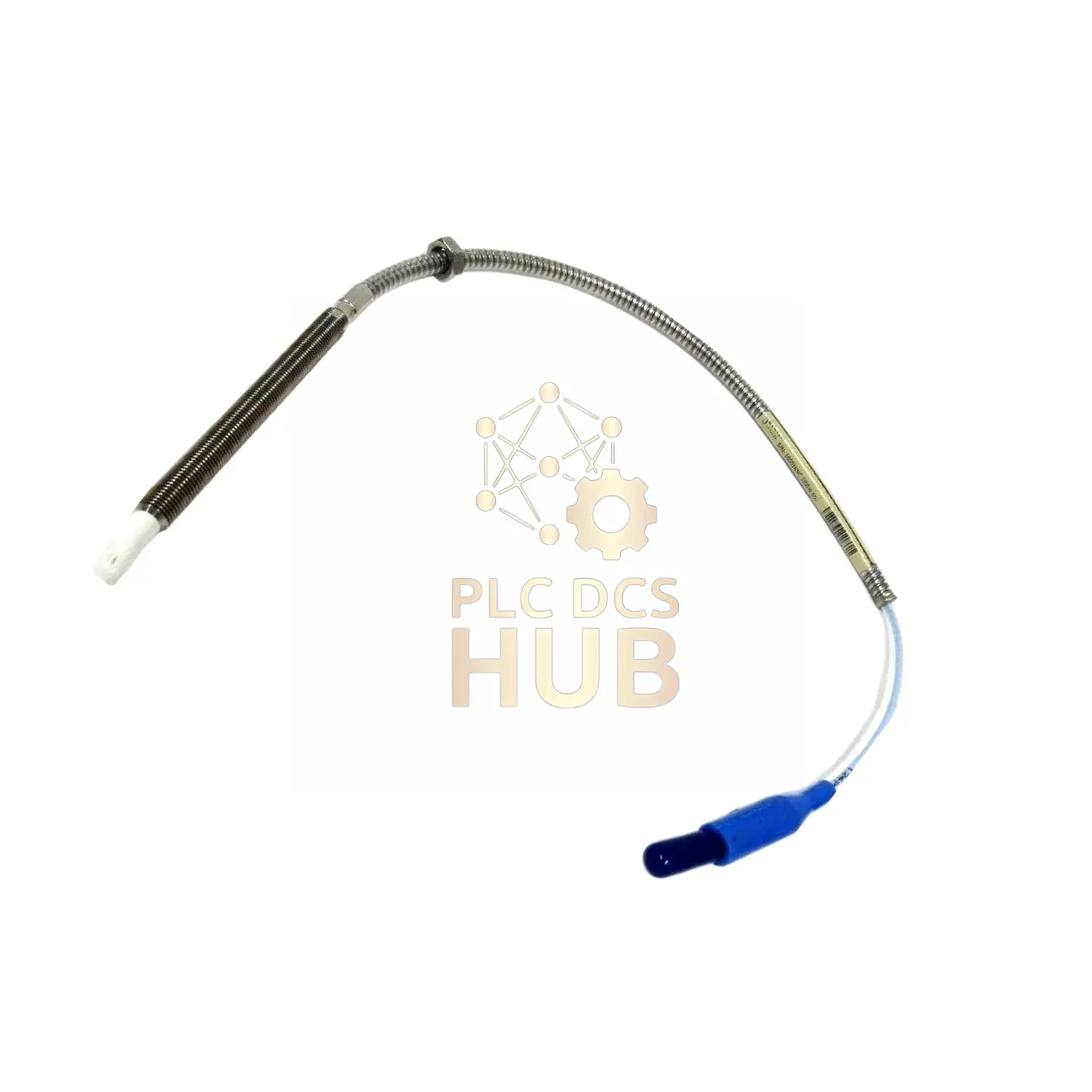

Bently Nevada Armored Vibration Probe – Compact Industrial Defender
Technical Specifications
| Electrical | Physical |
| Resistance: 4.0 ± 0.5 Ω | Case Length: 1.3 in |
| Cable Type: 75Ω Coaxial | Cable Length: 0.5m (20 in) |
| Connector: ClickLoc+Protector | Thread: 3/8-24 UNF |
| Insulation: FEP | Weight: 80-120g |
| Environmental | Mechanical Limits |
| Temp Range: -52°C to +177°C | Thread Engagement: 0.563 in max |
| Humidity: IEC 68-2-3 compliant | Torque Full: 11.3 N•m |
| Seal: Viton O-ring | Torque First Threads: 7.5 N•m |
Product Configuration
- Model: 330909-00-13-05-01-05
- Armor: Stainless steel protected
- Certifications: Multiple global approvals
- Tip Material: PPS polymer
Installation Guide
- Max thread depth: 0.563 inches
- Recommended torque: 11.3 N•m
- First 3 threads max: 7.5 N•m
- Keep above -34°C during storage
- Use connector protector during install
Package Contents
Armored probe with 0.5m cable
ClickLoc connector with protector
Installation instructions
12-month performance warranty
Global Shipping
FedEx Express | UPS Air | DHL Worldwide
Fast delivery: 1-3 business days
Technical Questions
Q: What’s the armor thickness?
A: 0.8mm stainless steel flexible armor
Q: Can I bend the armored cable?
A: Minimum 50mm bend radius recommended
Q: What’s the protector for?
A: Prevents connector damage during installation
Q: Is calibration included?
A: Factory calibrated, no field calibration needed
