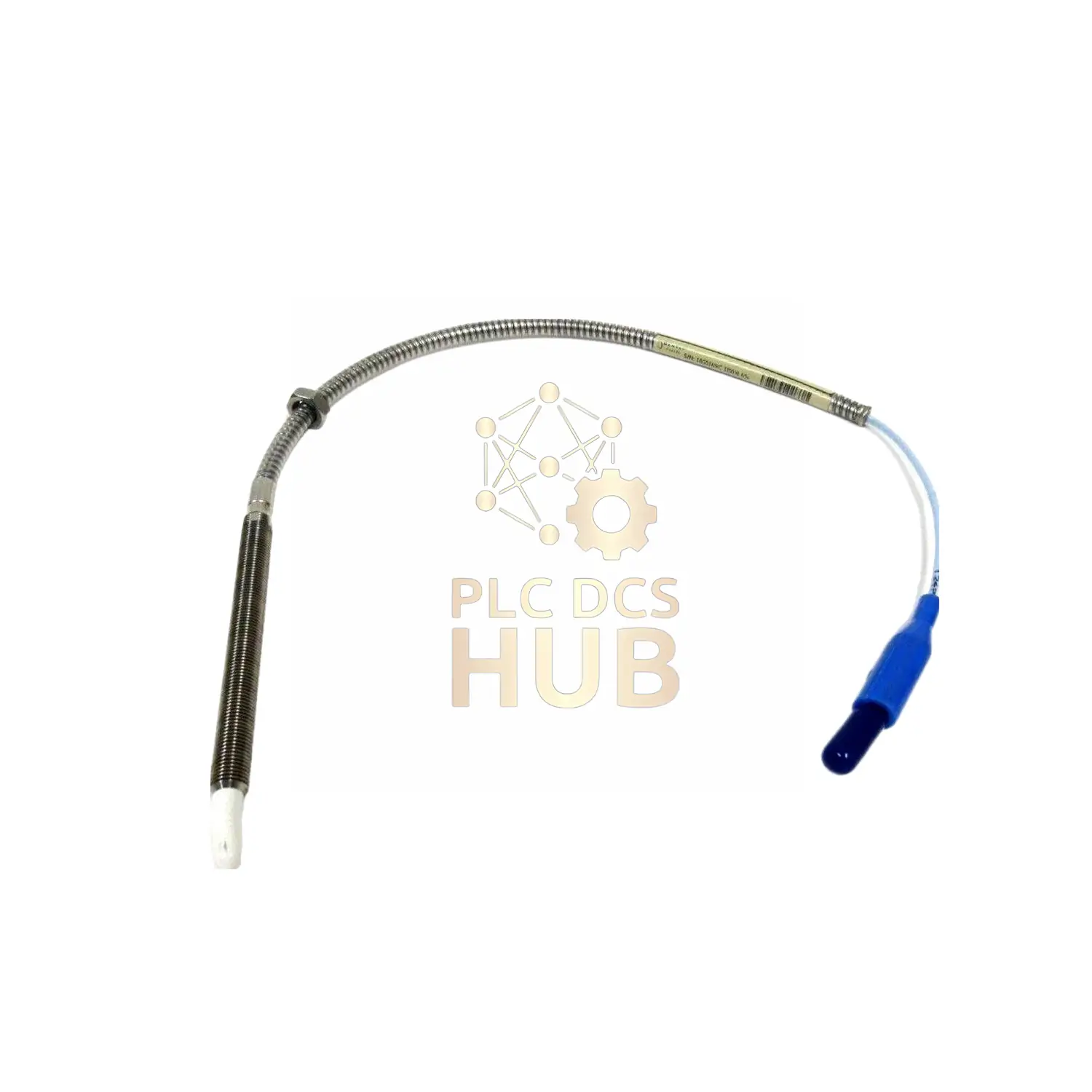

330909-00-20-05-01-05 Bently Nevada – Proximity Probe With Armor

Description

Bently Nevada 330909-00-20-05-01-05 – Compact Certified Sensor

Configuration Analysis

• Platform: 3300 NSv Proximity Probe
• Unthreaded Length: -00 (0.0 inch)
• Case Size: -20 (2.0 inches)
• Cable Length: -05 (0.5 meter)
• Connection: -01 (ClickLoc with protector)
• Certification: -05 (Multiple approvals)

Technical Specifications

• Electrical Performance
  • DC Resistance: 4.0Ω ±0.5
  • Signal Type: -200mV to -18V DC
  • Cable Impedance: 75Ω coaxial
• Environmental Ratings
  • Operating Temp: -52°C to +177°C
  • Vibration Tolerance: 15g @ 2kHz max
  • Seal Type: Viton O-ring
• Physical Properties
  • Case Material: AISI304 stainless steel
  • Armor: Stainless steel protection
  • Weight: 85g (typical)
  • Thread: 3/8-24 UNF
• Compliance Standards
  • ATEX Category 3G
  • IECEx Ex ec IIC T4 Gc
  • CSA Class I, Div 2

Installation Guide

• Max Thread Engagement: 0.563 inch
• First Threads Torque: 7.5 N•m max
• Full Thread Torque: 11.3 N•m recommended
• Always use connector protector during install

Package Contents

• 330909-00-20-05-01-05 probe
• ClickLoc connector protector
• Installation torque guide

Warranty & Shipping

• 12-month manufacturer warranty
• Global delivery: FedEx, UPS, DHL
• Hazardous material certified shipping

Compare With Similar Models

• 330909-00-50-10-01-05 – 5″ case, 1m cable, same certifications
• 330909-00-99-10-02-00 – Special length, standard connector, no certifications
