Description

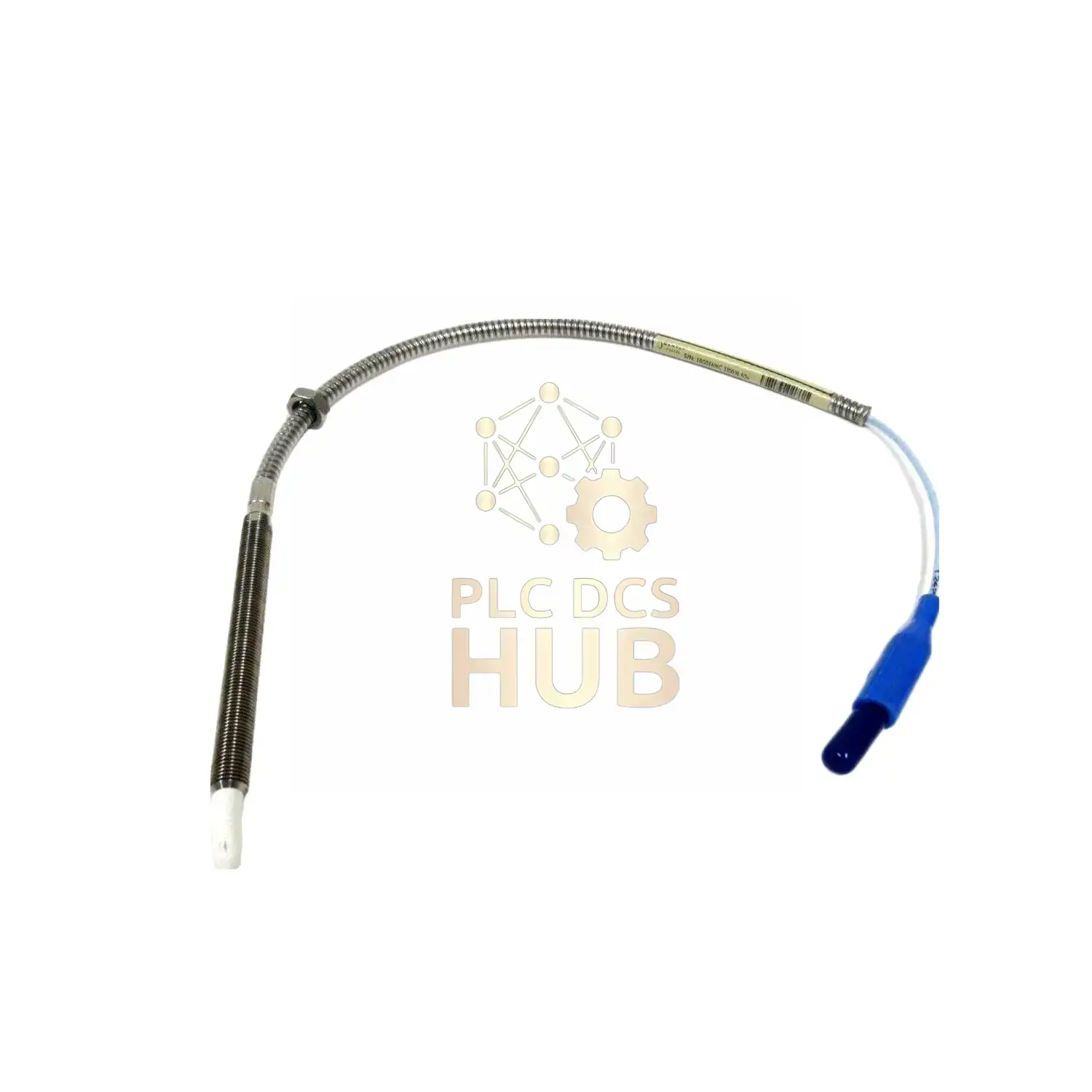

Armored 3300 NSv Proximity Probe with Protective Connector
Industrial-grade vibration sensor with armored casing and connector protector. Made in USA for demanding environments. Features full 3/8-24 UNF threading and 2.0in case length.
Key Specifications
Identification
- Part Number: 330909-00-20-10-01-00
- Brand: Bentley Nevada
- Armor Type: Full thread coverage
Electrical
- Resistance: 4.2Ω ±0.5Ω
- Cable Length: 1.0 meter
- Impedance: 75Ω coaxial
Mechanical
- Case Length: 2.0 in
- Thread: 3/8-24 UNF
- Weight: 90-110g
Installation Specifications
- Max Torque (full thread): 33.9 N•m
- Max Torque (first 3 threads): 22.6 N•m
- Recommended Torque: 11.3 N•m
- Thread Engagement Limit: 0.563 in
- Connector: ClickLoc with protective sleeve
Environmental Ratings
- Operating Range: -52°C to +177°C
- Sealing: Viton O-ring pressure seal
- Cable Insulation: FEP fluoropolymer
- Tip Material: Chemical-resistant PPS
Shipping & Warranty
- 12-month product warranty
- Global shipping: FedEx, UPS, DHL
- Tracking provided for all shipments
Technical FAQ
Q: What does “with armor” mean?
A: Full metal threading protects against physical damage.
Q: What’s the connector protector?
A: Reinforced sleeve prevents cable strain at connection point.
Q: Minimum installation clearance?
A: Requires 2.5in clearance for safe installation.
Q: Vibration limits?
A: Rated for continuous 15g vibration (20g peak).
Q: Cable replacement possible?
A: Not field-replaceable – entire unit must be replaced.
