330909-00-60-05-01-00 Proximity Probe Bently Nevada With Armor

Description

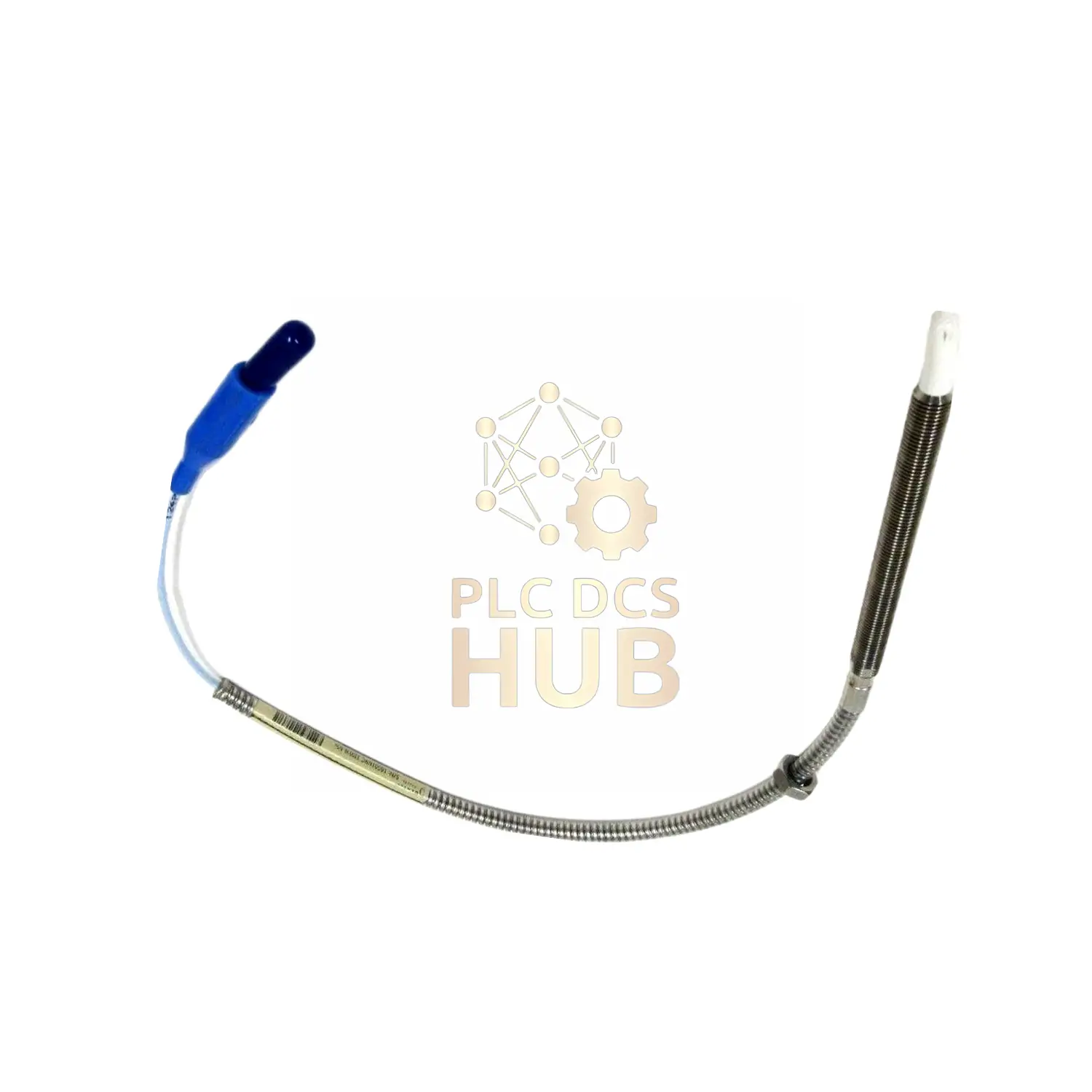

Bently Nevada 330909-00-60-05-01-00 – Mid-Length Armored Probe

Industrial Machinery Protection

6-inch armored sensor with connector protector. 0.5m standard cable. Perfect for medium-depth installations. Made in USA.

Product Configuration Breakdown

• Base Model: 330909 (Armored NSv Probe)
• Unthreaded Length: -00 (0.0 inch)
• Case Length: -60 (6.0 inches)
• Cable Length: -05 (0.5 meter)
• Connection: -01 (ClickLoc with protector)
• Certification: -00 (Not required)

Technical Specifications

• Electrical Properties
  • Resistance: 4.0Ω ±0.5
  • Cable Type: 75Ω coaxial
  • Insulation: FEP material
• Environmental Ratings
  • Operating Temp: -52°C to +177°C
  • Humidity: <3% signal change at 93% RH
  • Pressure Seal: Viton O-ring
• Mechanical Design
  • Case: AISI304 stainless steel
  • Tip: PPS thermoplastic
  • Armor: Stainless steel protection
  • Weight Range: 14-150g
• Torque Specifications
  • Full Thread Max: 33.9 N•m
  • First Threads Max: 22.6 N•m
  • Recommended: 11.3 N•m

Installation Guide

• Thread Type: 3/8-24 UNF
• Max Engagement: 0.563 inch
• Temperature Warning: Avoid below -34°C
• Use connector protector during installation

Package Contents

• 330909-00-60-05-01-00 probe
• ClickLoc connector protector
• Installation guide

Warranty & Shipping

• 12-month manufacturer warranty
• Global delivery: FedEx, UPS, DHL
• Tracking provided

Compare With Similar Models

• 330909-00-65-05-02-00 – 6.5″ case, standard connector
• 330909-00-80-10-02-05 – 8″ case, 1m cable, certified
