Description

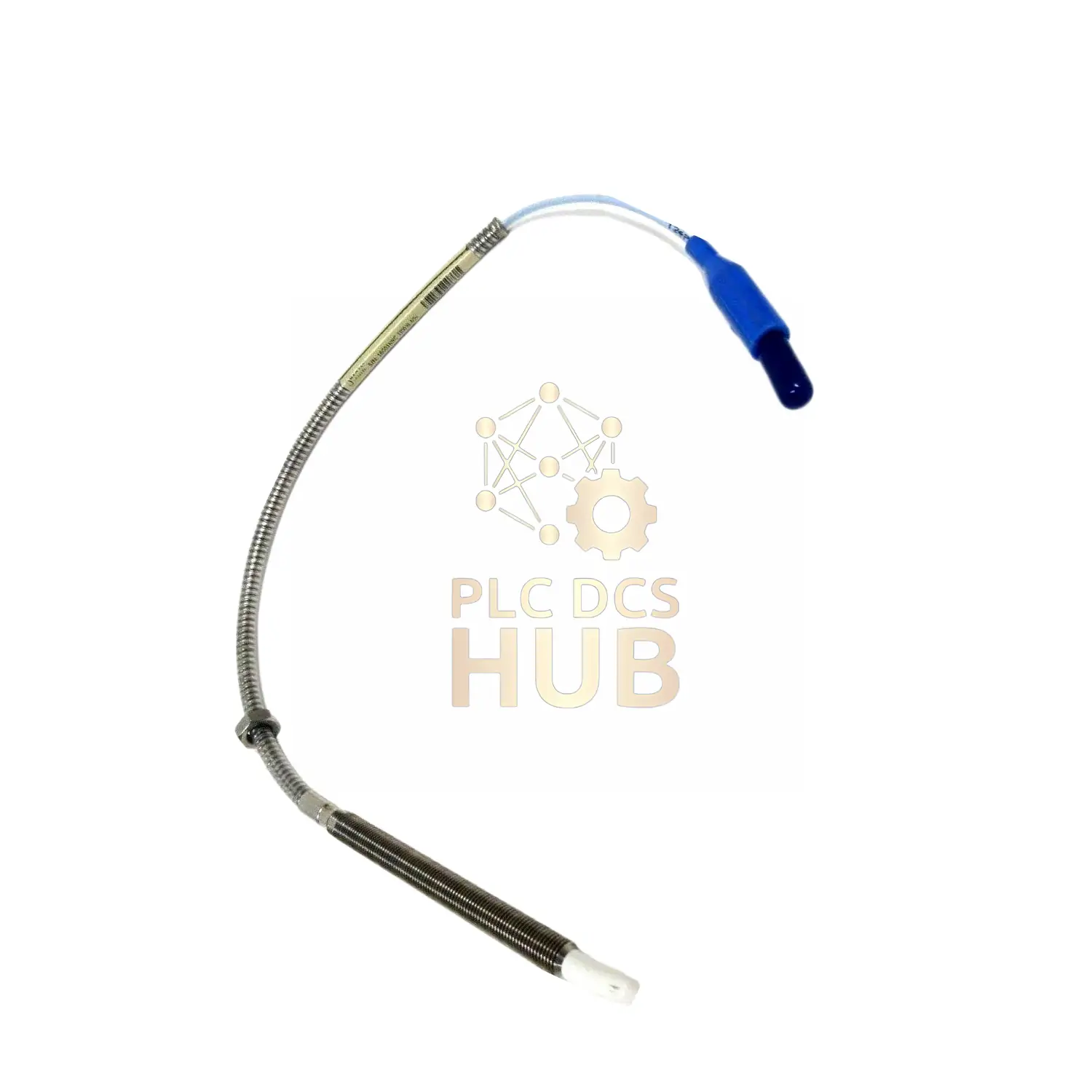

Bently Nevada Long-Reach Armored Probe: Deep Installation Solution
Key Advantages
- Product No: 330909-00-60-10-01-00
- 6.0″ armored case for deep mounting
- Connector protector prevents damage
- Operates in -52°C to +177°C extremes
- Viton O-ring seals pressure differentials
Technical Specifications
- Suffix Details:
- 330909: Armored base
- 00: Fully threaded
- 60: 6.0″ case
- 10: 1.0m cable
- 01: ClickLoc with protector
- 00: No approvals
- Electrical: 75Ω impedance | 4.2Ω ±0.5Ω
- Protection: Connector guard prevents impact damage
- Weight: 0.5-5.3 oz
Installation Guide
- First threads: Max 200 in-lb torque
- Full case: Max 300 in-lb torque
- Warning: Keep above -34°C
Shipping & Warranty
- Delivery: FedEx/UPS/DHL
- Included: Protected probe, documents
- Guarantee: 12 months
Industry Applications
- Deep well pump monitoring
- Industrial extruder shaft measurement
- Geothermal equipment diagnostics
- Ship propulsion system monitoring
FAQ
- Q: Why 6-inch length?
A: For installations requiring deep reach - Q: What’s the connector protector?
A: Shield against physical damage - Q: Minimum bend radius?
A: 25mm for cable longevity
Model Comparison
| Feature | Current Model 330909-00-60-10-01-00 | Medium Model 330909-05-30-05-02-00 | Extra-Long Model 330909-00-80-05-02-00 |
|---|---|---|---|
| Case Length | 6.0in | 3.0in | 8.0in |
| Cable Length | 1.0m | 5.0m | 5.0m |
| Connector Protector | Yes | No | No |
| Unthreaded Section | None | 0.5in | None |
