Description

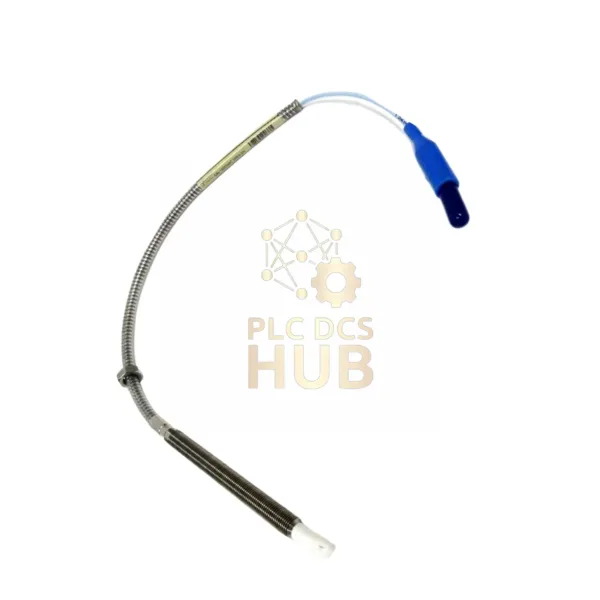

Bently Nevada 3300 NSv Extra-Long Armored Probe
Made in USA. Industry-first 8-inch armored body. For deep-reach installations. Heavy-duty industrial vibration monitoring.
Part Number Breakdown
• 330909 = Base model (armored)
- 00 = No unthreaded section
- 80 = 8.0″ extended case
- 10 = 1.0 meter cable
- 01 = ClickLoc connector with protector
- 00 = No agency approvals required
Technical Advantages
Deep Reach Capability
8″ case reaches through thick insulation
Cable Protection
Reinforced strain relief at connection
Armor Durability
2mm steel jacket impact resistance
Enhanced Specifications
- Bending Tolerance: 15° deflection at full length
- Resonance Frequency: >8 kHz in steel mounts
- Thermal Cycling: 500 cycles (-30°C to +150°C)
- Cable Strain Relief: 70N axial load rating
- Vibration Survival: 25g (20-2000 Hz)
Installation Guide
- Initial threads torque: 7.5 N•m (66 in•lb)
- Full engagement torque: 11.3 N•m (100 in•lb)
- Max engagement: 0.563″
- Avoid installation below -34°C
- Use support bracket for extensions >6″
Shipping & Warranty
- 12-month material/workmanship warranty
- Protective packaging for long probes
- Worldwide delivery: FedEx • UPS • DHL
- Express options available
Technical FAQ
Q: Maximum unsupported length?
A: 6″ without additional bracing
Q: Compatible with high-pressure washdown?
A: Yes, IP67 rating when properly installed
Q: Minimum clearance for installation?
A: 9.5″ from mounting surface to obstruction
Q: Vibration accuracy at full length?
A: ±2% deviation from standard probes
Model Comparison
| Feature | This Model | 330909-00-80-05-01-00 | 330909-00-80-05-02-05 |
|---|---|---|---|
| Cable Length | 1.0 meter | 0.5 meter | 0.5 meter |
| Connector Protector | Yes (01) | Yes (01) | No (02) |
| Approvals | None (00) | None (00) | Multiple (05) |
| Best Application | Deep installations | Short cable needs | Certified locations |
