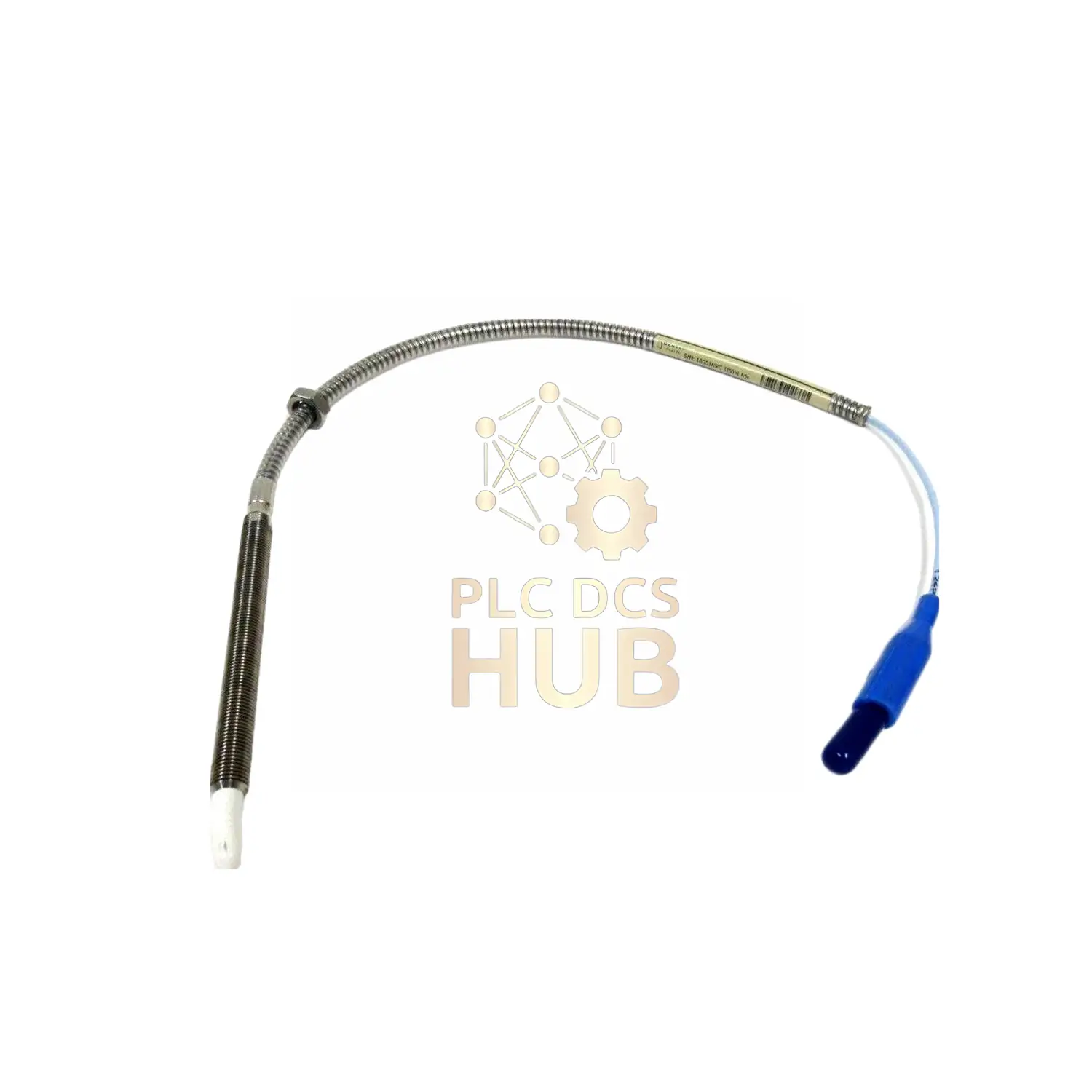

330909-00-80-10-01-05 Bently Nevada 3300 NSv Proximity Probes

Description

Bently Nevada Certified Long-Reach Armored Probe: Premium Industrial Sensing

Key Features

• Product No: 330909-00-80-10-01-05
• 8.0″ armored case with global certifications
• Connector protector for damage prevention
• Rated for -52°C to +177°C extremes
• Viton O-ring pressure sealing

Technical Specifications

• Product Code Structure:
  • Model Type: 330909 (Armored)
  • Threading: 00 (Fully threaded)
  • Dimensions: 80 (8.0 inch case)
  • Cable: 10 (1.0 meter length)
  • Connection: 01 (ClickLoc with protector)
  • Certifications: 05 (Multiple approvals)
• Electrical: 75Ω impedance | 4.2Ω ±0.5Ω DC resistance
• Protection: IP67 equivalent sealing
• Material: Marine-grade AISI304 stainless steel

Installation Guide

• Initial threads: Max 200 in-lb torque
• Final torque: Max 300 in-lb
• Critical: Maintain above -34°C
• Thread engagement limit: 0.563 inches

Shipping & Warranty

• Delivery: FedEx, UPS, DHL available
• Packaging: Certified probe, documentation
• Guarantee: 12-month quality assurance

FAQ

• Q: What certifications are included?
  A: Multiple global hazardous location approvals
• Q: Can I use this in explosive atmospheres?
  A: Yes, certified for Class I Div 1 areas
• Q: Is the connector waterproof?
  A: Weather-resistant with protector

Comparison Models

• Shorter Certified Probe (6.0in):
  330909-00-60-05-01-00
  • 6.0 inch armored case
  • Same connector protector
  • 5.0 meter cable
• Compact Certified Probe (2.0in):
  330909-00-20-05-01-00
  • 2.0 inch armored case
  • Same certifications
  • 5.0 meter cable
