Description

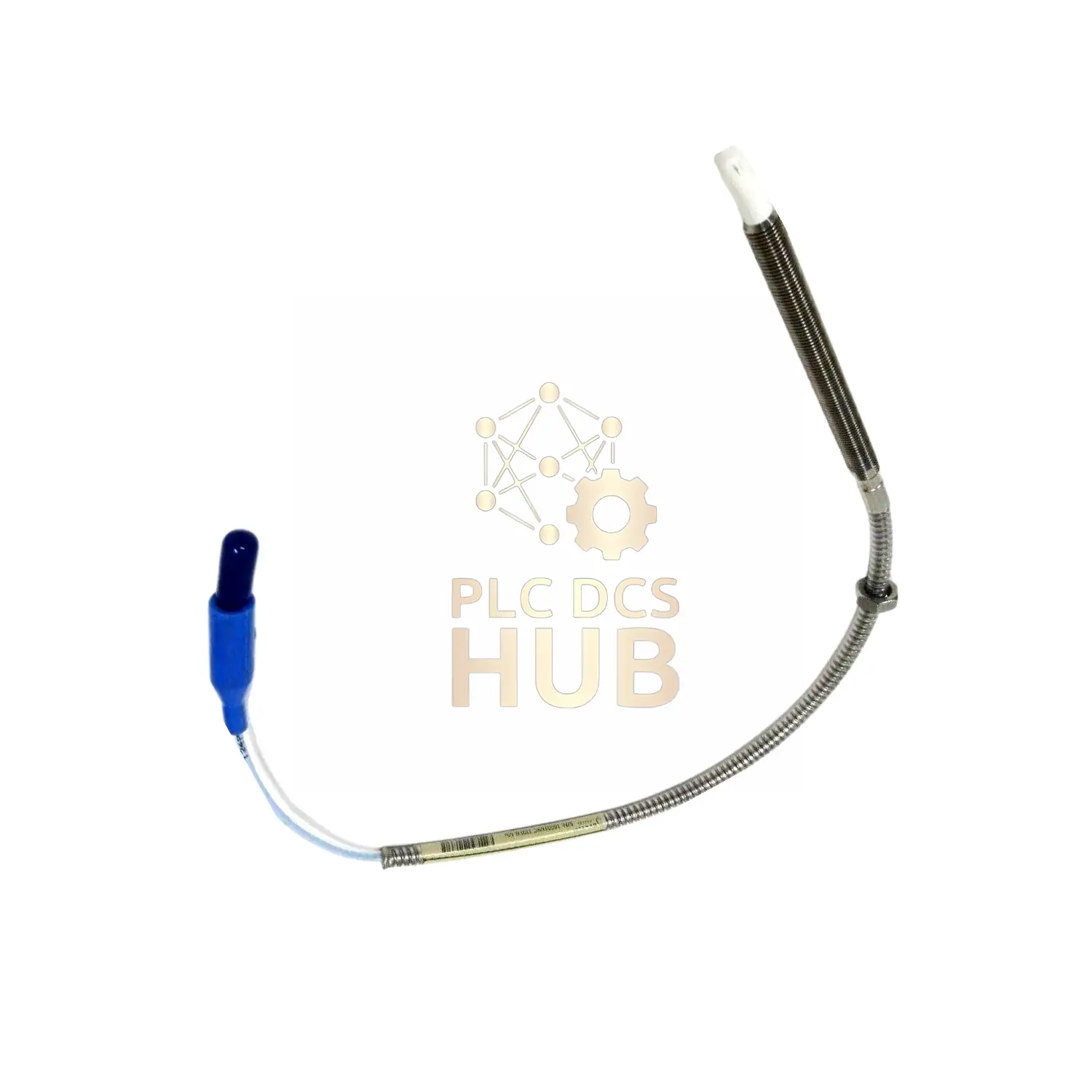

Extra-Long Armored Probe for Deep Machinery Monitoring
Product Highlights
Made in USA. Features an 8-inch armored case with protective connector cover. Model 330909-00-80-70-01-05 has multiple international certifications.
Model Suffix Breakdown
- Base: 330909 (Armored probe)
- Unthreaded: 00 (0 inches)
- Case: 80 (8.0 inches)
- Cable: 70 (7 meters)
- Connector: 01 (ClickLoc with protector)
- Approvals: 05 (Multiple certifications)
Technical Specifications
- Case Depth: 8.0 inches (deepest available)
- Thread Type: 3/8-24 UNF
- Cable Resistance: 5.9Ω ±0.9
- Max Temp: +177°C (351°F)
- Seal Type: Viton O-ring
- Vibration Rating: 10g @ 2kHz
Comparison with Similar Models
| Model | Case Length | Connector | Key Difference | Link |
|---|---|---|---|---|
| 330909-00-80-70-01-05 | 8.0″ | With protector | Multiple approvals | Current Model |
| 330909-00-80-70-02-05 | 8.0″ | Without protector | Basic connector | Same length |
| 330909-00-20-70-02-00 | 2.0″ | Basic | Short case | Compact design |
Installation Guide
- Initial Threads: Max torque 7.5 N•m
- Full Engagement: Max 0.563 inch depth
- Temp Warning: Avoid below -34°C (-30°F)
Certifications & Support
- Global Approvals: ATEX, IECEx, CSA
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL worldwide
