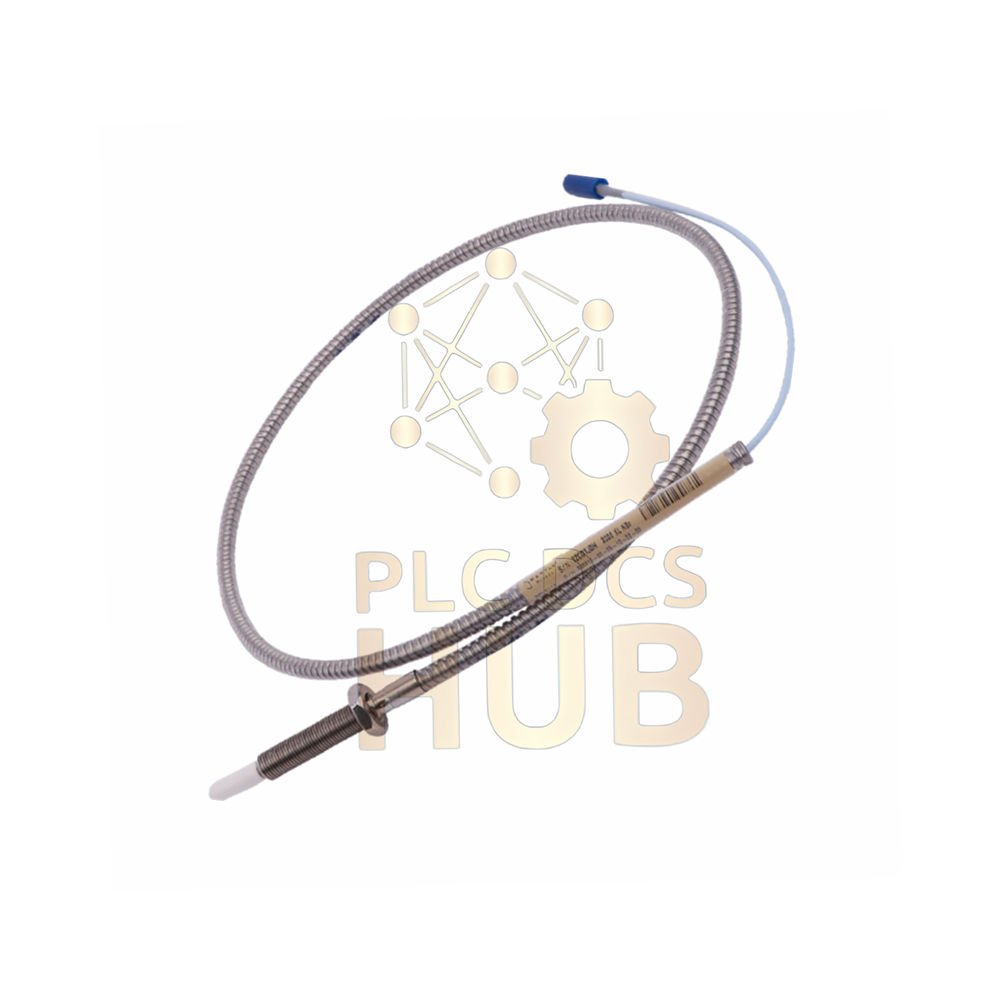

330910-06-13-10-01-CN | Bently Nevada 3300 NSv Proximity Probe 1.5mm Range

Description

Product Overview

• Bently Nevada 3300 NSv Proximity Probes – advanced eddy-current sensors for displacement & vibration monitoring.
  Browse NSv Probes
• Part number 330910-06-13-10-01-CN represents a metric armored probe with superior chemical resistance for process compressors.
• Fully interchangeable with legacy 3300 RAM probes and extension cables – simple retrofit.

Model Number Breakdown – Suffix Structure

• 330910 = Base model: 3300 NSv Probe, M10x1 thread, with stainless steel armor
  • -06 = Unthreaded Length Option: 60 mm
    • Select based on clearance from probe tip to machine surface
  • -13 = Overall Case Length Option: 130 mm
    • Determines how far probe extends into the mounting hole
  • -10 = Total Length Option: 1.0 meter (39 inches)
    • Cable length from probe tip to connector
  • -01 = Connector and Cable Type: Miniature coaxial ClickLoc with connector protector, standard cable
    • Provides secure quick-connect and protects connection point
  • CN = Agency Approval: Country Specific (China)
    • Certified for use in Chinese industrial installations

Technical Specifications

• brand & model
  • Manufacturer: Bently Nevada
  • Series: 3300 NSv (NSv Proximity Probes)
  • Full model: 330910-06-13-10-01-CN
• measurement range & sensitivity
  • Linear range: 1.5 mm (60 mils) – from 0.25 to 1.75 mm gap
  • Recommended gap setting: 1.0 mm (40 mils)
  • Incremental scale factor (ISF): 7.87 V/mm (200 mV/mil) ±12.5%/-20%
  • Deviation from best fit straight line (DSL): less than ±0.06 mm (±2.3 mils)
• frequency response & resolution
  • Frequency response: 0 to 10 kHz (+0 / -3 dB typical) with up to 305 m field wiring
  • Excellent resolution and repeatability for axial / radial position
• electrical characteristics
  • Probe DC resistance (1.0 m): 4.2 ±0.5 Ω (center to outer conductor)
  • Extension cable resistance: center 0.220 Ω/m, shield 0.066 Ω/m
  • Extension cable capacitance: 69.9 pF/m typical
  • Field wiring: 0.2‑1.5 mm² (16‑24 AWG), max. length 305 m between proximitor & monitor
• environmental & mechanical
  • Operating temperature: -52°C to +177°C (-62°F to +351°F)
  • Probe tip material: Polyphenylene sulfide (PPS); case: AISI 304 SST
  • Pressure: Viton O‑ring seals probe tip; designed for differential pressure applications
  • Minimum bend radius: 25.4 mm (1.0 in) – even with stainless steel armor
  • Vibration / shock rugged – meets industrial machine monitoring standards
• immunity & approvals
  • Agency approval: CN – country specific (China)
  • Temperature classification for hazardous areas: EPL Ga/Gc and Dc (T1‑T5 schedules)
  • Excellent EMI/RFI rejection due to shielded coaxial design

Installation & Mounting

• thread & torque guidelines
  • Probe case thread: M10x1 (or 3/8-24) – first three threads max. torque 22.6 N·m (200 in·lb), recommended 7.5 N·m (66 in·lb)
  • Connector‑to‑connector torque (probe case): max 33.9 N·m (300 in·lb), recommended 11.3 N·m (100 in·lb)
  • Finger‑tight recommended, never exceed 0.56 N·m (5 in·lb) on probe tip
• target & positioning
  • Minimum flat target diameter: 8.9 mm (0.35 in) – recommended 13 mm (0.5 in)
  • For shafts < 13 mm, adjust gap to limit scale factor change (see Figure 12)
  • Maximum thread engagement: 0.563 in (for 3/8-24 case)
• wiring & connectors
  • Connector: miniature coaxial ClickLoc with connector protector
  • Use three‑conductor shielded triad cable for field wiring
  • Maximum field wiring length 305 m (1000 ft) – check frequency‑response graphs for signal rolloff

Compatibility & Interchangeability

• Fully compatible with Bently Nevada 3300 RAM probes and extension cables – mechanical and electrical match.
• Works with all 3300 XL NSv Proximitor Sensors and standard monitor systems (3500, 1900, etc.).
• Accepts both metric and imperial mounting hardware (M10x1 / 3/8-24).

Diagnostic Capabilities & Applications

• typical applications
  • Radial vibration and axial position monitoring in turbines, compressors, pumps, motors
  • Process compressor trains requiring high chemical resistance
  • Clearance measurement in bearings, thrust monitoring, eccentricity, speed/phase reference
• diagnostic value
  • Detects shaft misalignment, unbalance, rub, and mechanical looseness
  • Continuous DC gap voltage indicates thrust wear or position shift
  • Side‑view design simplifies visual gap verification

Frequently Asked Questions (FAQ)

• What is the difference between NSv and the old 3300 RAM probe?NSv offers increased chemical resistance and better side‑view characteristics. Electrically and mechanically interchangeable.
• Can I use this probe with my existing 3300 extension cable?Yes – it is fully compatible with previous 3300 RAM extension cables and Proximitors.
• What is the recommended torque for the probe tip?Finger‑tight only (max 0.56 N·m). Overtightening may damage the PPS tip.
• Which field wire gauge should I use for long runs?Use 0.2‑1.5 mm² (16‑24 AWG) triad shielded cable. For runs > 300 m, verify signal rolloff graphs.
• Is this probe suitable for hazardous areas?Yes – it has temperature classifications T1‑T5 for EPL Ga/Gc and Dc. Check the temperature schedule for specific zone.
• Experience: how to choose the correct unthreaded length?For most 1 m cable assemblies, -06 (60 mm) provides ample clearance. For limited space, select shorter option.
• Buying guide: 330910-06-13-10-01-CN vs other suffixes-06 = 60 mm unthreaded, -13 = 130 mm case, -10 = 1.0 m cable, -01 = ClickLoc, CN = China approval. Select based on your mounting depth and cable routing.

Package & Warranty

• condition: New & Original in factory sealed packing
• warranty: 12 months from delivery, covering material and workmanship defects
• shipping: Fast courier FedEx, UPS, DHL – worldwide tracked service
• included: One 3300 NSv probe with integrated armor, connector protector, factory test certificate (if applicable)
• Approx. weight: 14‑150 g (0.5‑5.3 oz) depending on length
