3500/15 127610-01 | Bently Nevada Power Supply Module

Description

???? Overview

The Bently Nevada 3500/15 AC Power Supply Module (127610-01) is engineered for the 3500 Series Machinery Protection System, ensuring stable and uninterrupted power for industrial applications. This module has reached the end of production, with the 106M1079-01 Universal AC Power Supply serving as its replacement.

???? Technical Data

• Brand & Model: Bently Nevada 3500/15 (127610-01)
• Input Voltage: 110-220V AC nominal (85-264V AC RMS, 120-373V AC peak)
• Input Frequency: 47-63 Hz
• Full Rack Current Draw: 2.8 A RMS (max)
• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: Up to 95%, non-condensing
• Weight: 1.39 kg (3.06 lb)
• Dimensions (Height x width x depth)
  120.7 mm x 50.8 mm x 251.5 mm
  4.75 in x 2.0 in x 9.9 in
• Certifications: EN 61000-6-2, EN 61000-6-4, EN 61010-1, EMC Directive 2014/30/EU, LV Directive 2014/35/EU

???? Rack Installation & Compatibility

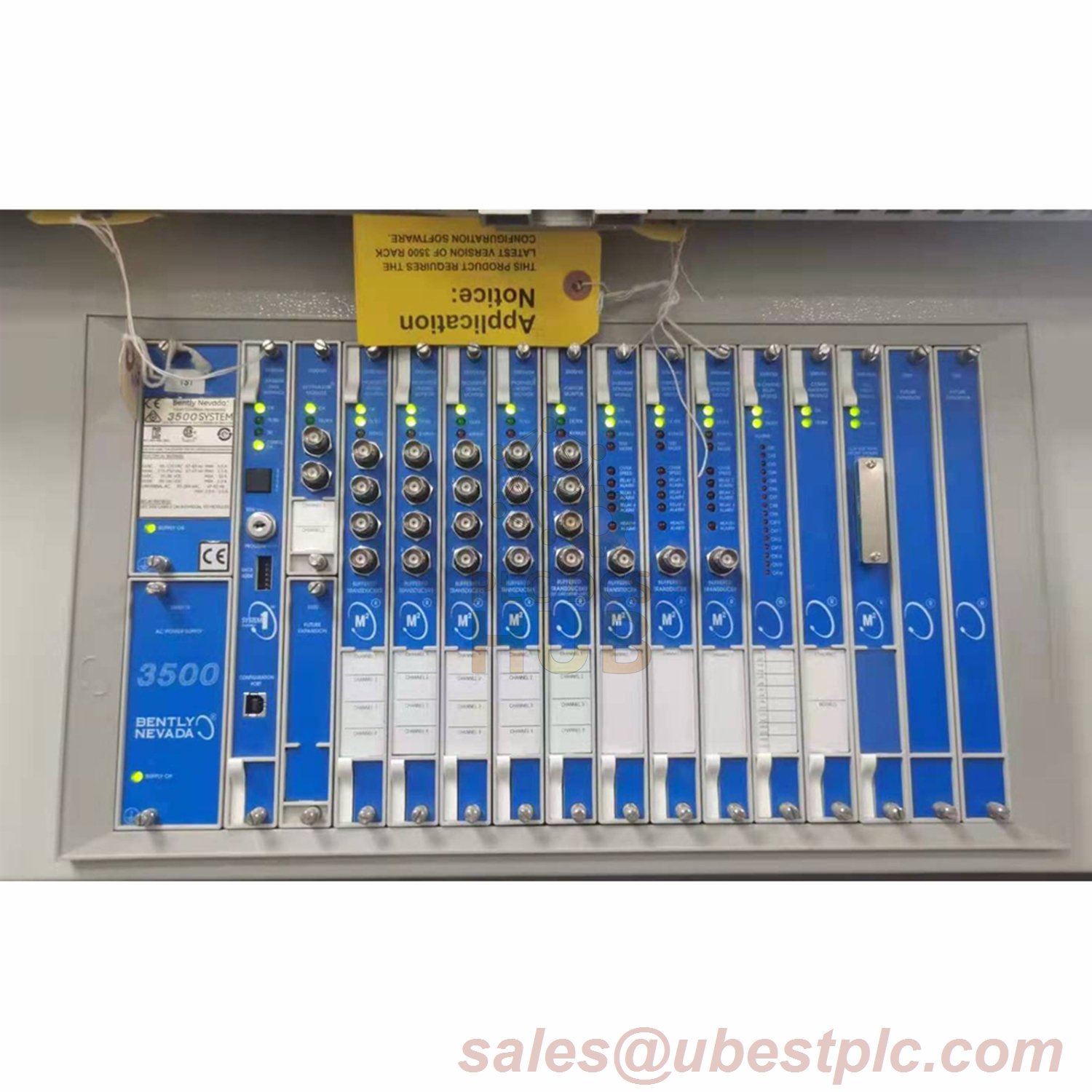

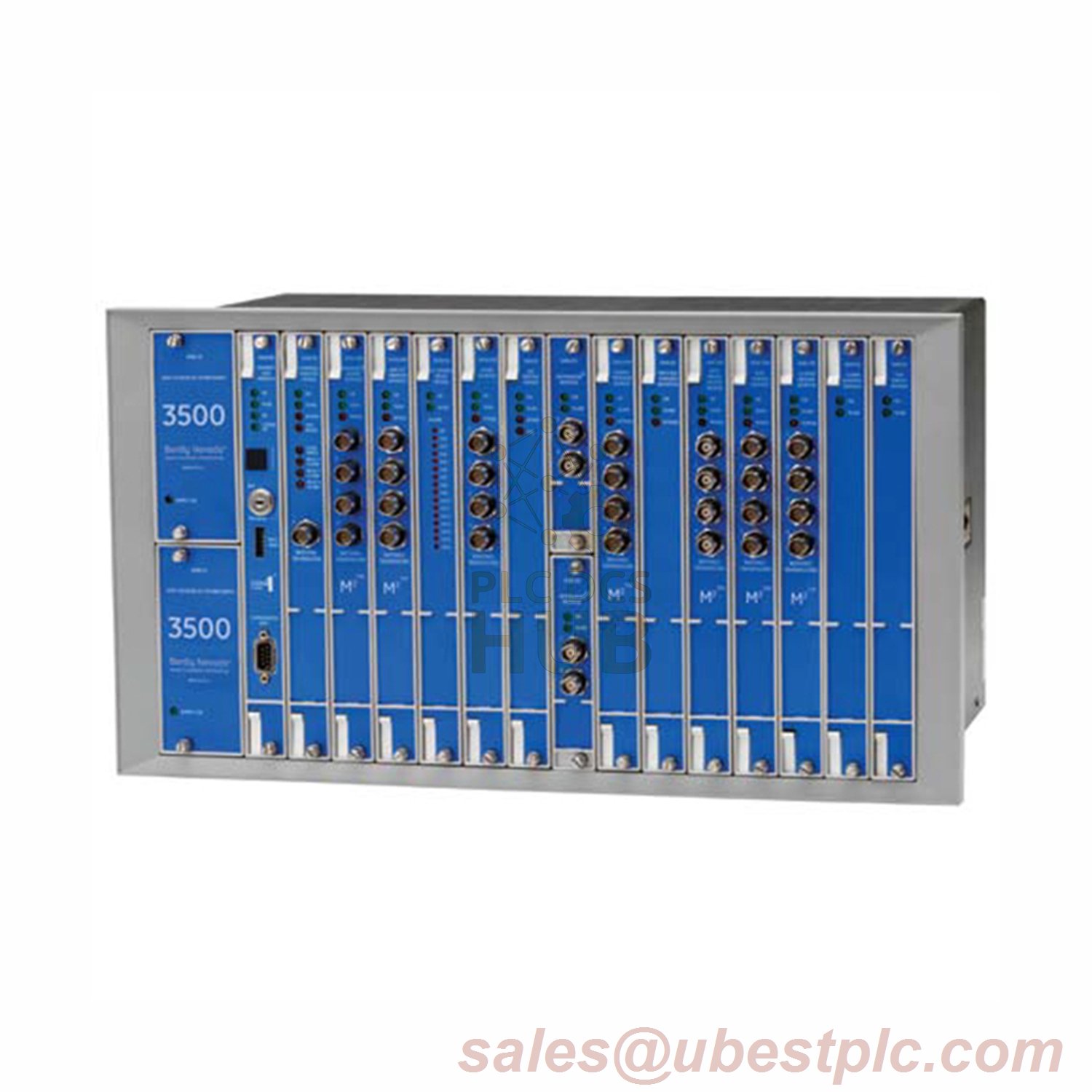

• Occupies two half-height slots on the left side of the rack
• Supports redundant configuration for system reliability
• Not compatible with legacy High Voltage AC or Low Voltage AC units

❓ FAQ

• Q1: Can I use the 3500/15 (127610-01) with older AC power modules?
  A: No, it is only compatible with the universal AC Power Input Module, not legacy high or low voltage units.
• Q2: What happens if the power supply fails?
  A: The system supports redundant power supplies for failover protection, minimizing downtime.
• Q3: How do I know if the power module is working correctly?
  A: The Supply OK LED on the front panel indicates proper operation.

Click the official datasheet to discover more details:3500-15 AC and DC Power Supplies Datasheet
