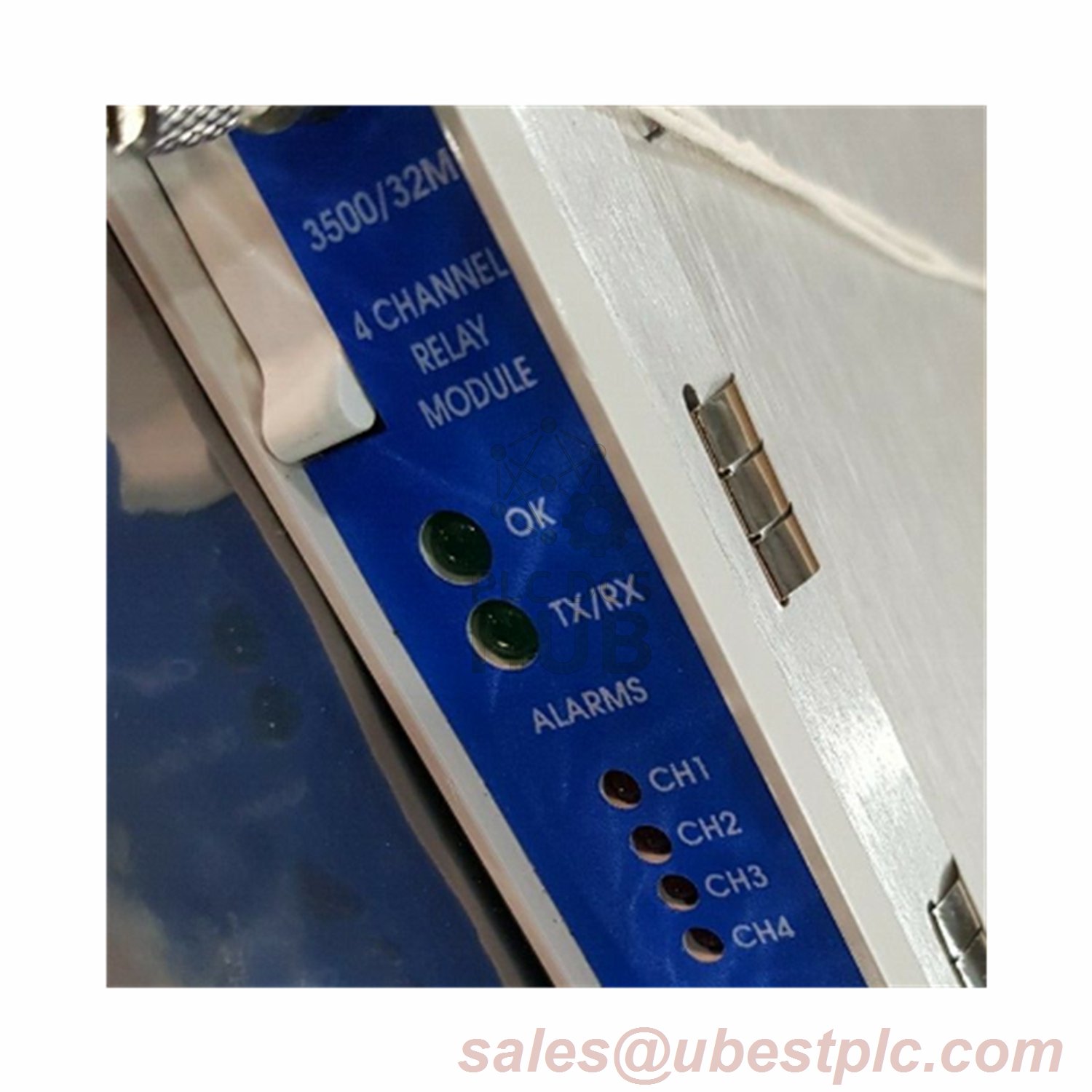

Bently Nevada 3500/32-01-00 Relay Module Product Overview
The Bently Nevada 3500/32-01-00 Relay Module is designed to offer reliable control and monitoring of industrial processes. It is equipped with four channels for efficient relay output functions, making it an ideal solution for automation systems. This module provides both DC and AC relay capabilities, offering flexibility for a wide range of applications. With its robust design, the 3500/32 Relay Module is suitable for demanding environments where safety and efficiency are crucial.
Technical Data & Specifications
| Feature | Value |
|---|---|
| Brand | Bently Nevada |
| Model | 3500/32 – 4-Channel Relay Module |
| Suffix | -01 – 4-Channel Relay I/O Module |
| Power Consumption | 5.8 Watts (typical) |
| Minimum Switched Current (DC) | 100 mA @ 12 Vdc |
| Maximum Switched Current (DC) | 2 A @ 0V to 30 Vdc, 0.75 A @ 48 Vdc, 0.2 A @ 125 Vdc |
| Maximum Switched Voltage (DC) | 125 Vdc |
| Maximum Switched Voltage (AC) | 250 Vac |
| Maximum Switched Current (AC) | 2 A |
| Maximum Switched Power (AC) | 450 VA |
| Agency Approval Option | -00 – None |
