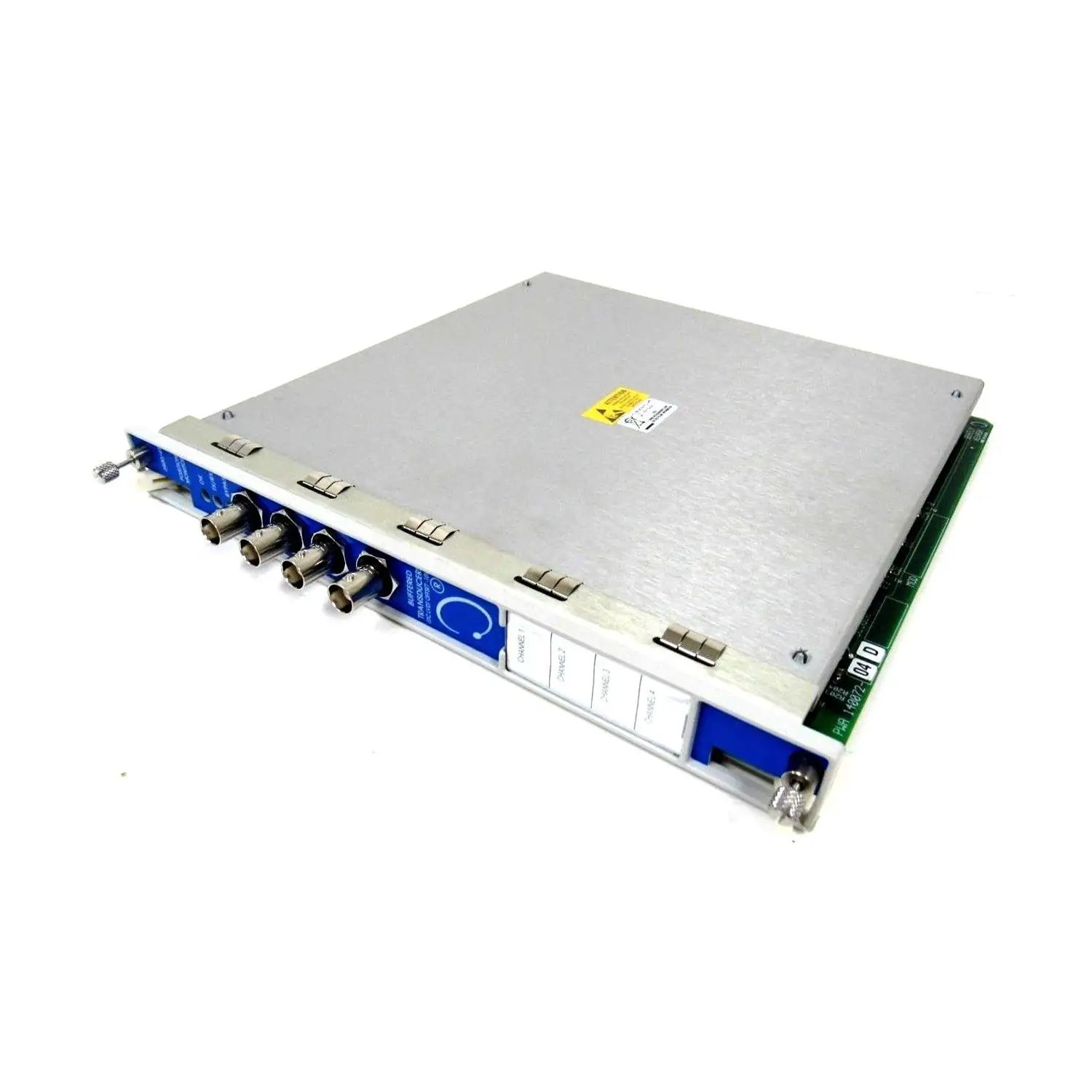

3500/42M-09-00 Bently Nevada Proximitor Seismic Monitor

Description

Bently Nevada Proximitor Seismic Monitor

A multi-channel vibration monitoring solution (Model Number:3500/42M-09-00) for industrial machinery, combining proximity, velocity, and acceleration inputs with -24 Vdc power supply and ±0.33% accuracy.

Technical Specifications

• Brand: Bently Nevada
• Model: 3500/42M-09-00
• Suffix Decoder:
  -09 (Prox/Velom I/O Module) |
  -00 (Approvals Not Required)
• Input Channels: 1-4 proximity/velocity/acceleration signals
• Power: 7.7W typical @ -24 Vdc
• Input Impedance: 10 kΩ

Output Characteristics

• Output Impedance: 550 Ω / 300 Ω (Shaft Absolute)
• Recorder Output: 4-20 mA linear signal
• Transducer Supply: -24 Vdc ±5%

Performance Metrics

• Accuracy:
  ±0.33% full-scale (typical) |
  ±1% (max, excluding filters)
• Operating Temp: -20°C to +65°C
• Humidity Tolerance: 0-95% non-condensing

Model Configuration Codes

• A: I/O Module Type: 09 = Prox/Velom with internal terminations
• B: Approvals: 00 = No hazardous area certification

System Integration

• Compatible Sensors: 3300 XL Probes, 1900/65 Velomitors
• Recommended Spares:
  176449-02 (Monitor chassis) |
  140471-01 (I/O Module)

Certifications

• CSA/NRTL/C compliant for industrial use
• ATEX/IECEx compatibility via external barriers

Why This Model?

• 4-20 mA output for PLC/DCS integration
• Dual impedance outputs for flexible cabling
• Wide -20°C to +65°C operational range

Contact: For technical drawings or bulk orders, email sales@ubestplc.com.
