Description
Product Overview

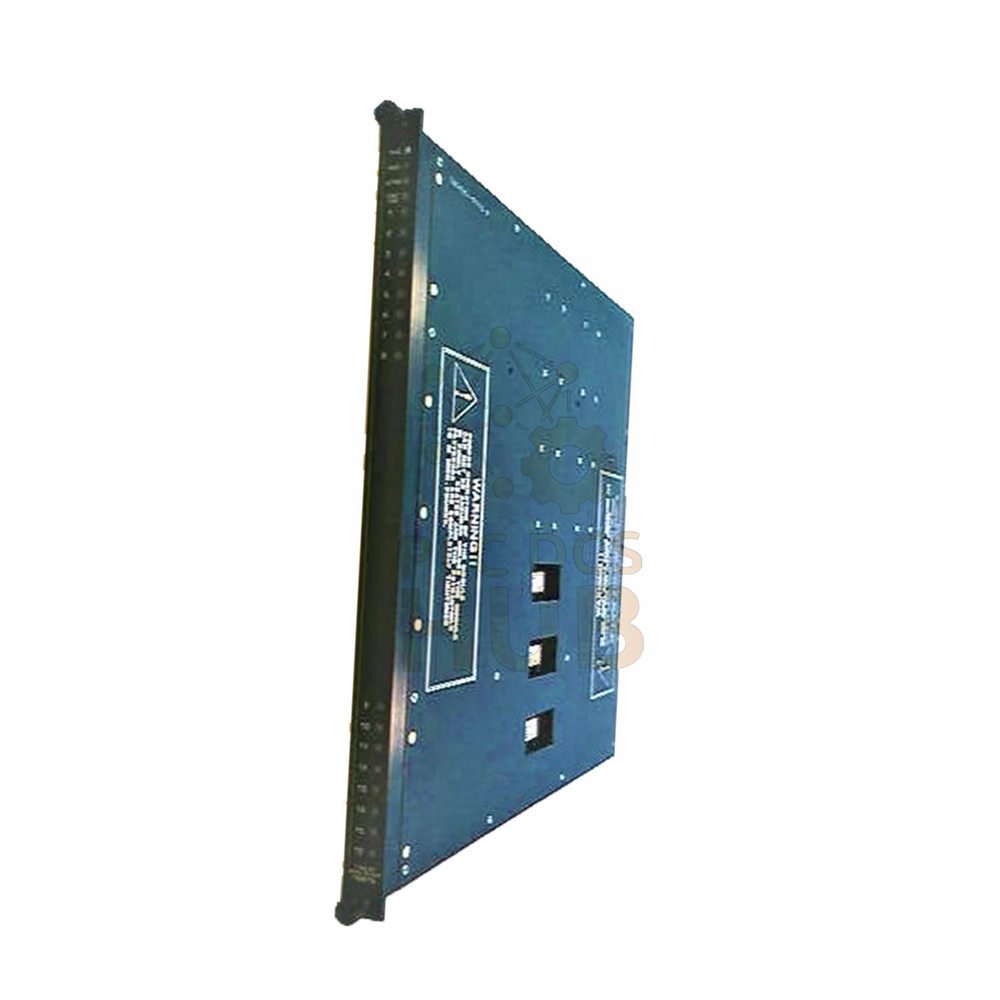

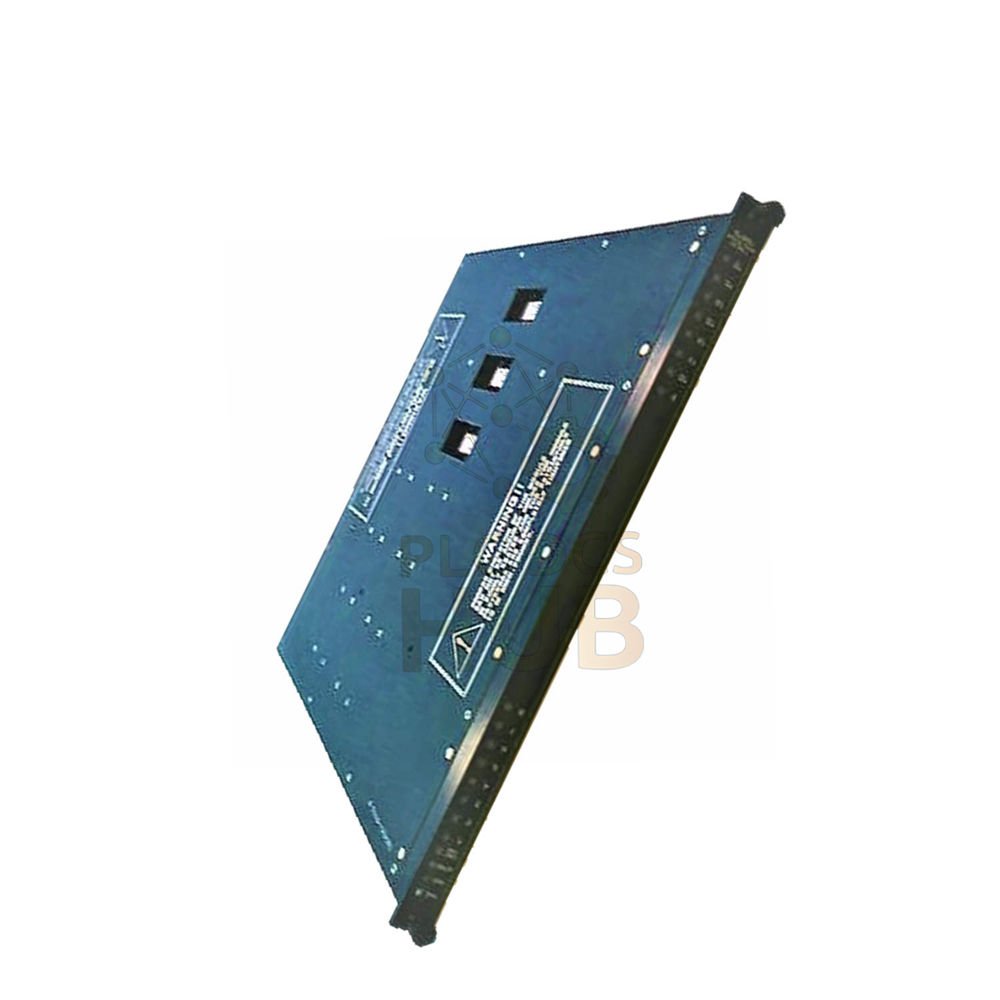

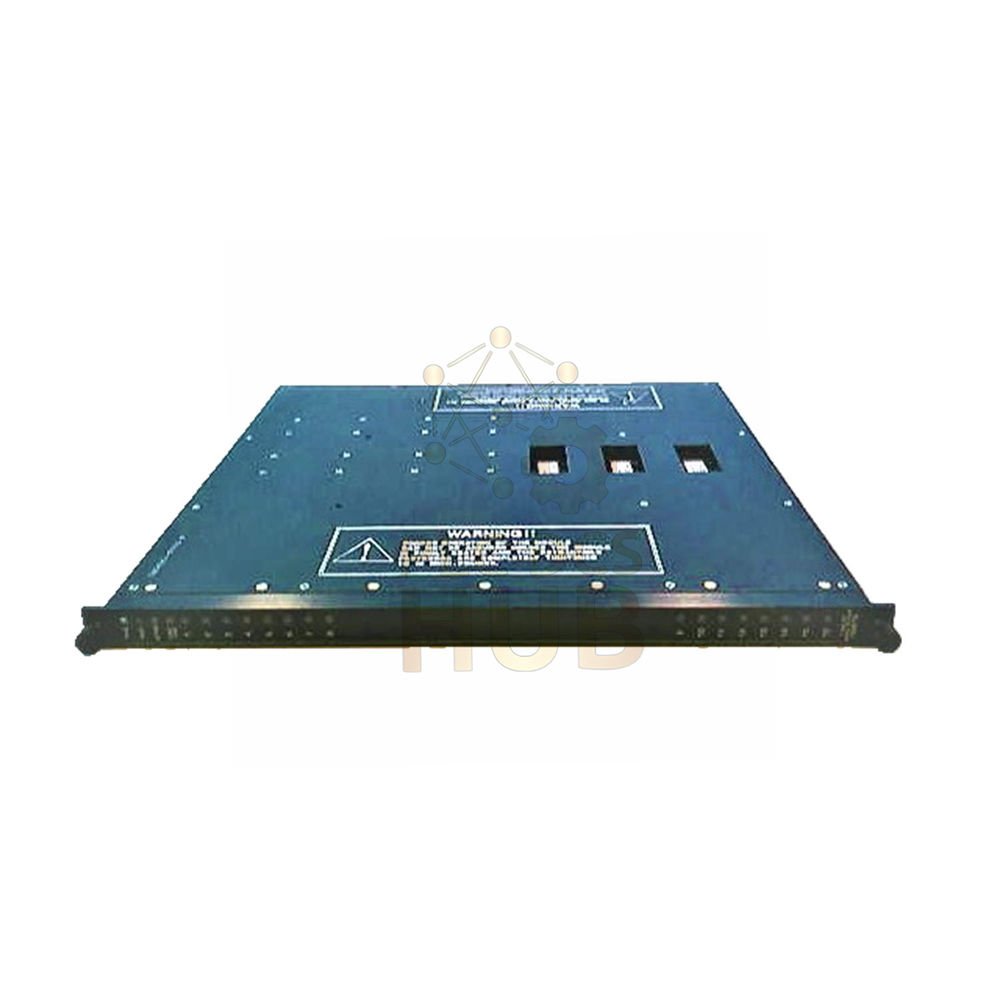

The Triconex 3601E offers opto-isolated outputs. This protects the control system from electrical noise and field faults. It is widely used in oil and gas plants, power systems, and industrial safety shutdown systems.
Key Features
- Designed for Tricon safety control systems
- Triple Modular Redundant (TMR) architecture
- 16 digital output channels
- Opto-isolated signal protection
- Stable AC output switching
- High noise immunity
- Industrial-grade reliability
- Easy system integration
General Specifications
| Brand | Triconex |
|---|---|
| Model | 3601E |
| Product Type | Digital Opto-Isolated Output Module |
| Technology | TMR Digital Output |
| Country of Origin | United States |
| Dimensions | 49 × 45.3 × 6.8 cm |
| Weight | 4.8 kg |
Electrical Specifications
| Nominal Voltage | 115 VAC |
|---|---|
| Operating Voltage Range | 80 – 155 VAC |
| Frequency Range | 47 – 63 Hz |
| Output Channels | 16 Points |
| Isolation | Opto-Isolated, Non-Commoned |
| Maximum Output Current | 2 A per channel |
| Response Time | <10 ms typical |
| Isolation Voltage | Up to 1500 V |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% – 95% non-condensing |
Product Advantages
- High System Safety
Triple modular redundancy ensures stable operation in safety systems. - Electrical Isolation
Optical isolation protects the controller from field voltage interference. - Stable Industrial Output
Designed to control relays, valves, and shutdown systems. - Reliable Operation
Industrial components ensure long service life. - Easy Replacement
Standard Tricon module design simplifies maintenance.
Warranty
All modules include a 12-month warranty.
>Each unit is tested before shipment to ensure stable performance.
Shipping Method
- FedEx
- UPS
- DHL
All products are packed securely to ensure safe international delivery.
FAQ – Professional Support
How can I verify compatibility with my Tricon system?
Check the controller model and supported I/O modules list in the system manual.
What devices are normally connected to this output module?
Typical loads include relays, actuators, shutdown valves, and alarm systems.
Why is opto-isolation important in industrial control?
It separates field circuits from control electronics and prevents damage from voltage spikes.
